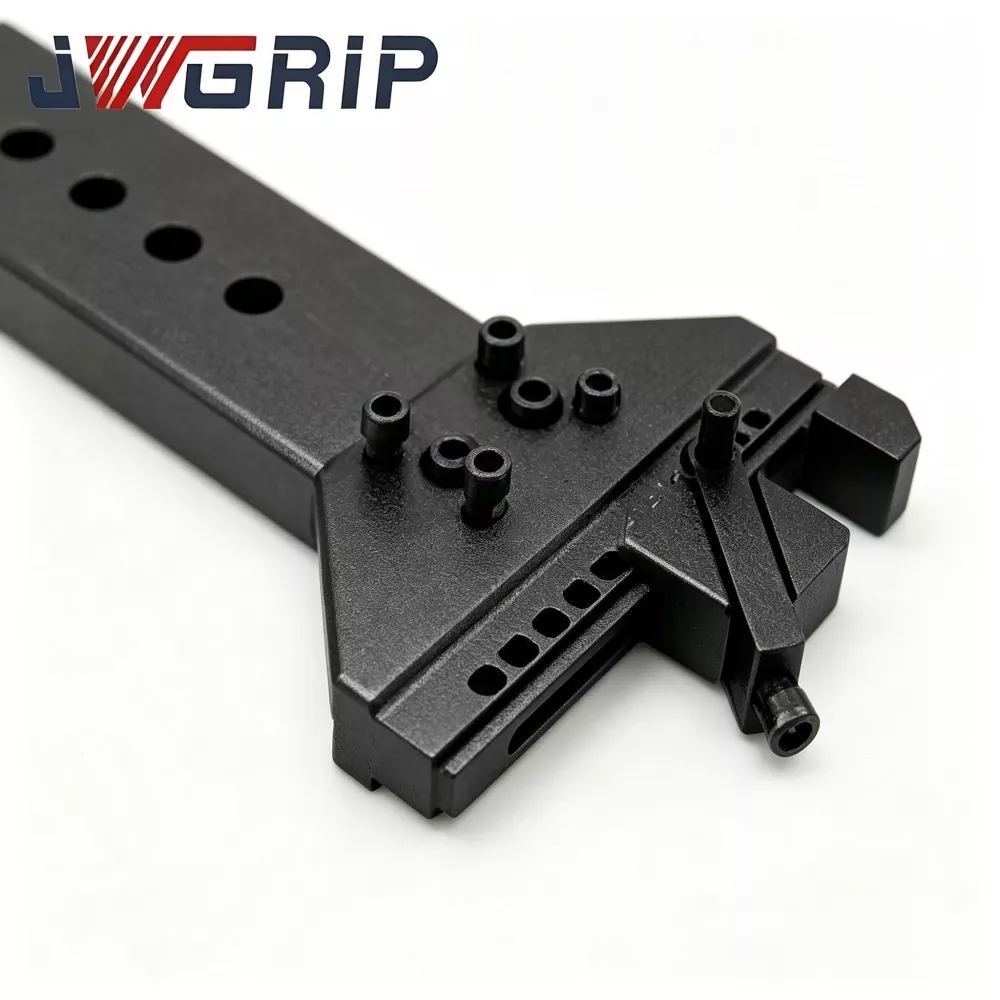

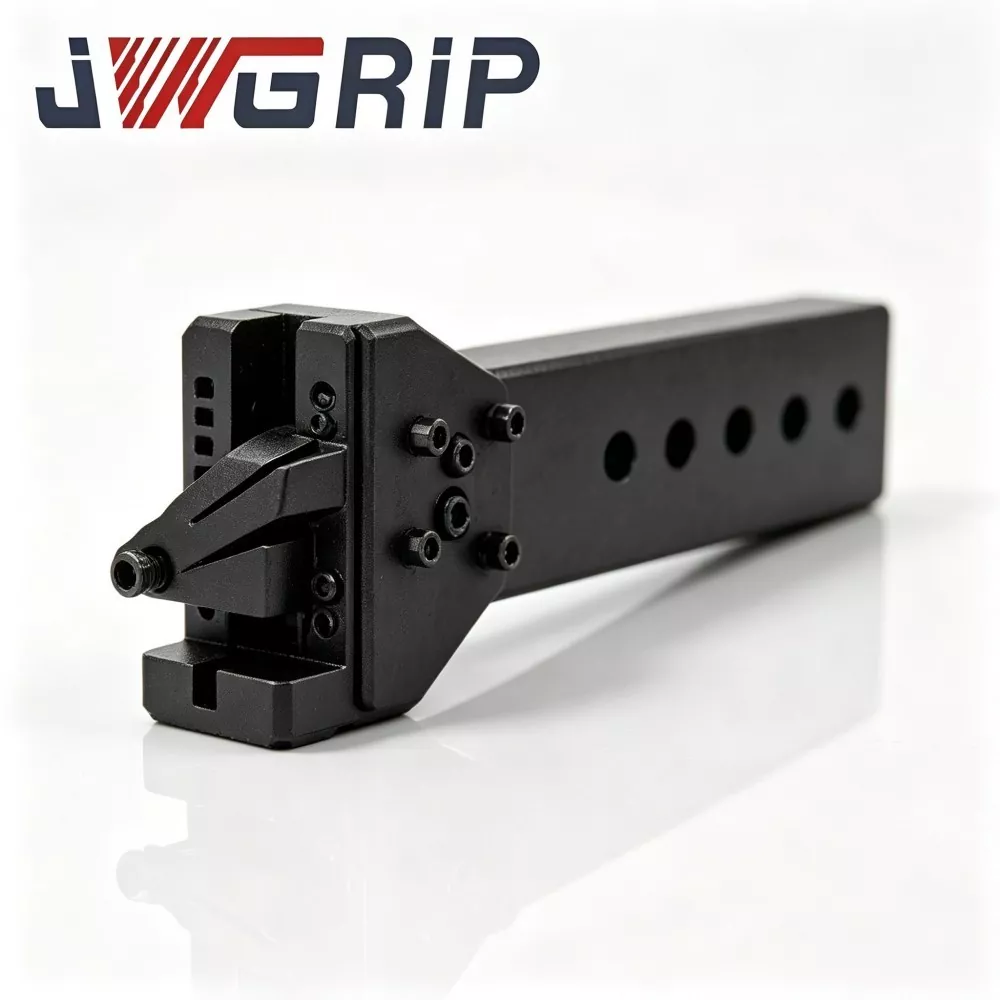

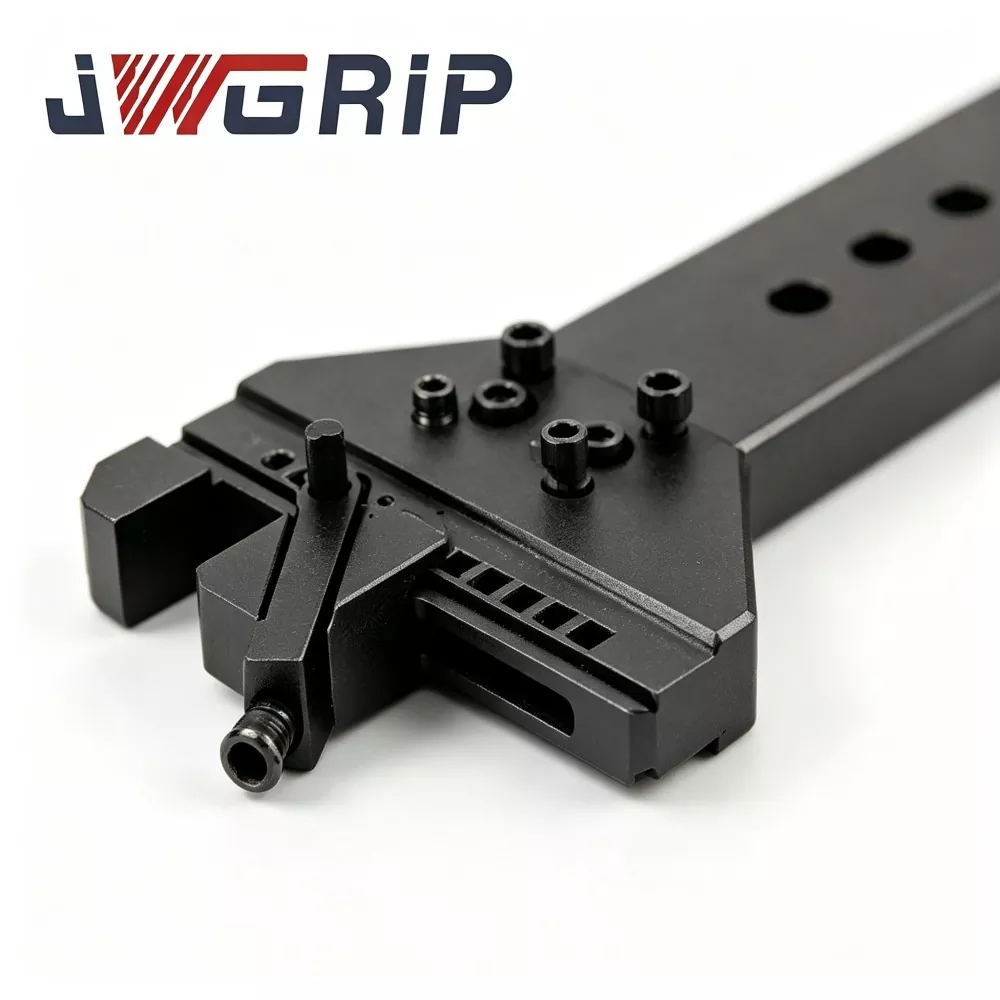

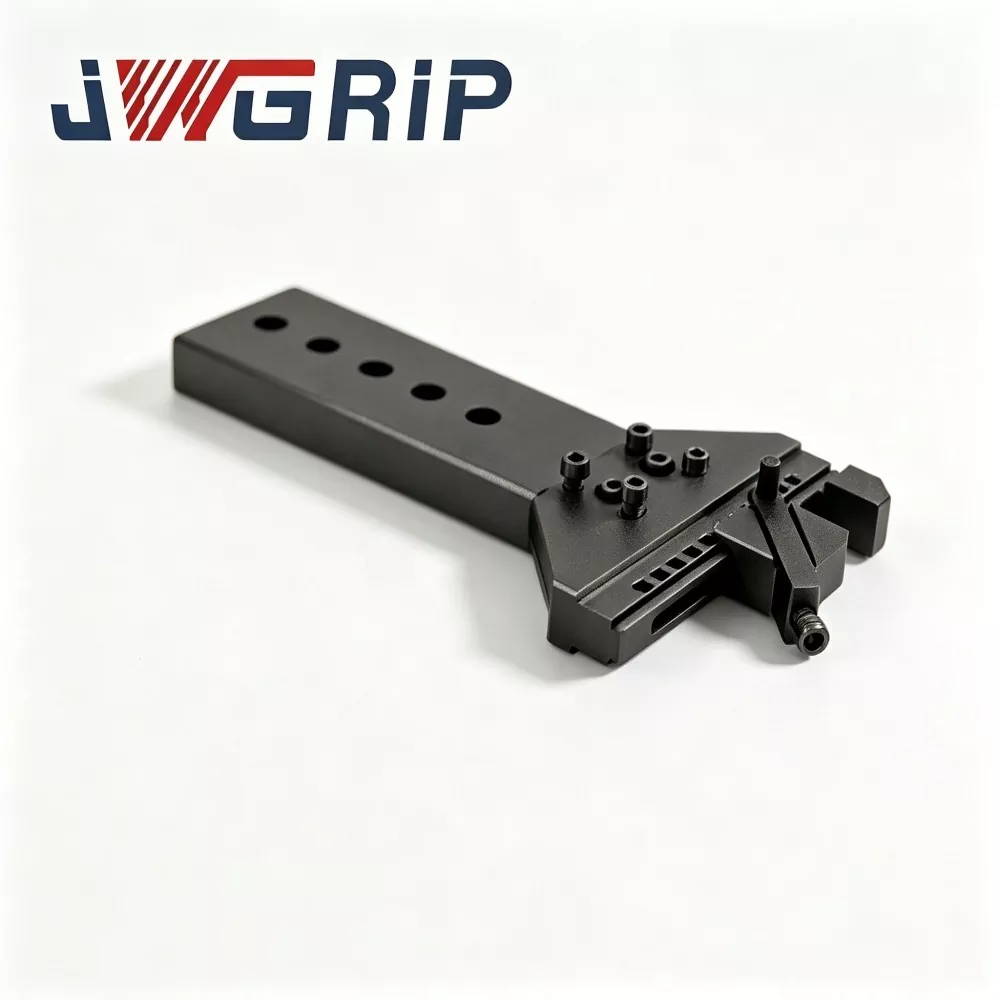

Wire EDM Vise for Precision Workholding

This high-repetition-accuracy Wire EDM Vise is fabricated from premium cryogenically stabilized pre-hardened alloy steel, processed through strict stress-relief tempering, multi-axis CNC machining and full-surface ultra-precision grinding technology. The upgraded jaw-reinforced anti-deflection architecture effectively resists clamping deformation and parallelism deviation caused by long-duration sustained clamping force and continuous dielectric fluid erosion. Wire EDM Vise for Precision Workholding maintains ultra-stable parallel clamping performance during long-hour submerged wire-cut cycles, greatly reducing workpiece micro-shift, twisting and dimensional distortion of thin-wall, tiny-size and hard-alloy precision parts.

Different from ordinary vises prone to aging deformation and accumulated positioning errors in underwater working conditions, it significantly lowers the scrap rate of high-precision stamping die inserts, tooling components and intricate wire-cut workpieces. Widely applicable to precision die manufacturing and delicate component batch production, it provides long-cycle stable and high-consistency professional workholding solutions for modern wire EDM workshops.

Hidden Quality Defects

 Wire-EDM workshops frequently produce high-value thin-wall stamping inserts, miniature mold components and carbide parts. Many process engineers encounter a tricky, hard-to-trace quality issue:

· Even with qualified raw blanks and optimized machine parameters, finished workpieces still show unpredictable micro-twist, angular deviation or inconsistent cutting clearance.

· A large share of these defects stem from ordinary general-purpose vises not optimized for submerged dielectric-fluid environments. Under clamping load, conventional vises generate invisible jaw tilting; sliding-surface clearance wear slowly accumulates inside the dielectric-fluid tank.

· These unseen clamping errors get transferred directly onto wire-cut contours. For parts requiring ±0.003-±0.005 mm tight tolerances, vise-induced clamping deformation directly causes workpiece scrap and heavy economic losses for mold-and-tool manufacturers.

Design Philosophy

JWGRIP Wire EDM Vise for Precision Workholding is purpose-built to resolve real-world submerged wire-cut clamping pain-points.

①　Drawing on global customer field data as JWGRIP factory-direct exporter, multiple prototype revisions completed continuous submerged clamping aging testing before mass-production release.

②　Operators can mount this vise directly on wire-EDM machine worktables or auxiliary fixture bases. Standard opening-stroke fits mainstream small-to-medium workpiece dimensions.

③　Beyond standard specs, JWGRIP OEM service manufactures custom jaw geometry and mounting layouts according to customer technical drawings for special automated wire-EDM fixture configurations.

Core Functional Definition

JWGRIP Wire EDM Vise for Precision Workholding is a dedicated high-precision mechanical clamping fixture engineered exclusively for submerged wire-cut electrical-discharge machining. It secures block-shaped, bar-shaped and irregular-profile small-to-medium workpieces inside wire-EDM dielectric-fluid tanks. Its reinforced-jaw structural design suppresses jaw deflection under real-world clamping load and maintains favorable parallel-clamping status under partial-clamping or full-jaw-contact scenarios.

Milling-machine vises primarily withstand dynamic cutting-force impact. By contrast, wire-EDM vises bear almost no heavy cutting load; its main challenge consists of long-time dielectric-fluid immersion plus micro-stress deformation originating from static clamping force. Many off-the-shelf general-purpose vises ignore this operating feature and gradually develop jaw tilt after repeated clamping cycles.

Product Feature Highlights

1. Cryogenically-stabilized Pre-hardened Alloy-steel Main-body After rough-machining, main-body undergoes cryogenic treatment plus multi-round stress-relief tempering to remove most internal residual stress. Within 16-31 ℃ workshop temperature scope, base-datum flatness variation ≤0.0028 mm, preventing datum distortion caused by ambient-temperature fluctuation.

2. Reinforced Anti-deflection Jaw Construction Movable jaw adopts integrated inner-rib strengthening. Jaw-tip deflection is strictly controlled under recommended clamping torque. Jaw clamping surfaces receive ultra-precision grinding: jaw-surface flatness ≤0.002 mm, jaw-to-jaw parallelism ≤0.003 mm.

3. Hardened Anti-corrosion Sliding-guide Surfaces Guide-way mating surfaces receive local high-energy surface hardening followed by full passivation anti-rust finish. It delivers wear-resistance and dielectric-fluid-erosion resistance for long-term submerged-working environments.

4. Precision-ground Reference-base Surface Bottom mounting datum is fully ultra-precision ground, supplying reliable mounting reference when vise is fitted onto wire-EDM worktables or auxiliary fixture plates.

5. Standard-range Opening Stroke & Flexible OEM Customization Standard opening range fits most small-medium wire-EDM blanks. Supported OEM modifications include jaw width, maximum opening travel and base-mounting-hole pattern for special fixture-layout requirements.

6. Full-batch Quality Traceability Every finished JWGRIP vise carries laser-engraved unique serial number. Complete inspection datasets of flatness, jaw parallelism and jaw-deflection test are archived for quality management of large-scale precision-tooling workshops.

Manufacturing Workflow

 Each JWGRIP Wire EDM Vise production batch strictly executes full-process controlled manufacturing steps:

1. Incoming raw-material composition & hardness inspection

2. CNC rough milling for main-body and jaw

3. Cryogenic stabilization treatment

4. Multi-cycle stress-relief tempering

5. Semi-finish machining

6. Jaw inner-rib forming

7. Guide-way local surface hardening

8. Multi-face ultra-precision grinding (jaw surfaces, base datum, guide-way mating faces)

9. Screw-thread & mounting-hole finish-machining

10. CMM multi-item geometric inspection

11. Simulated clamping-jaw deflection test

12. Submerged cyclic aging simulation test

13. Laser serial-number marking

14. Global passivation anti-corrosion treatment

15. Final visual + dimensional recheck

16. Finished-product warehousing

Quality Validation

Every production batch of JWGRIP Wire EDM Vise undergoes multi-dimensional quality validation:

raw-material test, hardness inspection, base-datum flatness & jaw-parallelism measurement, simulated-clamping jaw-deflection test, submerged cyclic-aging simulation test and surface anti-corrosion performance check.

All measuring instruments stay inside valid calibration cycles. Batch inspection reports are archived for traceability. Custom-modified vises receive extra special-feature inspection items according to customer drawing specs before shipment.

Competitive advantage

Numerous general-purpose vises circulating on market are originally engineered for dry-cut milling scenarios, without jaw-reinforced rib structure and dielectric-fluid-resistant surface finishing. Many manufacturers skip cryogenic-stabilization procedures for cost reduction.

1. Jaw anti-deflection capability: Conventional vises generate obvious jaw-tip deflection under moderate clamping torque. JWGRIP inner-rib-reinforced jaw suppresses tip-deflection under static clamping load for submerged wire-EDM conditions.

2. Submerged-environment durability: Most competing vises’ sliding-guides only receive ordinary quenching; micro-rust and abrasive-wear appear after long-time dielectric-fluid immersion. JWGRIP local surface-hardening plus passivation enhances wear-resistance and anti-corrosion under tank-submerged conditions.

3. Internal-stress-release technique: Many rivals omit cryogenic stabilization; residual-stress slowly releases under temperature cycling and triggers datum-flatness drift. JWGRIP cryogenic processing plus multi-round tempering minimizes residual-stress and preserves long-term geometric stability.

4. Inspection coverage: Many suppliers merely perform simple dimensional spot-check. Each JWGRIP vise completes CMM multi-item geometry inspection and simulated-clamping jaw-deflection test. Custom-order vises also get dedicated-feature validation.

5. Customization capacity: Most factories can only deliver fixed-standard opening-size vises. JWGRIP factory-direct workflow supports jaw-width, opening-stroke and mounting-hole-pattern modification for special-purpose wire-EDM fixture-cell projects.

FAQ

Q1: Can JWGRIP Wire EDM Vise eliminate all workpiece-twist defects during wire-cut processing?

A: This vise greatly lowers clamping-induced jaw-tilt-twist risk. Nevertheless workpiece twist may also come from blank internal residual-stress release during material erosion. The vise cannot offset material-source deformation. Pre-stress-relief for blanks remains essential for thin-wall high-precision wire-EDM workpieces.

Q2: Can this vise be applied for heavy-cutting milling-machine tasks?

A: JWGRIP Wire EDM Vise is optimized for static submerged wire-EDM clamping conditions. It is not designed to sustain powerful dynamic milling cutting-impact loads. Please select dedicated milling vise models for heavy-cut milling applications.

Q3: If non-standard jaw width, special opening-stroke and custom-mounting-holes are needed, do you support custom manufacturing?

A: Yes. Please submit complete technical drawings specifying jaw dimension, maximum opening travel, mounting-hole layout and tolerance requirements. Our engineering department completes manufacturability assessment and provides formal quotation feedback within 12 working-days.

Q4: Which failure conditions are covered under product warranty?

A: JWGRIP Wire EDM Vise for Precision Workholding is high-precision submerged-environment workholding fixture. Warranty applies to manufacturing-origin defects existing upon delivery: out-of-spec jaw parallelism or base-datum flatness. Damages caused by hammer striking, over-torque clamping, long-time tank soaking without maintenance and natural sliding-surface wear are excluded from warranty coverage.
