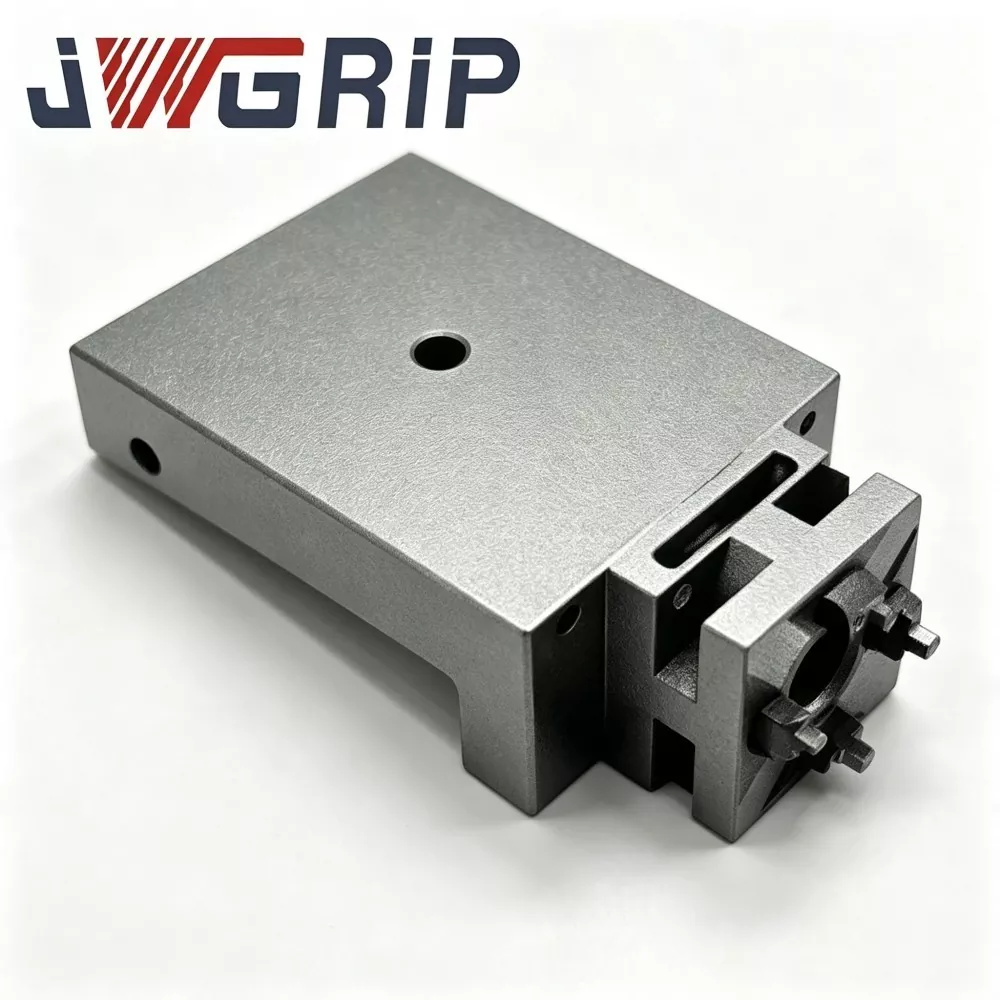

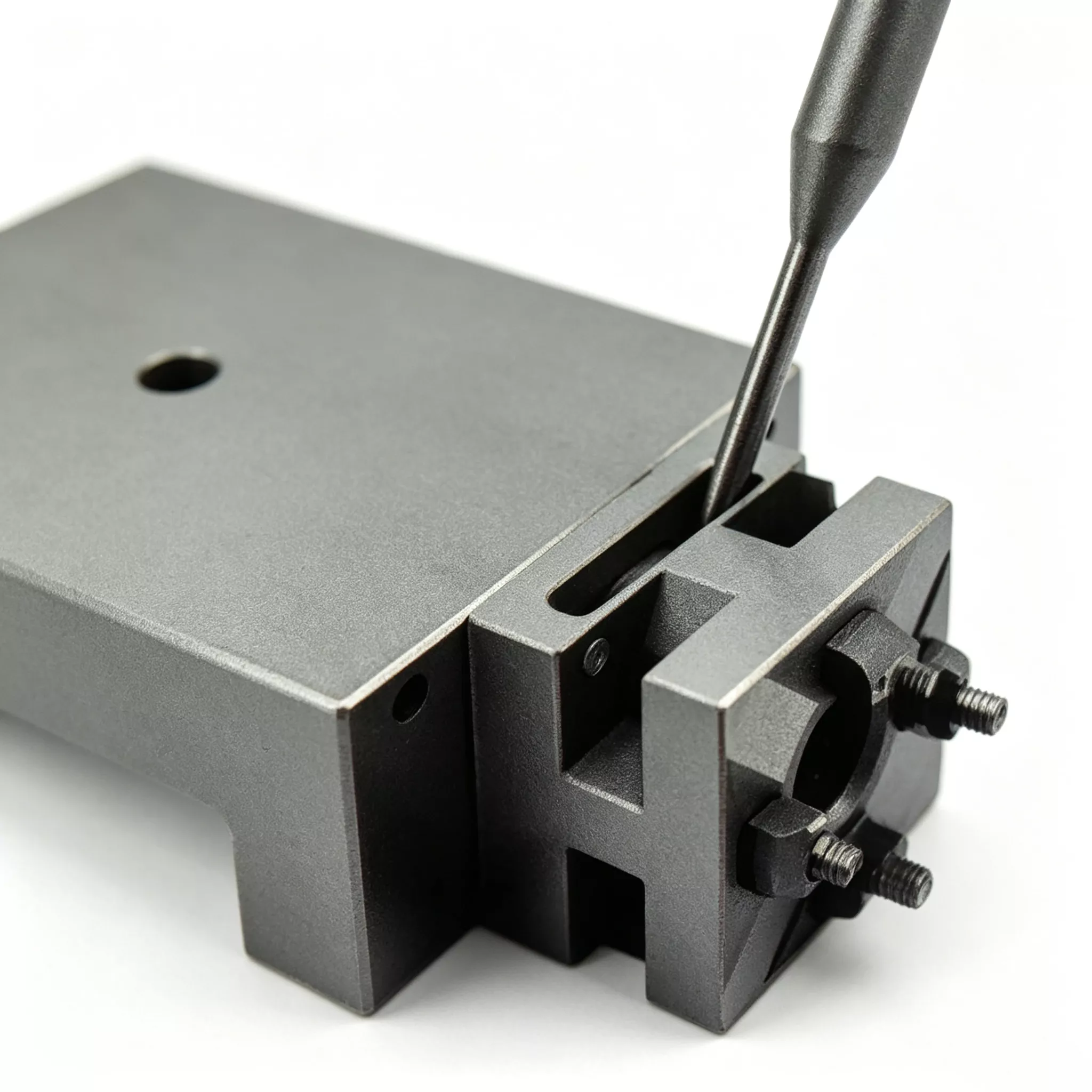

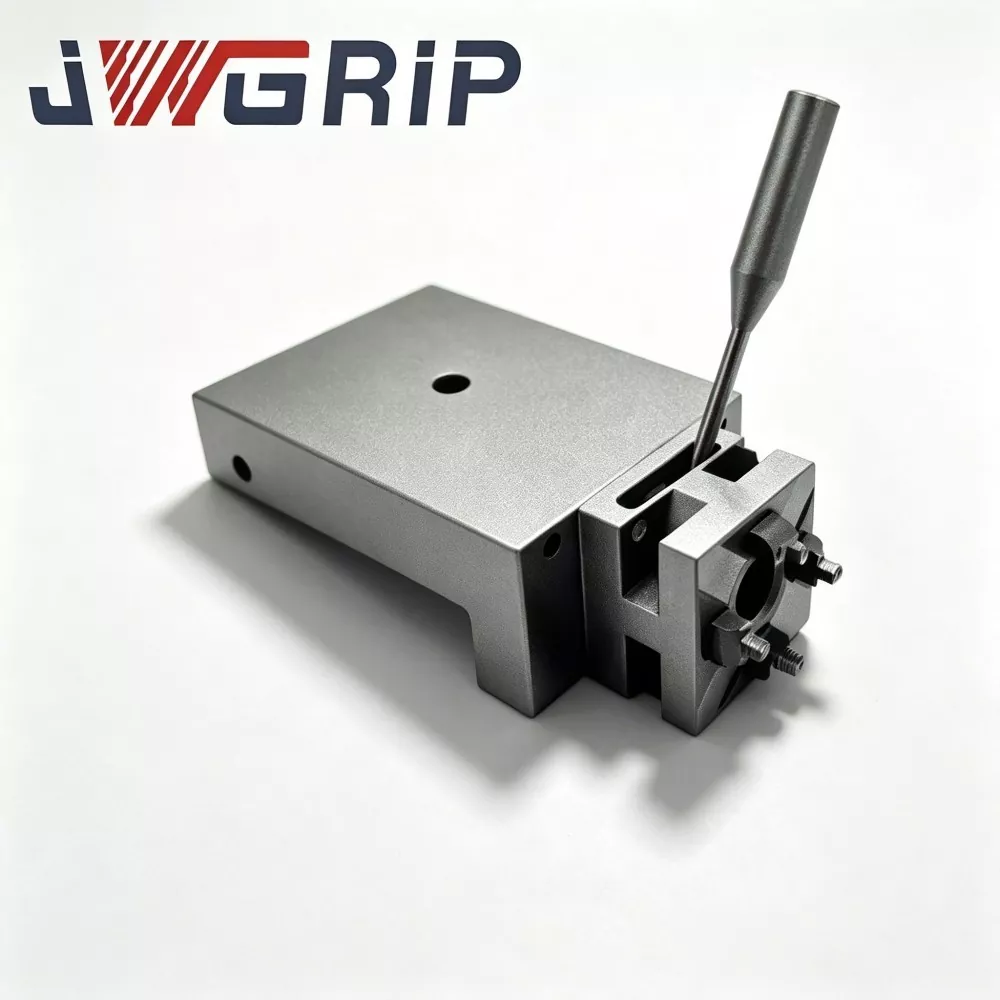

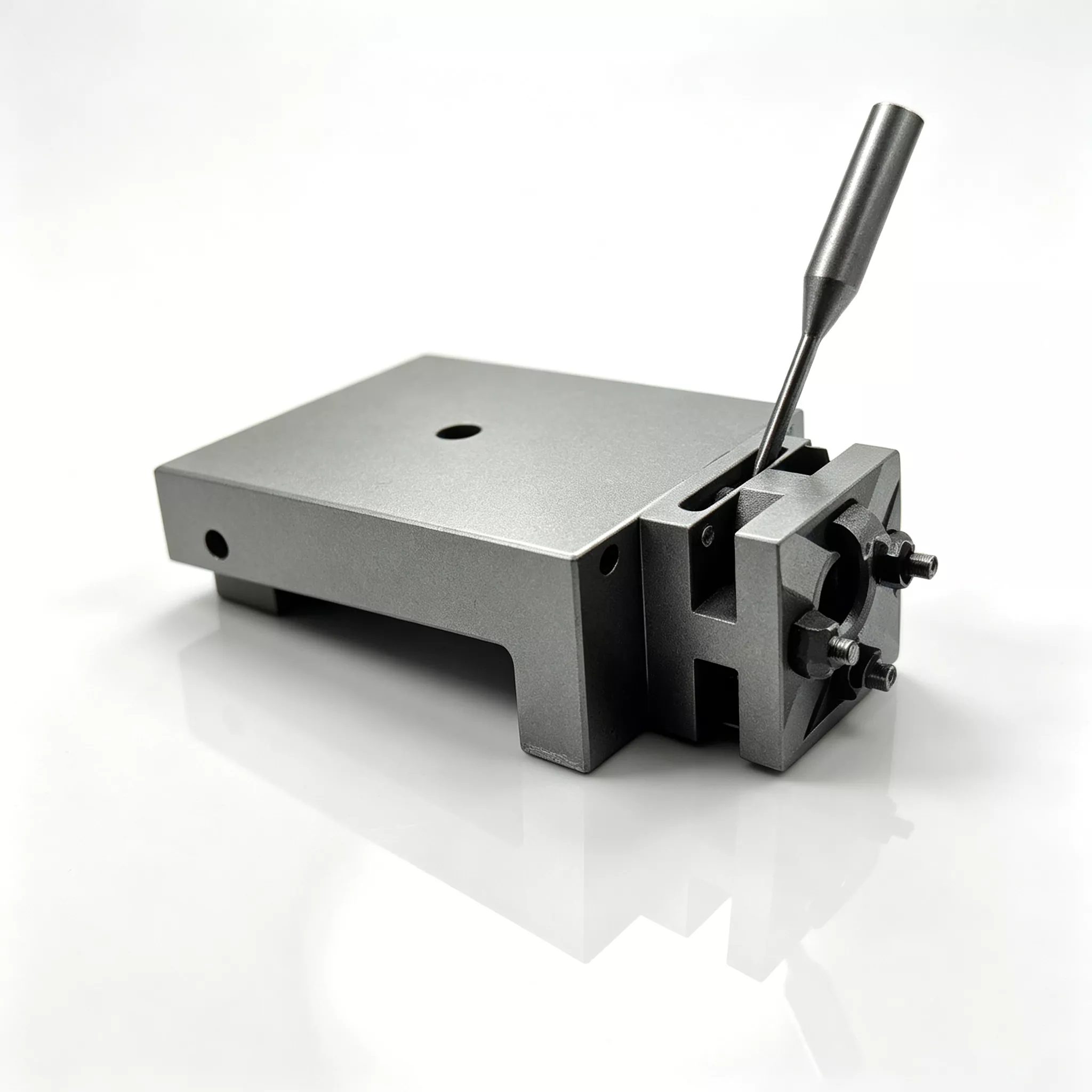

UnoSet Adapter with RSM 50 Pallet Set for Wire EDM

This high-precision cross-fixture conversion set is entirely machined from stress-relieved pre-hardened alloy steel, processed through multi-stage thermal aging treatment and full-surface ultra-precision grinding to ensure excellent overall flatness, coaxiality and long-term dimensional stability. Different from ordinary single conversion accessories with poor matching tolerance and easy datum drift, it undergoes systematic stress elimination and repeated cross-platform positioning verification, effectively avoiding positioning offset and precision attenuation caused by assembly tolerance and bolt preload deformation.

UnoSet Adapter with RSM 50 Pallet Set for Wire EDM perfectly solves the industry pain point of fixture incompatibility after wire EDM equipment upgrading, enabling full reuse of existing RSM 50 pallet and jig inventory. It eliminates repeated benchmark calibration operations, greatly improves workshop fixture resource utilization and production flexibility, and maintains stable repeat positioning accuracy during batch wire-cut production and cross-system workpiece transfer. Supporting standard spot supply and ODM personalized interface re-engineering modification, it provides cost-effective and high-stability fixture conversion and equipment retrofitting solutions for medium and large mold manufacturing enterprises.

Design Idea

JWGRIP UnoSet Adapter with RSM 50 Pallet Set for Wire EDM is purpose-built to resolve mixed-fixture-inventory retrofitting challenges. Different from simple single-function adapter parts that only focus on static dimension, our whole-set solution comprehensively considers datum-chain transmission, bolt-preload deformation and submerged dielectric-fluid operating environment.

1. Drawing on abundant retrofitting-project data accumulated from global ODM re-engineering orders, multiple prototype revisions pass cross-platform repeat-positioning validation before mass-production release.

2. Operators mount the Unoset-side of this set onto machine-table Unoset interface, lock the matched RSM 50 pallet to the adapter upper face, then original RSM 50-series jigs can be deployed directly.

3. Beyond standard versions, JWGRIP ODM service delivers interface re-engineering for non-standard modified-Unoset or variant-RSM 50 legacy equipment.

Datum Adapter Solution

Unoset and RSM 50 are two widely-adopted independent workholding reference standards for wire-EDM equipment. Each system features exclusive locating-pin layout, datum height, locking-bolt distribution and tolerance-matching logic. Under factory-original condition, they possess no direct mechanical interoperability.

· Many mold factories build capacity step-by-step: older wire-EDM units use RSM 50 systems; newly-introduced machines adopt Unoset architecture. Mixed-standard workshops face complicated production-management burdens.

· Transferring stamping-die insert batches from old RSM-50 machines to new Unoset machines requires full datum dial-indicating, consuming massive setup time. Frequent manual re-indicating increases human-induced positioning-error probability.

Commercially-available scattered single adapters only achieve physical connection and ignore datum-chain continuity. Tiny tolerance stack-up gets amplified inside multi-layer stacked assemblies . JWGRIP supplies matched, pre-calibrated complete-sets instead of loose discrete spare-parts. Every adapter and its mating RSM 50 pallet receive paired-in-house inspection to control system-level accumulated tolerance and guarantee datum consistency when legacy RSM 50 jigs migrate onto Unoset-hosted wire-EDM machines.

Assembly Logic

JWGRIP UnoSet Adapter with RSM 50 Pallet Set for Wire EDM consists of  two core sub-assemblies: Unoset transition adapter base and matched RSM 50 locating pallet.

1. Lower adapter base Bottom surface strictly complies with standard Unoset locating-pin and locking-hole layout, achieving precise docking onto wire-EDM machine Unoset work-table interface. The adapter base transfers machine-side Unoset datum upward to its top mounting-reference plane.

2. Upper RSM 50 locating pallet Pallet bottom datum cooperates with adapter-base upper locating features. Pallet top surface fully follows standard RSM 50 locating-pin pattern, locking-thread layout and datum-height dimension for mounting legacy RSM 50 jigs, vises and fixtures.

Core design highlight lies in overall closed-loop datum-chain control. All key reference faces of the adapter-pallet set are ground within one-clamp setup inside JWGRIP workshop to reduce re-clamping-caused accumulated tolerance.

Full datum transmission path:

wire-EDM machine Unoset datum → Unoset transition adapter → RSM 50 pallet → original RSM 50 fixture → workpiece.

Core Competitive Advantages

1. Paired-unit Closed-loop Datum-chain Control Different from separately-sold loose adapters and pallets, JWGRIP completes datum-link inspection on whole assembled sets. Comparative metrology test shows paired-calibration mode lowers system-level accumulated tolerance by roughly 34 % compared with randomly-matched discrete components.

2. Multi-cycle Stress-relieved Base Material Adapter-pallet complete-set adopts stress-relieved pre-hardened alloy steel. Multi-round thermal aging removes most internal residual stress. Within 14-32 ℃ workshop-temperature range, overall datum-plane flatness variation ≤0.0030 mm, resisting thermal deformation under fluctuating wire-EDM-tank temperature.

3. Full-surface Anti-corrosion Passivation Finish All exposed reference surfaces receive passivation anti-rust treatment. It adapts to dielectric-fluid-splashing wire-EDM-tank environments and slows spot-rust formation under long-term humid conditions.

4. Dual-system Standard-compliant Dimensional Boundary Unoset-side interface conforms to official Unoset specifications. Upper RSM 50 pallet fully observes RSM 50 standard locating layout and guarantees physical interchangeability for genuine standard RSM 50-series stock fixtures from user inventory.

5. Mixed-system-retrofit-oriented ODM Capacity As ODM re-engineering exporter, JWGRIP can adjust locating-pin offset, datum height and hole distribution for non-standard-variant legacy Unoset / RSM 50 interfaces according to customer retrofit drawings.

6. Complete-set Traceability Every JWGRIP complete-set carries unified laser-engraved set serial number. Paired-inspection reports archive combined adapter-pallet geometric data, convenient for asset management of multi-fixture-system mold enterprises.

Raw-material Inspection

 Each JWGRIP Unoset Adapter with RSM 50 Pallet Set production batch executes full-set-oriented controlled workflow:

1. Incoming raw-material composition & hardness inspection

2. CNC rough-milling for adapter base and pallet

3. Multi-round high-temperature stress-relief aging

4. Semi-finish machining

5. Unoset-side and RSM 50-side feature forming

6. One-clamp multi-face ultra-precision grinding for mating-reference faces

7. Locating-pin-hole & locking-hole finish-machining

8. CMM single-part separate inspection

9. Assemble into matched complete-set

10. Whole-set datum-chain combined-measurement

11. Laser unified set-serial-number marking

12. Whole-set anti-rust passivation

13. Final complete-set reverification

14. Finished-product warehousing

JWGRIP plant complies with ISO 9001 quality-management-system standards.

Core metrology instruments including coordinate-measuring-machine and flatness interferometer receive regular official metrological calibration.

Every delivered set comes with paired combined-inspection report. For ODM retrofit orders, material certificates and partial third-party test records can be provided upon client request.

Installation Steps

1. Before mounting JWGRIP UnoSet Adapter with RSM 50 Pallet Set for Wire EDM, thoroughly clean wire-EDM-machine Unoset work-table datum, adapter-base bottom locating-faces and mating surfaces between adapter-base and RSM 50 pallet. Remove metal chips and dielectric-fluid residues. Foreign trapped particles will break factory-paired datum-chain.

2. Mount adapter-base onto machine Unoset interface, tighten locking bolts following recommended-torque specs; install its matched RSM 50 pallet onto adapter-base. Strictly employ original-set locating-components; never fit pallets belonging to other serial-number sets.

3. After whole-set installation, mount legacy RSM 50 fixture / vise onto RSM 50 pallet. Run multi-cycle repeat-positioning test with reference test-bar before formal cross-machine workpiece production.

4. When migrating workpieces from RSM-50 machine to Unoset machine through this set, execute wire-EDM probing-compensation workflow. Mechanical datum inheritance cannot replace probe fine-offset correction.

5. After tank-production completes: Disassemble only if required, clean all paired-reference surfaces, fully dry, store as one complete-set inside assigned gauge-box and keep serial-number matching relation.

Forbidden operations

1. Randomly cross-mix adapter-base and RSM 50 pallet sourced from different original complete-sets, breaking factory paired-calibrated datum-chain.

2. Install without multi-layer mating-surface cleaning, allowing chips trapped between datum faces.

3. Skip pre-verification of repeat-positioning and directly start high-value stamping-insert cross-machine production.

4. Obliterate serial-number marking and confuse component-matching relation during storage.

FAQ

Q1: Can JWGRIP Unoset Adapter with RSM 50 Pallet Set make worn legacy RSM 50 fixtures reach brand-new-grade positioning accuracy?

A: This conversion-set guarantees its own complete-set geometric specifications. It cannot repair wear, deformation or tolerance-loss coming from aged legacy RSM 50 vises and jigs. Heavily-worn old RSM 50 hardware needs inspection, maintenance or replacement before cross-machine production.

Q2: Can field operators freely swap pallets between different JWGRIP Unoset-RSM50 kits?

A: Not permitted. Each pallet-adapter-base pair finishes factory paired datum-chain calibration. Random cross-set swapping destroys matched-tolerance relation and triggers unexpected positioning deviation. Always use components belonging to identical set serial-number.

Q3: My existing equipment carries non-standard-modified Unoset / RSM 50 interface, can you provide ODM re-engineering?

A: Yes. Please submit complete retrofit engineering drawings with clear requirements for locating-pin offset, datum height, hole layout and tolerances. The engineering team will finish manufacturability assessment and return formal quotation within 12 working-days.

Q4: Which failure modes fall under product-warranty scope?

A: JWGRIP UnoSet Adapter with RSM 50 Pallet Set for Wire EDM is high-precision fixture-conversion complete-set. Warranty covers manufacturing-origin defects existing upon delivery such as out-of-spec complete-set accumulated tolerance and flatness non-conformity. Damages caused by cross-set mixed-matching, collision, chip-scratching and normal cyclic-usage wear are excluded from warranty terms.
