Professional Manufacturer of R-Type EDM Workholding System for Precision EDM Applications

As an experienced manufacturer specializing in R-Type EDM Workholding System, JWGRIP develops customized EDM chucks, electrode holders and centering plates through our in-house R&D team. This clamping platform is a quick-release tooling solution purpose-built for die-sinking EDM machines, automatic electrode changers and round-the-clock mold machining. Meanwhile, we also supply Zero Point Positioning System and Quick Change Workholding System for your broader CNC automation needs. Feel free to send an inquiry for a quotation and detailed specifications!

Where does electrode accuracy actually get lost?

Every mold shop knows that cavity quality depends on electrode accuracy. But accuracy is not created at the EDM machine — it is created, and often lost, long before. The usual loss points are: clamping deviation when the electrode blank is set on the CNC machine, measuring errors during inspection, deformation during handling, and position drift every time the electrode is changed on the EDM table.

Many workshops accept these losses as "normal production variation". In reality, they accumulate: a 0.01 mm offset at clamping, another 0.02 mm at changing, and soon the cavity wall no longer matches the 3D model — the mold goes for rework, and the electrode has to be re-cut.

How do professional mold shops prevent these accumulated losses? They do not rely on operator skill alone. They rely on a workholding system that keeps the electrode datum identical from the CNC electrode machine all the way to the EDM table.

Technological Process

CNC electrode machining: the electrode blank is clamped in an R-Type electrode holder. Because the holder centers the blank automatically, the milled electrode is concentric with the datum from the very first cut. For round graphite or copper electrodes, the R-Type ER32 Collet for EDM Electrode Holder keeps the shank firmly on axis.

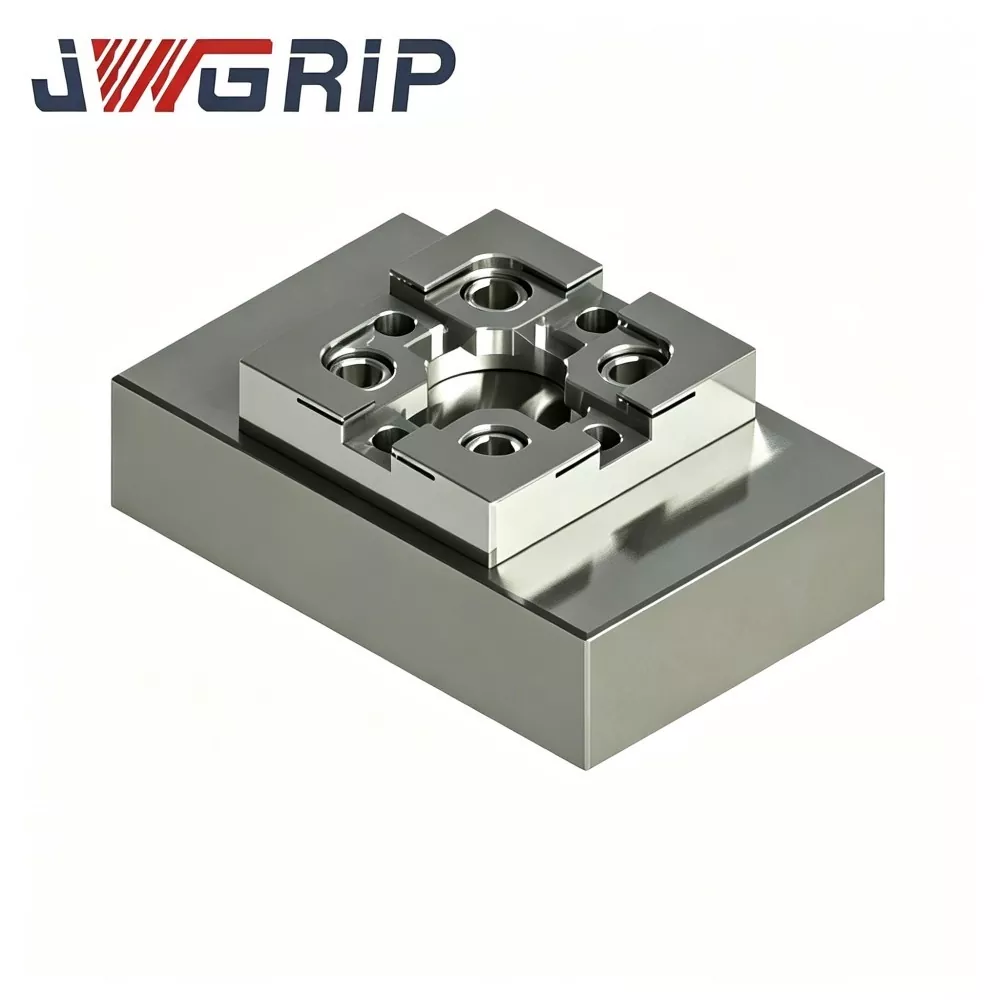

Inspection and calibration: the finished electrode moves to the measuring station with its holder still attached. Using the R-Type CNC Calibration Block for EDM Workholding, the operator verifies the datum quickly, so every electrode carries a known and verified reference into the next step.

Roughing EDM: the electrode is locked into the chuck on the EDM machine. Because the chuck returns every electrode to the same reference, the roughing spark starts exactly where the program expects it, cycle after cycle.

Finishing EDM: When the roughing electrode is consumed the finishing electrode clamped on the same holder standard drops into the same datum.No re-probing, no re-zeroing, no guesswork. This is how cavity walls merge without steps and why finishing quality stays consistent even on late shifts.

Core Working Principle

An R-Type EDM Workholding System is a standardized quick-change workholding platform for die-sinking EDM. The R series covers chucks, holders, extension rods, collets and centering plates that all lock to one universal datum.

The core design separates clamping from locating: the datum is fixed on the machine, and the holder is clamped or released in seconds. Because every component shares the same reference, electrodes can be swapped quickly without re-probing or re-zeroing.

This is why the R-Type system is the standard choice for electrode work in mold shops, automatic electrode changers and robotic EDM cells.

Practical Strategies

How to cut changeover from minutes to seconds?

Use pneumatic quick-release chucks for frequent swaps. The R-Type D150 Pneumatic EDM Chuck releases and locks with one air signal, ideal for electrodes that are changed several times per shift.

How to keep the EDM machine cutting while you prepare the next electrode?

Pre-assemble electrodes on spare holders at the bench, then simply exchange the holder at the machine. The R-Type 9-in-1 Pneumatic EDM Chuck lets you prepare multiple electrodes in one setup, which is a real time-saver for multi-electrode cavity work.

How to make the system fit your existing workflow?

Start with one chuck and a set of holders for your most frequent electrode sizes, then expand the holder and centering plate families step by step.

Key Considerations

Do you machine large or small electrodes?

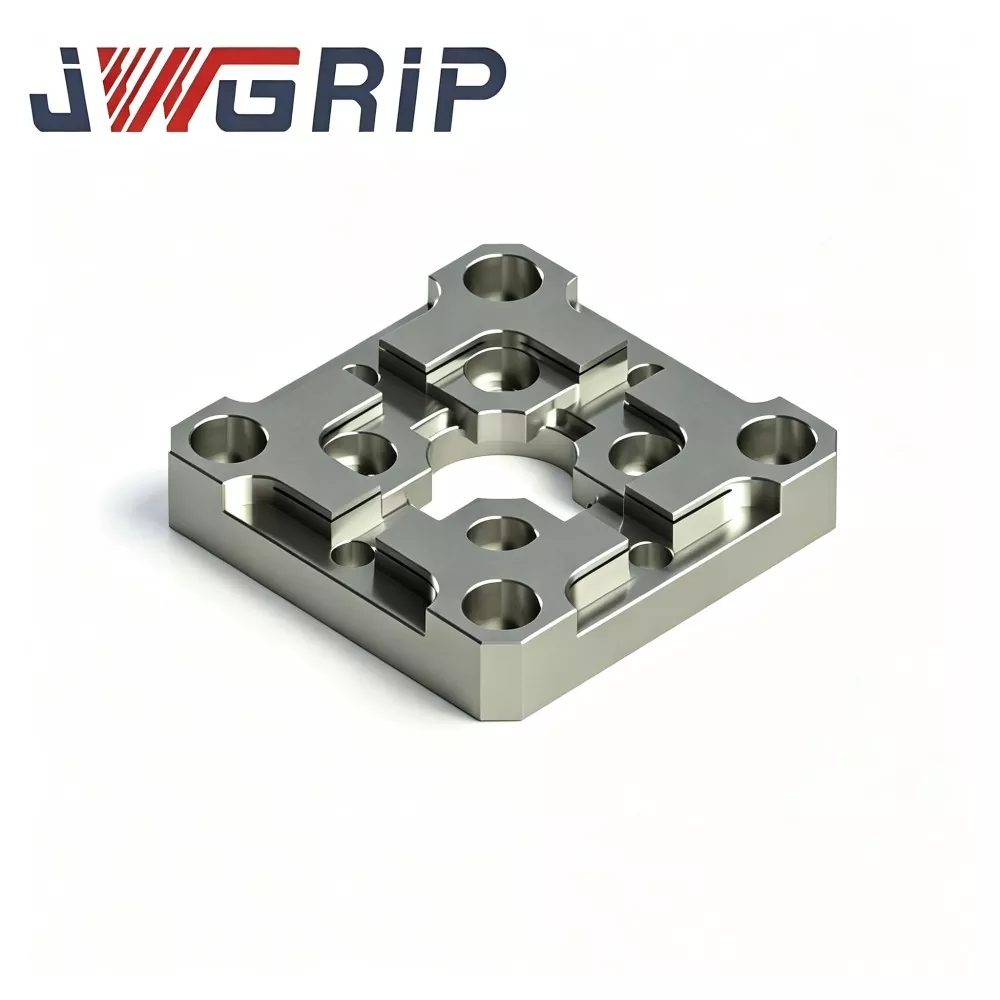

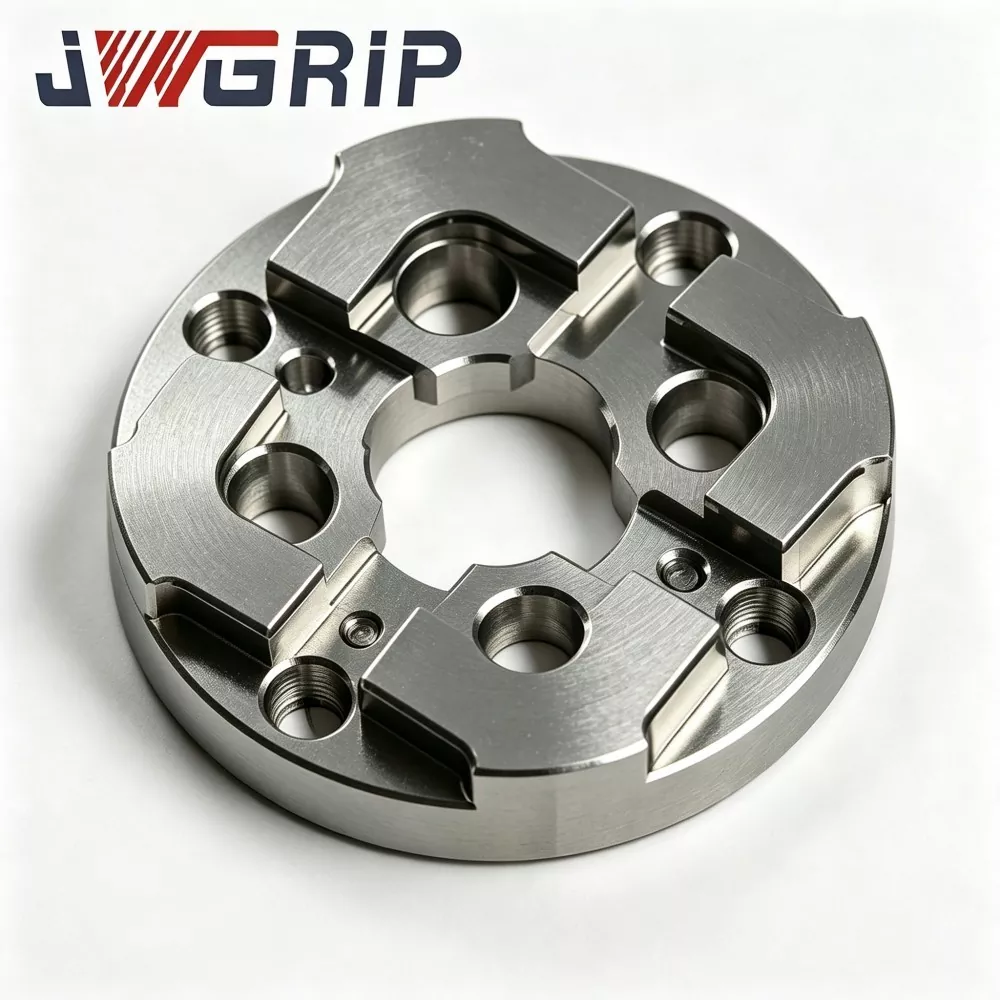

D150 and D100 chucks suit medium-to-large electrodes; compact holders with 54x54 or 70x70 centering plates fit smaller high-precision electrodes.

Manual or pneumatic?

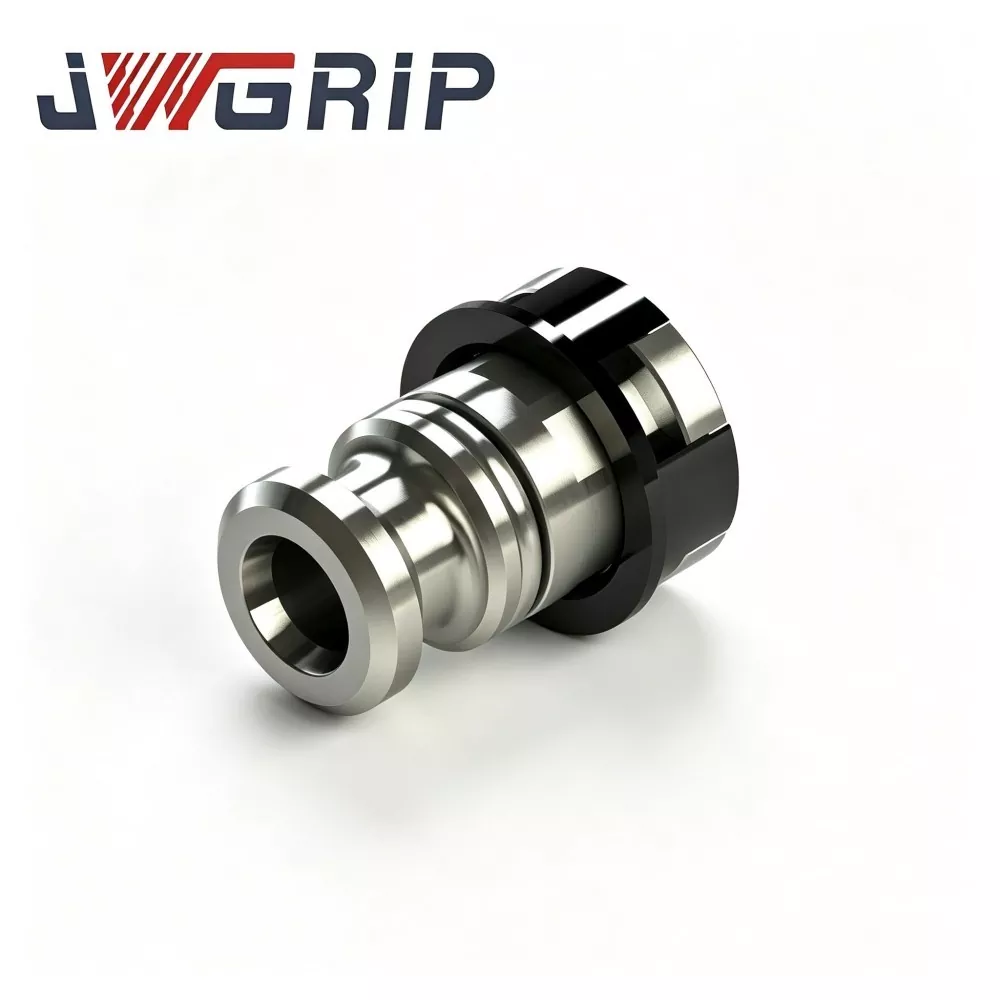

Manual models offer reliability and low cost for conventional EDM; pneumatic models prepare you for automation and robotic electrode changing.

Planning to automate later?

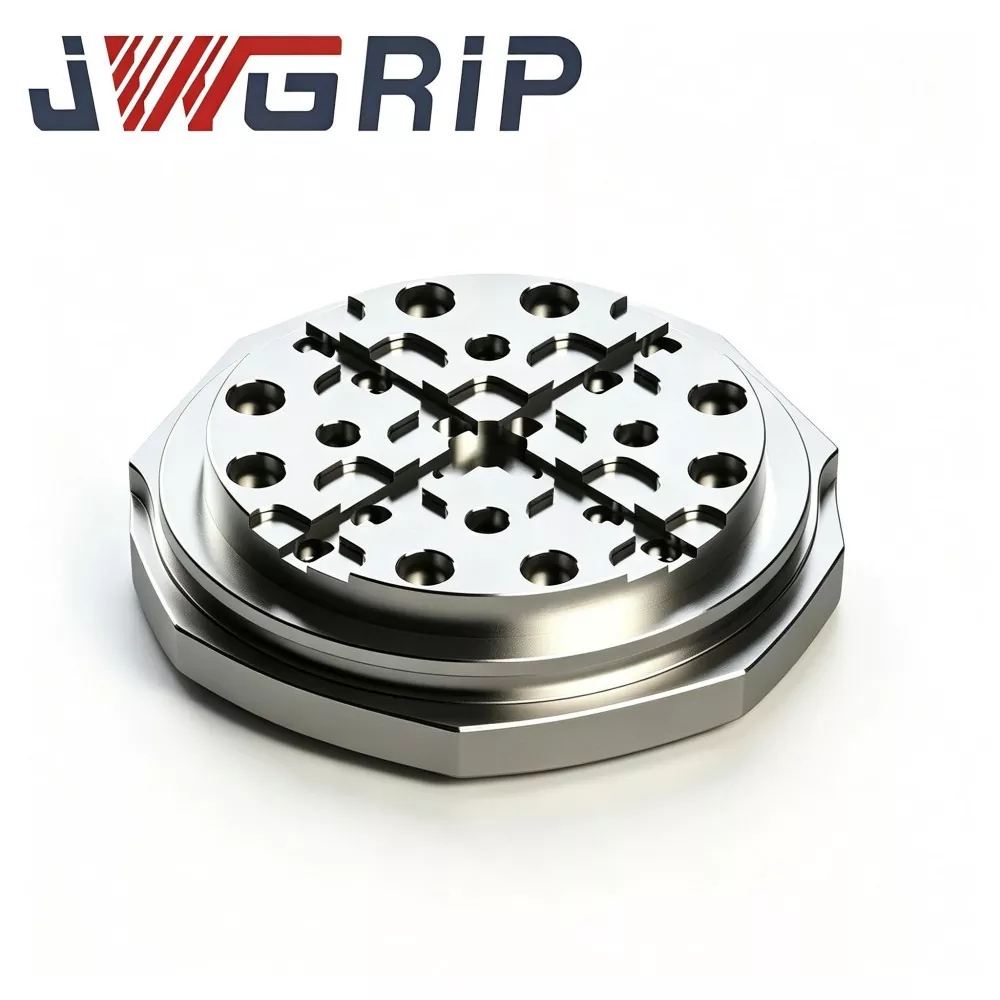

Choose pneumatic chucks and zero-point pallets now so your future robot or pallet cell can connect without re-engineering.

Why choose JWGRIP?

JWGRIP is a professional EDM workholding manufacturer. Locating faces are precision ground and every chuck, holder and centering plate is inspected for repeatability before shipment, so components from different batches stay interchangeable.

We supply complete R-type sets — chuck, holder, extension rod, collet and centering plate — from one source, eliminating interface mismatch problems.

We support custom sizes and special geometries, and our engineers help you match components to your EDM machine model and electrode routine.

Typical application scenarios

Sinker EDM processing for injection molds, die-casting molds and stamping mold cavities.

Multi-electrode successive erosion processing requiring datum consistency between roughing and finishing procedures.

Mold processing workshops preparing to construct semi-automatic or fully-automatic EDM production cells.

Electrode pre-calibration work carried out on auxiliary CNC equipment.
