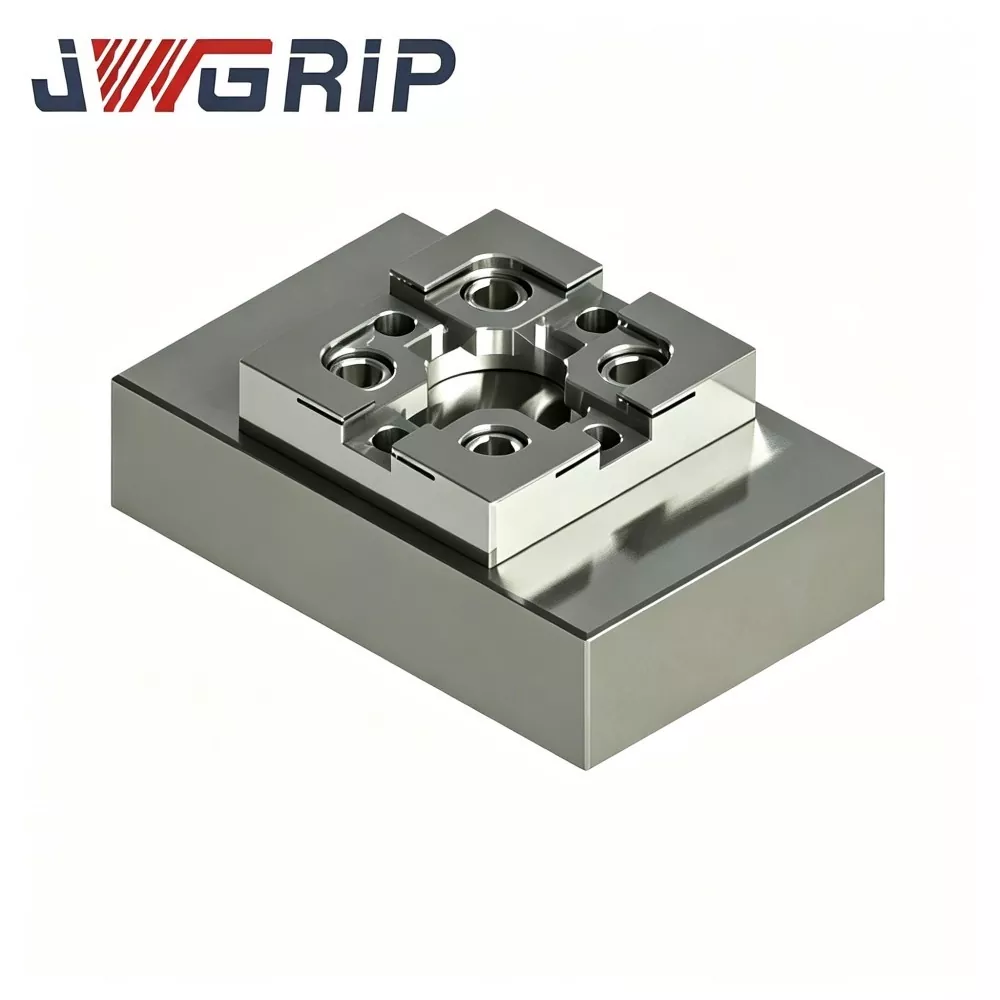

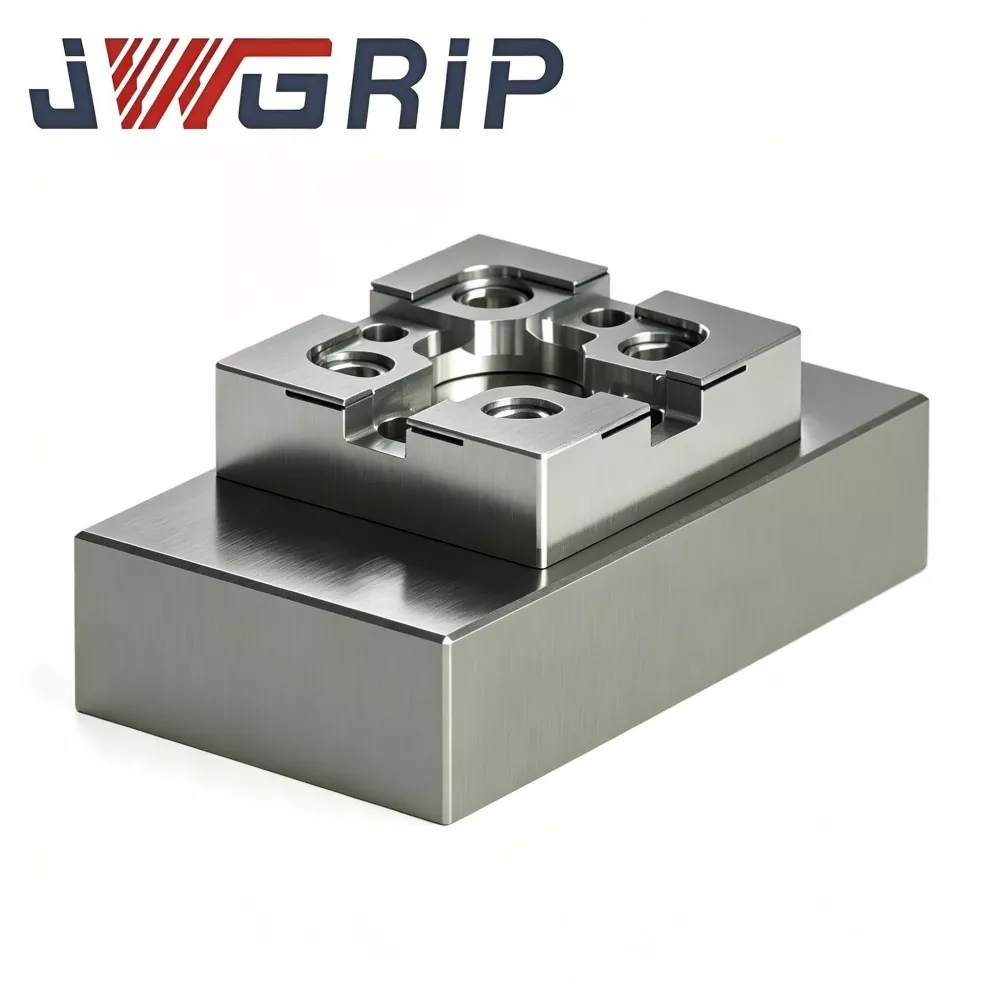

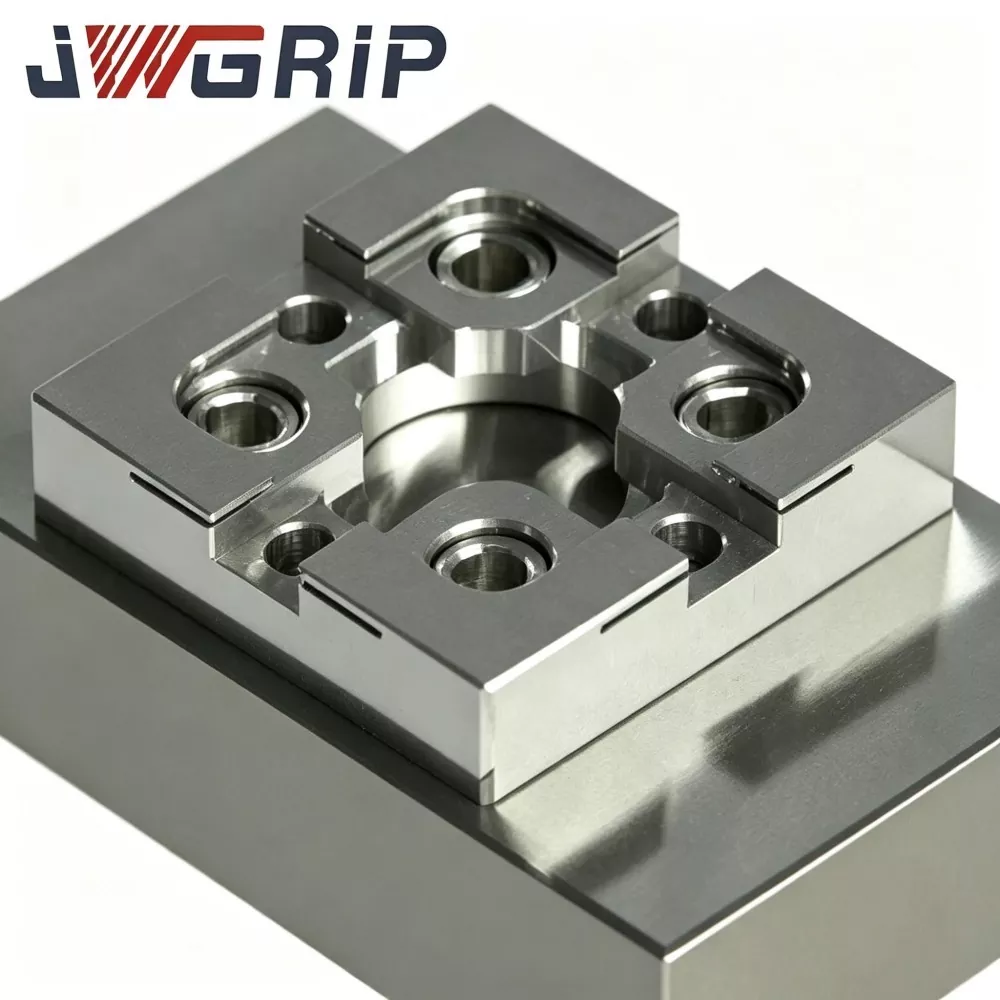

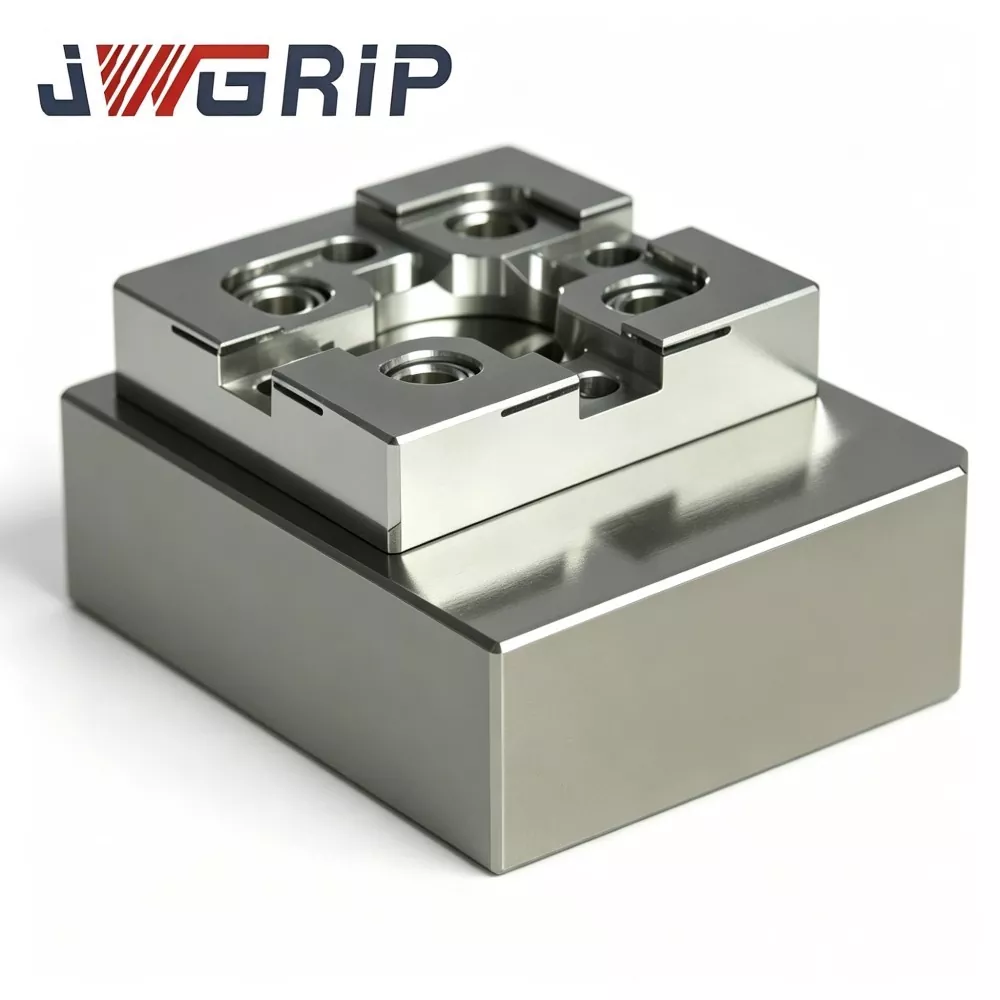

R-Type CNC Calibration Block for EDM Workholding

Repeated electrode alignment and coordinate calibration easily accumulate manual errors in daily EDM mold processing. Conventional square calibration blocks suffer sharp-edge abrasion after long-time probe contact; corner collapse and surface wear cause reference-data drift, inconsistent spark gaps and unstable cavity precision in batch mold-making. JWGRIP R-Type CNC Calibration Block adopts integral stabilized tool-steel plus full stress-relief aging to avoid thermal-induced deformation.

All reference-faces receive ultra-precision grinding while optimized R-type rounded-corner disperses probe impact pressure, slowing edge wear. R-Type CNC Calibration Block for EDM Workholding standardizes on-machine referencing workflow and serves as essential precision benchmark for high-volume multi-cavity mold production; both standard supply and custom drawing-based processing are supported.

Solve the painpoints

Mold-making workshops mixing CNC-milling and sinker-EDM often encounter troublesome coordinate-consistency risks: - Many factories still rely on manual dial-gauge setting or ordinary square calibration blocks. Sharp 90° corners develop micro-chipping after hundreds-time probe touches. Reference data drifts silently without early warning. - Hidden cumulative deviation only emerges after several mold-cavities are already machined, resulting in high-cost workpiece scrap.

JWGRIP optimizes this calibration block targeting above-mentioned risks:

1. Integral stabilized tool-steel material with complete multi-step stress-relief aging eliminates internal processing stress and restrains deformation caused by workshop ambient-temperature variation.

2. Ultra-precision grinding for all reference surfaces guarantees superior flatness and perpendicularity.

3. R-type rounded-corner reference-edge disperses probe contact pressure, greatly slowing corner wear and micro-chipping. Long-term calibration-data repeatability gets secured.

4. Standardizes on-machine referencing steps and reduces repeated trimming work. Improves overall EDM machining consistency for high-precision multi-cavity mold mass-production.

5. Standard dimensions in stock; drawing-driven custom processing is available for special automation-fixture layout requirements.

Technical Functiona

1. R-type Rounded-corner Anti-wear Reference-edge Structure Optimized rounded-transition replaces sharp right-angle corners. Comparative wear testing proves that under equal probe-touch frequency, corner-wear volume reduces by approx. 31 % versus ordinary square calibration blocks, effectively postponing reference-edge failure caused by chipping.

2. Multi-step Stress-relief Aging Treatment High-grade stabilized tool-steel substrate undergoes multi-stage thermal aging to minimize residual internal stress. After finish-grinding, stable flatness and perpendicularity are maintained within 18-28 ℃ workshop ambient-temperature range; dimensional variation controlled below 0.002 mm.

3. Multi-face Ultra-precision Grinding Process Six key reference-surfaces receive ultra-precision surface grinding. Adjacent-face perpendicularity ≤0.003 mm; each reference-surface flatness ≤0.002 mm. Superior geometric accuracy ensures reliable origin-offset calculation for EDM automatic probing cycles.

4. Surface Passivation Anti-corrosion Protection Dense passivation anti-rust treatment on outer surfaces. Resists chemical erosion from splashing EDM dielectric-fluid and lowers oxidation risk under humid tank-surrounding workshop environment.

5. Versatile Pre-machined Mounting Layout Pre-fabricated standard mounting-thread holes and locating-pin holes. Can be fastened directly onto zero-point fixture plates, magnetic chucks or custom base-plates without extra secondary machining.

6. Standard Sizes Plus Drawing-driven Custom-modification Common mold-workholding standard dimensions are in stock. Custom-reference-face layout, hole-pattern and outer-outline adjustments are supported per engineering drawings for non-standard EDM fixture-projects.

7. Full-unit Traceable Metrology Inspection Every finished block is laser-marked with unique serial number. Complete metrology records covering flatness, perpendicularity and R-corner dimension are archived for each piece, supporting traceable quality-management for high-volume mold-makers.

Complete Manufacturing Flow

Every production batch of JWGRIP R-Type CNC Calibration Block for EDM Workholding executes standardized full-sequence production workflow: Raw-material incoming composition test → rough CNC milling → multi-stage stress-relief aging → semi-finish machining → R-corner forming → precision grinding for all reference-faces → thread-&-pin-hole finishing → full-item CMM inspection → laser serial-number marking → surface anti-rust passivation → final re-inspection → finished-goods warehousing.

● Production follows ISO 9001 quality-management-system rules.

● Core measuring devices: CMM, optical interferometer, square-rule perpendicularity tester, all get periodic metrological calibration.

● Each finished unit comes with independent inspection report; material certificates and partial third-party verification records can be supplied upon client demand.

Storage guidance: Keep calibration block inside anti-magnetic shock-proof gauge box. Avoid heavy-object impact, chip scratching and long-term damp exposure. Wipe reference-surfaces thoroughly after each on-machine usage before storage. Impact may produce invisible micro-deformation and damage metrology accuracy even without visible dent.

Troubleshooting Reference Table

Benchmark compartion

Most commercial EDM calibration blocks adopt sharp 90-degree right-angle corners without R-type stress-dispersion profile; many manufacturers skip multi-cycle aging and only apply simple quenching.

1. Corner anti-wear capability: Competitor sharp-angle blocks generate micro-chipping after 400-700 probe impacts. JWGRIP R-type rounded-transition greatly enhances anti-chipping performance under repeated probe knocking.

2. Internal-stress management: Many competing products miss secondary-aging. Post-grinding slow stress-release triggers flatness drift under changing workshop temperature. Our multi-step aging removes most residual-stress for long-term geometric stability.

3. Inspection standard: Some suppliers only carry out partial dimensional sampling inspection. Every JWGRIP block receives full-item CMM inspection with unique serial-number for traceability.

4. Custom-project capability: Many factories can only deliver fixed standard sizes. Leveraging factory-direct export-oriented capacity, we develop custom-modified blocks for special EDM fixture-layout requirements.

FAQ

Q1: Can JWGRIP R-Type CNC Calibration Block for EDM Workholding achieve zero corner-wear?

A1: The R-type rounded-corner slows wear and micro-chipping risks, yet zero-wear cannot be realized after thousands-time probe impacts. Regular magnified visual inspection remains necessary in daily usage. Replace block immediately once scratches, wear marks or notches appear on reference-edges to prevent wrong coordinate-reference data.

Q2: Can this calibration block be applied for offline finished-part dimensional inspection?

A2: JWGRIP R-Type CNC Calibration Block is optimized for EDM on-machine coordinate referencing. It is not designed for high-precision offline finished-part inspection. Please choose standard gauge-block sets if you need laboratory-style offline measurement.

Q3: Do you support custom production for special outer dimensions or non-standard mounting-hole layout?

A3: Yes. Please submit complete technical drawings with clear requirements for outer-outline, reference-face positions, hole-layout and tolerance specs. Engineering team completes manufacturability assessment within 12 working-days and issues formal quotation.

Q4: Which damage conditions are excluded from warranty?

A4: This is high-precision reference gauge. Warranty covers manufacturing-originated defects including out-of-spec flatness, perpendicularity and dimensional deviation on delivery. Damage & accuracy-loss caused by collision, scratch, improper mounting torque and normal service wear are outside warranty coverage.
