Precision Wire EDM Vises Designed for Secure Workholding by a Professional Manufacturer

As a specialized fixture fabricator of Wire EDM Vises, JWGRIP develops high-rigidity rotary vises, single-jaw clamping units and multi-purpose square jaw assemblies for die-casting mold producers, precision parts subcontractors and fixture sourcing managers dealing with frequent angular cutting and multi-sided wire-cut processing. Each vise body adopts normalized alloy steel; jaw contact surfaces receive cryogenic treatment and precision grinding to lower clamping deformation for irregular, angled or small-size blanks under long-time water circulation.

These angle-adjustable clamping tools eliminate repeated re-positioning hassles for inclined profile cutting and prevent accumulated position errors from frequent workpiece disassembly. JWGRIP also supplies Wire EDM Chucks and Quick Change Workholding System, enabling seamless fixture transition between wire-cut stations and other CNC processing equipment.

Numerous subcontract workshops spend excessive working hours resetting workpiece angles for inclined surface and multi-sided wire-cut work. Without angle-adjustable vises, operators have to calculate offset values, add auxiliary gauge blocks or make custom-made auxiliary jigs to tilt workpieces to target angles. Manual shimming brings inevitable assembly gaps; tiny angular deviations will be magnified after wire-cut penetration, leading to non-compliant inclined surfaces and failed angular tolerance.

Many ordinary machine vises on the market only support fixed-direction clamping. They lack rotating mechanism and anti-rust protection for water-immersed environment. After long-term contact with circulating water and metal debris, rotating hinge gaps accumulate dirt and rust, resulting in jitter and angle drifting during multi-batch continuous production.

What practical advantages do angle-adjustable clamping tools bring compared with conventional fixed-jig setups for multi-facet wire-cut jobs?

Traditional fixed-opening vises can only complete straight-profile cutting. Operators must take down the workpiece, re-pad and re-clamp whenever inclined or multi-facet cutting is required. Repeated disassembly breaks the original datum and introduces new alignment errors.

On the contrary, Wire EDM Vises integrate built-in rotating or turning structures specially optimized for wire-cut submerged operating environment.

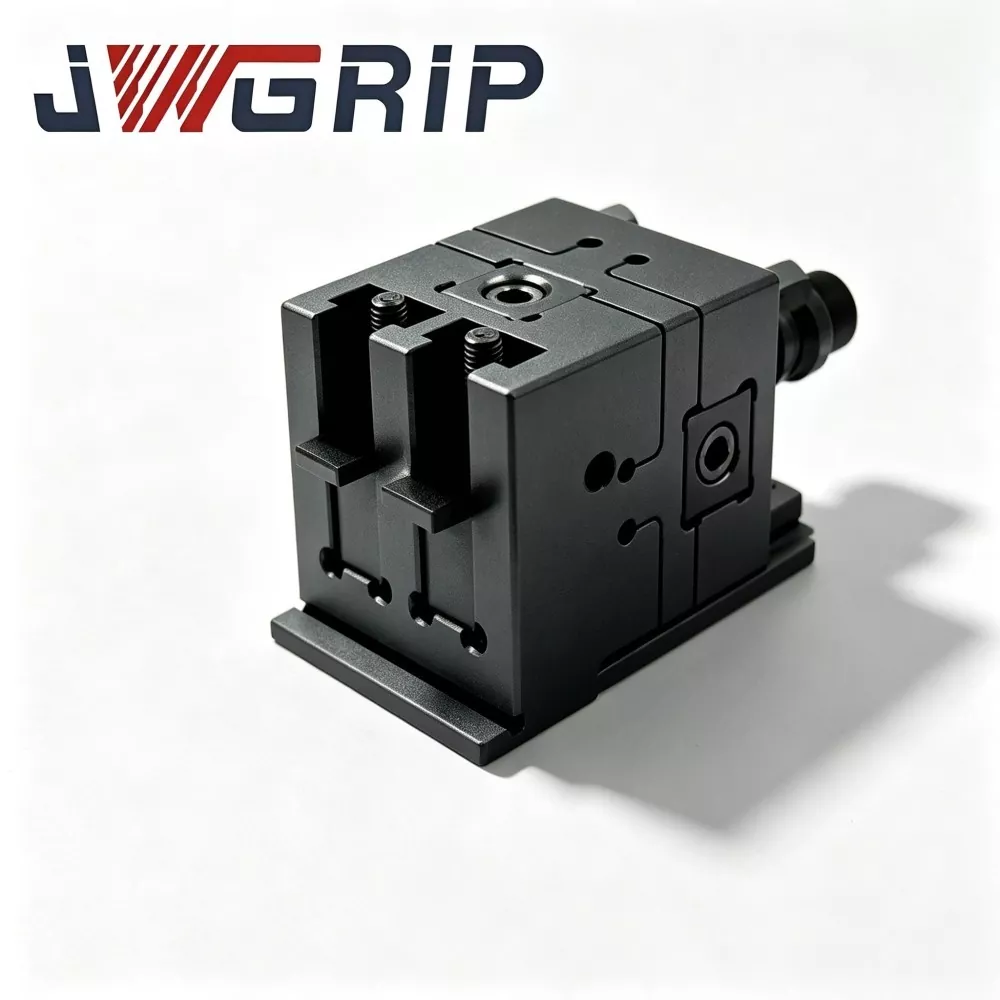

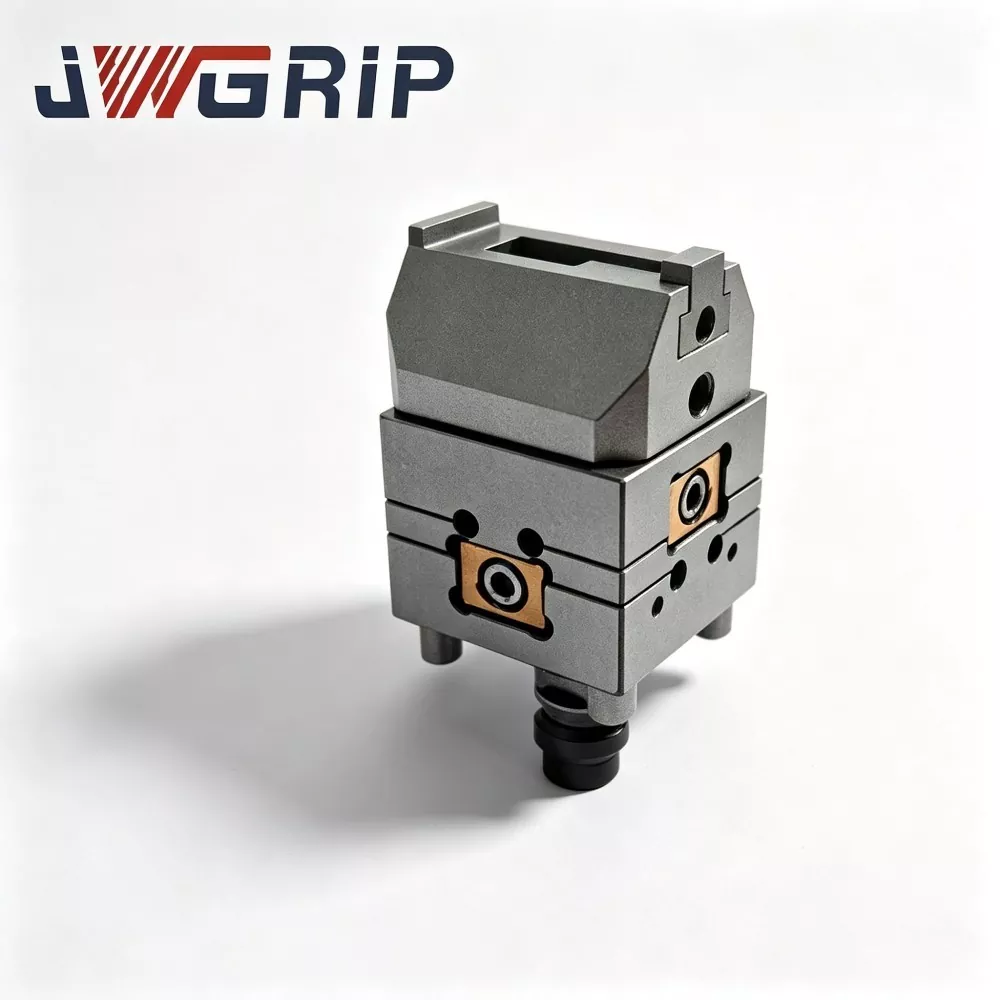

The TP Unoset Vee Vise for Wire EDM provides reliable V-shape clamping for round shaft-type blanks, simplifying positioning of cylindrical punch parts. The 0-100mm Rotatable Wire EDM Vise supports continuous angle adjustment within the effective range, meeting variable inclined cutting demands without removing workpieces.

The R-Type Wire EDM Super Vise 0-77mm delivers compact-size rotary clamping for narrow-installation-space working tables. The Unisis Square Pallet Set for Wire EDM Workholding offers large-area square jaw clamping for block-shaped mold blanks. Waterproof sealing structures block cooling water and metal chips from entering rotary hinge clearances. High-precision angle scale marks assist quick visual reference, greatly shortening time spent on angle trial-and-error adjustment. The whole vise maintains stable clamping rigidity under water flushing, ensuring angular tolerance consistency for every finished workpiece.

How can subcontract workshops cut auxiliary jig fabrication workload when processing batches of multi-angle wire-cut components?

Lots of small-batch customized orders contain a large number of inclined holes, oblique surfaces and multi-facet contours. If workshops rely purely on custom-made gauge blocks and auxiliary jigs, fixture preparation time will far exceed actual wire-cut cutting time. Wire EDM Vises allow operators to finish angle setting, blank clamping and preliminary inspection outside the water-filled machine tank. Workers lock the workpiece on rotary vises on external workbenches, adjust to target angle and verify angular reading, then mount the complete vise-workpiece assembly onto wire-cut machine table in one operation.

No extra shim blocks or custom auxiliary fixtures are required for most conventional inclined cutting tasks. When workshops need to transfer workpieces to other processing stations, these vises can cooperate with modules from Quick Change Workholding System, realizing datum inheritance between external adjustment platforms and wire-cut equipment. This mode reduces custom jig development cycles and lowers extra costs brought by one-off auxiliary fixture production.

Core Product Advantages

Integrated rotating and angle adjustment design realizes inclined-angle positioning without workpiece disassembly, avoiding errors caused by repeated re-clamping.

Multiple clamping forms including V-jaw, rotary vise and square-pallet vise adapt cylindrical shafts, small block blanks and large mold modules.

Waterproof sealing for rotating hinge positions prevents water, metal chips and sludge from entering movable gaps, maintaining angle-setting accuracy in long-term submerged production.

Clear angle scale marking supports fast visual reading, lowering skill requirements for on-site operators during angle adjustment work.

Product Module Overview

JWGRIP’s rotary clamping portfolio covers V-type single-jaw units, continuously rotatable vises and square-pallet multi-purpose assemblies to satisfy diversified multi-angle wire-cut requirements.

TP Unoset Vee Vise for Wire EDM adopts V-groove clamping structure, perfectly suited for round punch, pin-shaped and cylindrical blanks. 0-100mm Rotatable Wire EDM Vise supports continuous angle adjustment within 0-100-degree range, handling variable-angle cutting tasks for medium-size parts. R-Type Wire EDM Super Vise 0-77mm is a compact rotary vise, ideal for wire-cut tables with limited installation space. Unisis Square Pallet Set for Wire EDM Workholding provides large-contact-area square jaws, used for clamping block-shaped mold inserts and thick die steel blanks. All these assemblies belong to the Wire EDM Workholding Fixtures product ecosystem. If follow-up clamping replacement is needed on other wire-cut equipment, users can select matching accessories from Wire EDM Chucks to complete combined installation and cross-machine fixture reuse.

Typical Application Scenarios

These adjustable vises are widely used in precision stamping die processing, plastic mold insert manufacturing, aerospace special-shaped part subcontracting, and medical miniature component wire-cut production. They are compatible with medium-speed and high-speed wire-cut machines, completing clamping work for oblique hole machining, inclined surface cutting, multi-facet profile and special-angle punch parts. Whether renovating old wire-cut workstations or building flexible subcontract processing cells, properly-selected rotary vises reduce auxiliary jig consumption and stabilize angular tolerance of finished parts. They gain wide adoption by die subcontracting factories, aerospace parts suppliers and enterprises undertaking complex multi-angle custom orders.

Selection Guidance

First confirm main workpiece shapes: cylindrical and shaft-type blanks give priority to V-groove vises such as TP Unoset Vee Vise for Wire EDM. Block-shaped mold blanks can choose square-pallet structures.

Second evaluate required adjusting angle range and available installation space on machine worktable. Compact-size rotary vises are required for workbenches with limited layout area.

Assess batch characteristics: frequent variable-angle production scenarios are more suitable for continuously rotatable vise models.

If you intend to realize cross-equipment fixture circulation, verify compatibility with Quick Change Workholding System interfaces in advance. When confused about structural selection or stroke matching, refer to JWGRIP official dimension specification sheets, and make selection according to actual workpiece outline and target processing angle.

Maintenance Guidelines

During continuous wire-cut production, metal chips and circulating water sludge easily accumulate inside rotary hinge gaps. Carry out regular disassembly, cleaning and anti-rust maintenance for rotating parts; residual particles will cause hinge jamming and angle drift if left untreated. Do not apply excessive impact force on vise body or rotating dial during clamping and angle adjustment; violent knocking will permanently damage angle scale and internal precision matching surfaces.

After daily production, rinse whole vise thoroughly to remove chip residues, dry movable components and apply thin-layer anti-rust grease for hinge positions. Check angle scale accuracy periodically for vises used in high-precision batch jobs. Replace sealing rings in time once water leakage occurs. Scientific maintenance protects rotary clearance, guarantees angle-adjusting performance and keeps stable angular accuracy for long-term multi-angle wire-cut production.
