Wire EDM Chucks Manufacturer for Precision and Reliability

As a dedicated workholding developer of Wire EDM Chucks, JWGRIP manufactures low-distortion manual vise units, pneumatic clamping modules and multi-direction adjustable fixtures for precision component factories, tool-and-die makers and fixture procurement engineers troubled by part deformation, position shifting and poor repeatability in submerged wire-cut operations.

Core components adopt stress-relieved alloy steel with fine-ground clamping surfaces to reduce squeezing-induced warpage for thin, fragile or miniature workpieces. These clamping assemblies resist water-flow impact and prevent datum drift during long-term submerged processing. JWGRIP also provides R-Type EDM Workholding System and EROWA Compatible EDM Workholding, ensuring cross-process locating consistency across sinker EDM and wire-cut machining workflows.

Most die-making plants concentrate on wire-cut machine performance and brass wire quality, while underestimating how clamping force and fixture rigidity affect final dimensional outcomes. Thin-wall inserts, tiny mold pins and delicate stamped components are extremely sensitive to uneven squeezing force. Ordinary flat clamps or simple vises often produce local deformation after tightening. Once the workpiece is distorted during clamping, internal stress will release gradually in the water-immersed working tank, triggering part displacement, profile error and inconsistent cutting clearance.

Re-clamping for secondary finishing further amplifies misalignment risk. Many generic chucks on the market are originally designed for dry-environment milling; their structural stiffness and sealing performance cannot adapt to continuous water flushing, vibration and temperature changes inside wire EDM machines, resulting in unstable locating accuracy after batches of parts are processed.

What structural traits distinguish purpose-built clamping assemblies from ordinary general-purpose vises used for submerged wire-cut production?

General-purpose mechanical vises are optimized for solid thick workpieces under dry-cutting conditions. They rarely consider part deformation risks of thin-walled blanks, continuous water impact, or the need for multi-angle alignment required by wire-cut tasks. In contrast, Wire EDM Chucks are fully optimized for submerged wire-cut scenarios. The Wire EDM Vise for Precision Workholding delivers reliable manual clamping for small-batch prototype parts with accessible installation space.

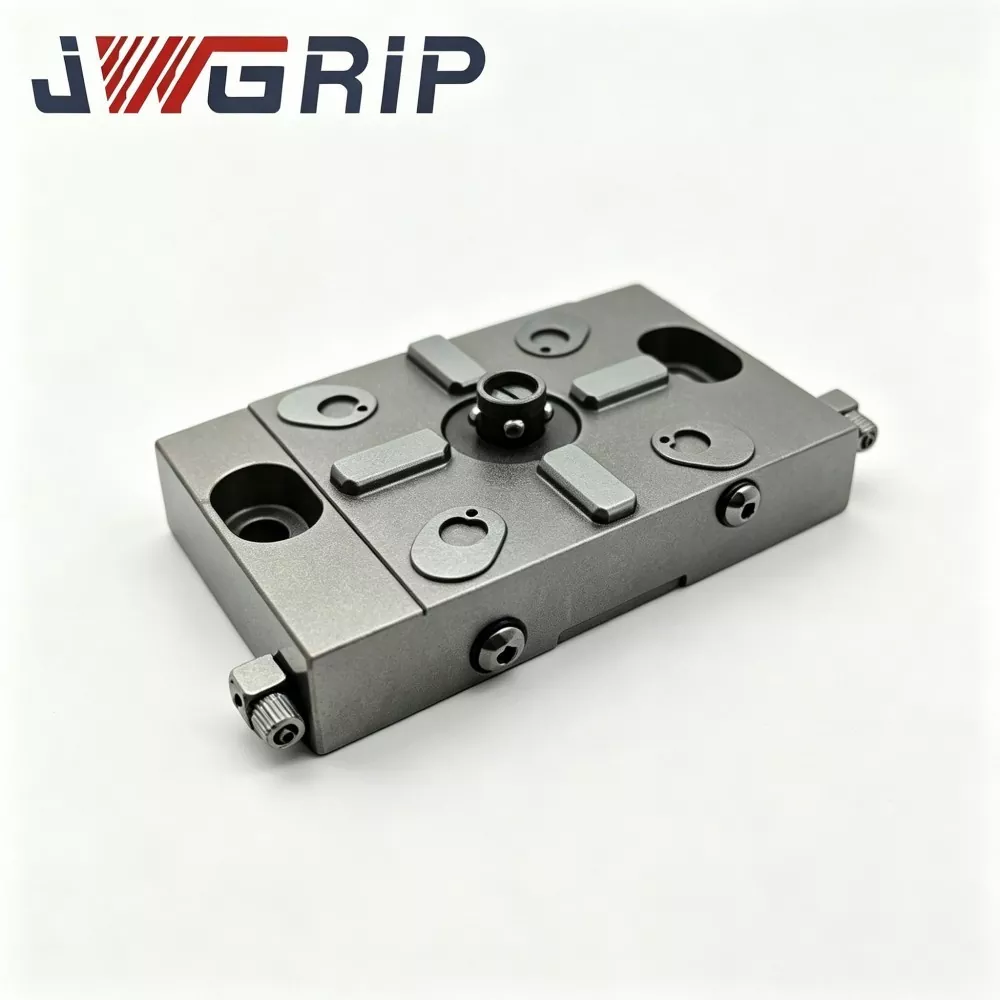

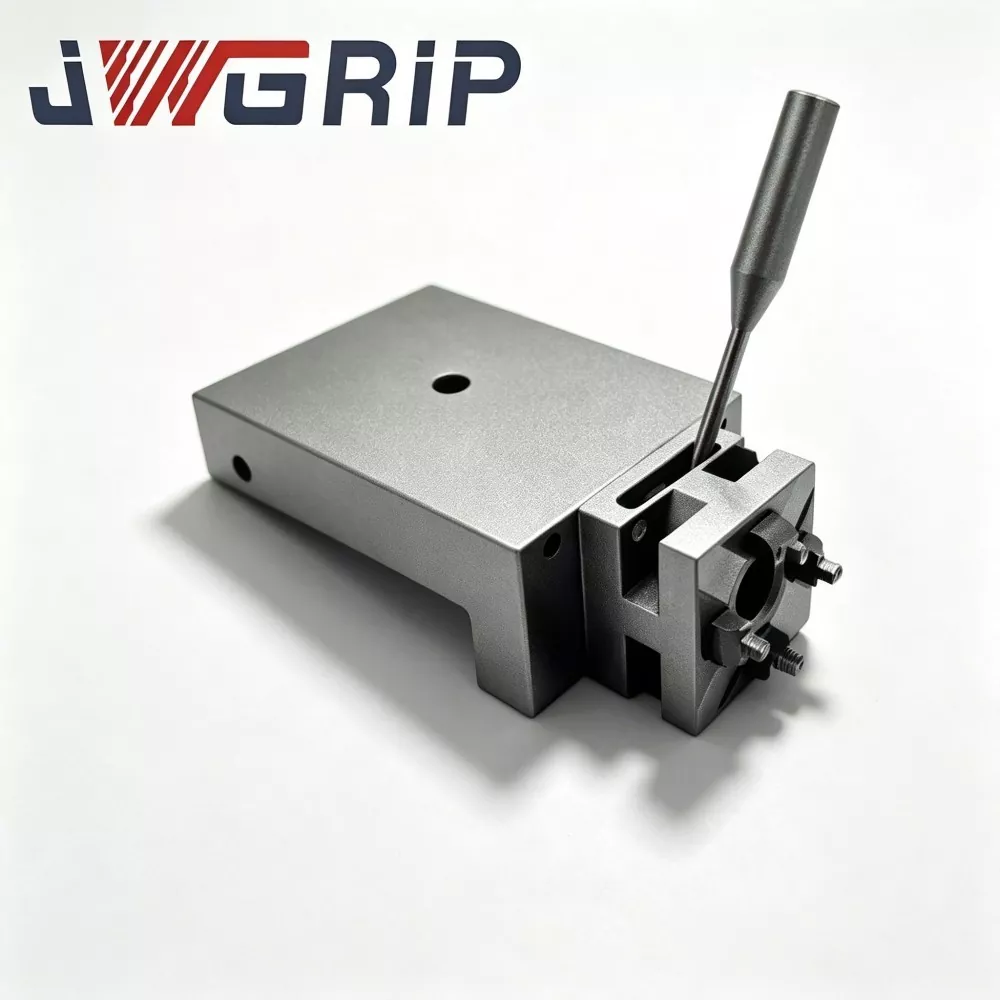

The Pneumatic Chuck for Wire EDM Workholding offers adjustable, repeatable clamping force to prevent over-squeezing thin-wall fragile blanks in mass-production environments. The Unoset Adapter with RSM 50 Pallet Set for Wire EDM realizes fast pallet exchange and datum inheritance across different workstations. The Wire EDM Chuck for Precision Workholding with three-way adjustment allows operators to correct workpiece angular offset without repeated part disassembly. Open-frame structural design ensures sufficient space for wire electrode passing-through, avoiding fixture interference during complex contour cutting. Reinforced anti-rust treatment copes with long-term water immersion, and precision ground locating faces keep datum stable under continuous water jet flushing. Reasonably selected chucks reduce stress-induced deformation, maintaining original workpiece geometry throughout the whole submerged cutting cycle.

How can die-making facilities lower rework rates caused by clamping-triggered deformation for miniature and thin-wall wire-cut workpieces?

Thin-wall and micro-size parts have become mainstream products for many wire-cut workshops. Excessive or uneven clamping force is one of the top sources of defective wire-cut components. Wire EDM Chucks enable operators to finish pre-clamping, angular alignment and offset measurement outside the water-filled machine tank. Operators secure blanks onto chucks on auxiliary workbenches, complete inspection of flatness and position status, then mount the whole fixture-workpiece assembly onto the machine worktable.

Pneumatic variants allow fine-tuning of clamping pressure, effectively preventing workpiece warpage caused by excessive tightening. When enterprises pursue unified datum across different machining stations, these chucks can pair with modules from Quick Change Workholding System, realizing fast fixture transfer between pre-setting benches, sinker EDM stations and wire-cut equipment. This workflow avoids repeated part dismounting-and-re-clamping, cuts human-induced alignment errors and greatly reduces scrap triggered by stress release during submerged wire-cut processing.

Core Product Strengths

Low-stress clamping structure reduces squeezing deformation, specially adapted for thin-wall, miniature and easily-distorted precision blanks.

Open-architecture layout reserves ample moving space for wire electrode, eliminating fixture collision risks for complex contour cutting paths.

Multiple available driving modes: manual mechanical locking and adjustable pneumatic clamping fit prototype development and high-volume batch-production respectively.

Anti-corrosion surface treatment adapts to long-term submerged working environment, resisting erosion from circulating water and extending fixture service cycles.

Product Module Introduction

JWGRIP wire-cut clamping portfolio integrates manual vises, pneumatic chucks and adapter pallet assemblies to cover diverse wire-cut production requirements.

Wire EDM Vise for Precision Workholding is the cost-effective manual solution, widely applied for small-batch die parts and prototype sample processing. Pneumatic Chuck for Wire EDM Workholding features controllable output force, ideal for mass production of thin-wall components where clamping-force consistency is critical. Unoset Adapter with RSM 50 Pallet Set for Wire EDM supports pallet-style fast swapping and datum inheritance. Three-way adjustable Wire EDM Chuck for Precision Workholding facilitates angle correction without workpiece removal. All these units belong to the complete Wire EDM Workholding Fixtures product ecosystem. If subsequent sinker-EDM processing is required for die inserts, users can adopt matching hardware from R-Type EDM Workholding System, so workpieces keep consistent locating references through multiple processing phases.

Typical Application Scenarios

These clamping units are extensively deployed in precision stamping die manufacturing, medical micro-component processing, connector mold insert production, and aerospace miniature part wire-cut tasks. They fit mid-speed and high-speed wire-cut machines, undertaking clamping work for thin-wall inserts, tiny punch pins, complex profile electrodes and hard-alloy blanks. Whether retrofitting old wire-cut equipment or building new precision die-making cells, well-matched chucks suppress clamping-caused deformation and improve final profile accuracy of finished components. They are widely adopted by precision die factories, medical-device component suppliers and enterprises undertaking high-difficulty subcontract wire-cut jobs.

Practical Reference

First analyze workpiece material, wall thickness and rigidity: thin-wall easily-deformed blanks should prioritize pneumatic-force-adjustable models to avoid over-clamping damage. Solid thick die components can choose cost-efficient manual vise-style solutions. Confirm cutting contour complexity and check whether the fixture structure will block wire-electrode movement path.

Evaluate production batch scale: frequent-swap mass-production scenarios benefit more from pneumatic chucks and pallet adapter sets. If you intend to share fixtures with other process equipment, confirm compatibility with Quick Change Workholding System interfaces in advance. When facing confusion about clamping-force configuration or structural selection, you may refer to JWGRIP official technical datasheets and workpiece-case references to filter suitable solutions according to actual blank dimensions and rigidity characteristics.

Daily Operation Suggestions

Circulating water, metal chips and fine particle residues will accumulate on clamping jaws and locating surfaces during continuous wire-cut production. Timely removal of debris from jaw grooves and positioning reference faces prevents particle-caused height deviation and workpiece tilting. Avoid applying excessive force during manual tightening; overtightening will bend thin blanks and also deform fixture jaw bodies.

For pneumatic models, keep input air clean and dry to prevent internal cylinder rusting. After daily production cycles, rinse chucks thoroughly, wipe off water stains and apply anti-rust protection especially for jaws and locating planes. Replace worn clamping jaws periodically, since abraded jaw surfaces will bring unstable friction and slipping risks under water-immersed cutting conditions. Good operating habits can maintain long-term locating stability and lower defect rates for high-precision wire-cut batches.
