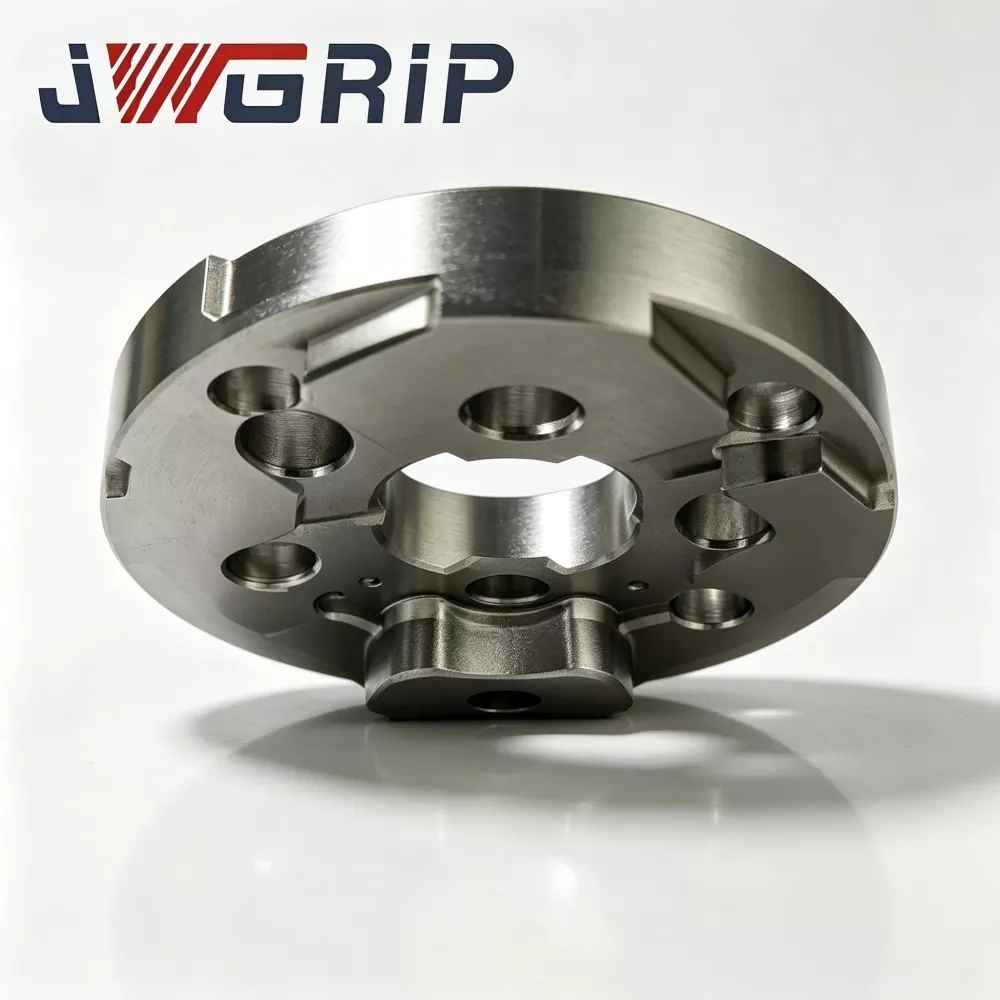

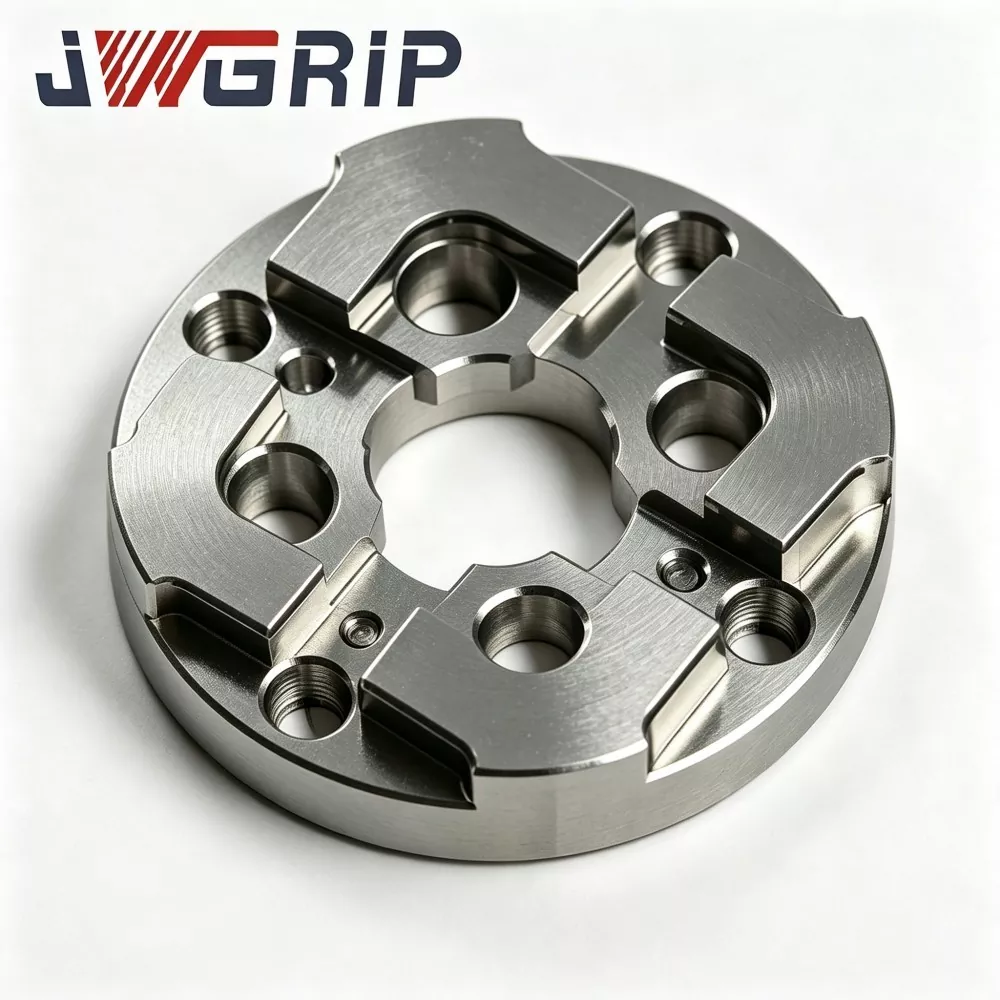

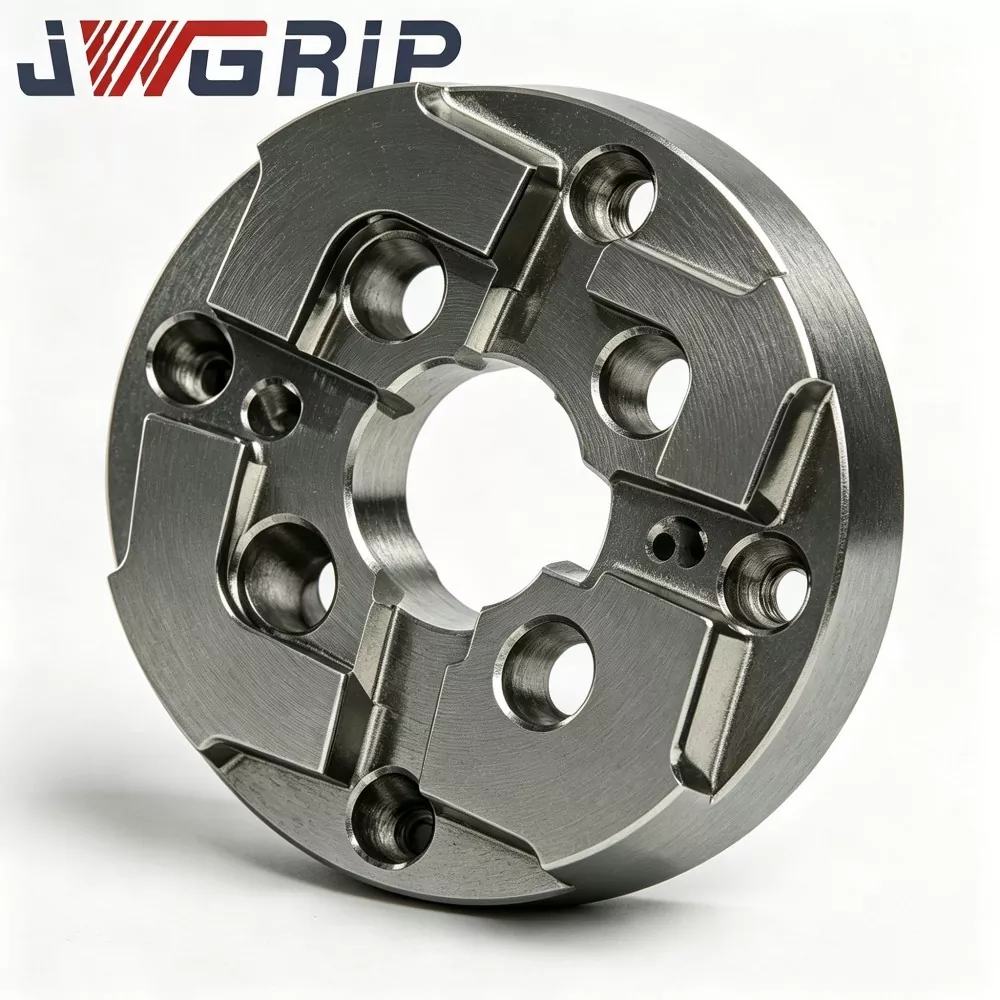

75mm EDM Zero Point Centering Plate

This high-repeatability zero-point centering plate is fabricated from stress-relieved pre-hardened alloy steel and goes through multi-stage thermal aging as well as full-surface ultra-precision grinding treatment. The reinforced anti-deformation structure effectively resists partial warping triggered by clamping preload and intermittent temperature variation inside the EDM working tank, maintaining stable repeat-positioning accuracy after thousands of locking-unlocking cycles.

Different from ordinary centering plates which suffer subtle deformation and benchmark drift under long-term cyclic clamping and coolant erosion, 75mm EDM Zero Point Centering Plate avoids accumulated positioning error and frequent re-calibration work. It greatly simplifies datum calibration workflows and cuts non-cutting setup time, minimizing positioning deviation in multi-process processing for injection mold and die-cast mold inserts. Widely used in modern automated sinker EDM production, it delivers reliable high-precision centering solutions for medium-and-large mold batch-production workshops.

Solve Pain Points

Modern medium-large mold workshops widely deploy zero-point fixture systems to raise machine utilization, yet many encounter stubborn practical bottlenecks:

Ordinary centering-plates lack structural matching for zero-point pre-tightening force. Repeated locking produces invisible micro-warping on datum surfaces. Datum repeatability gradually degrades.

When mold inserts go through CNC-milling then transfer to sinker-EDM station, inter-station coordinate deviation accumulates. Operators spend extra hours on re-calibration, and high-value mold inserts may get scrapped due to unrecognized positioning offset.

JWGRIP optimizes 75 mm EDM Zero Point Centering Plate for above-mentioned challenges:

1. Reinforced thickened datum-base plus internal stress-optimized rib layout disperses concentrated zero-point locking stress and restrains local micro-warping under repeated lock-unlock cycles.

2. Multi-stage composite stress-relief thermal-aging suppresses thermal deformation induced by EDM-tank ambient-temperature variation.

3. Full-surface ultra-precision-grinding guarantees stable flatness & parallelism for reliable cross-process datum transfer between milling and EDM stations.

4. Simplifies datum-calibration steps and greatly reduces repeated re-dial-indicating workload for medium-large mold-insert batch-production.

5. Direct-mountable onto mainstream zero-point fixture-bases; OEM custom-modification for hole-pattern, boss-height and interface dimensions supports non-standard zero-point retrofitting projects.

Working Principle

JWGRIP 75mm EDM Zero Point Centering Plate is a special-purpose datum-reference plate built for sinker-EDM zero-point workholding systems:

1. Installed between zero-point locking modules and electrode-jig / mold-insert fixture plates. Cooperates with zero-point locating pins to transmit unified mechanical datum when swapping workpieces or electrode assemblies, realizing fast datum restoration without full re-dial-indicating.

2. Ordinary thin-body centering-plates work under unloaded state; under strong zero-point pulling-lock force, uneven-stress distribution triggers plate-body bending.

3. Core structural upgrade: thickened reinforced datum-base plus internal stress-optimized rib layout. Rib structures spread concentrated locking-stress over whole plate-body and restrain local partial-warping when zero-point modules execute pull-locking action.

Important usage reminder:

This plate provides mechanical zero-point datum reference only. It cannot fully replace probe-based coordinate compensation. After zero-point locking and mechanical referencing, operators must still perform probe measurement to compensate tiny assembly-clearance error.

Main application:

medium-size multi-cavity injection-mold, die-casting-mold insert and large precision-stamping-insert EDM processing. It fits mainstream zero-point fixture-base plates.

Core Technical Advantages

1. Reinforced Anti-warping Structural Layout Comparative load testing shows under standard zero-point locking pull-force, JWGRIP 75 mm EDM Zero Point Centering Plate reduces local stress-concentration by approx.34 % versus ordinary thin-body centering plates, greatly lowering datum-surface micro-warping risk after repeated lock-unlock cycles.

2. Multi-step Composite Stress-relief Treatment Pre-hardened alloy-steel substrate receives three-round thermal-aging post rough-machining to remove most internal residual-stress. Within workshop temperature 15-31 ℃, datum-surface flatness variation ≤0.0028 mm, resisting thermal deformation caused by EDM tank-temperature fluctuation.

3. Full-surface Ultra-precision Grinding Upper datum working-face, bottom zero-point mating-face and locating-boss contact-surfaces all receive ultra-precision grinding. Top-surface flatness ≤0.002 mm; parallelism between top-bottom mating-datum ≤0.0035 mm. Stable parallelism guarantees datum consistency after repeated dis-assembly-re-assembly.

4. Integrated Full-plate Anti-corrosion Passivation Whole-plate passivation anti-rust treatment. Tolerates long-time splashing of EDM dielectric-fluid and humid tank-surrounding environment, slowing surface-oxidation and spot-rust formation.

5. Standard Zero-point-compatible Mounting Layout Pre-fabricated locating-pin holes and locking-screw-holes match mainstream commercial zero-point chuck specs. Direct installation without heavy secondary-machining for most existing zero-point fixture-bases.

6. Stock-available Standard Size plus Flexible OEM Modification Standard 75 mm dimension keeps stock for fast delivery. OEM adjusts hole-layout, boss-height, plate-thickness and interface-dimensions per customer drawings for non-standard zero-point fixture-retrofit projects.

7. Full-process Traceable Quality-management Each finished plate carries unique laser-engraved serial-number. Complete inspection-records covering flatness, parallelism and loaded-state-deformation test-data are archived for medium-large mold-enterprise quality-tracking.

Manufacturing Workflow

Each production batch of JWGRIP 75 mm EDM Zero Point Centering Plate strictly follows full-sequence manufacturing workflow:

Raw-material incoming composition & hardness inspection → CNC rough-milling (including internal reinforcing-rib feature) → first-round high-temperature stress-relief aging → semi-finish-machining → secondary & tertiary thermal-stabilization aging → locating-boss forming → multi-face ultra-precision grinding → zero-point mating-hole finish-machining → CMM full-item geometric inspection → simulated zero-point loaded-state-deformation test → laser serial-number marking → full-plate anti-rust passivation → final visual re-check → finished-goods warehousing.

● Production follows ISO 9001 quality-management-system requirements.

● Core measuring-devices: CMM, flatness interferometer, zero-point load-simulation test-bench; all receive periodic official metrological-calibration.

● Every finished-unit generates independent inspection-report; material-certificate documents can be supplied upon client request.

Storage practical tip:

Store inside dedicated shock-proof gauge-box. Avoid heavy-object impact and metal-chip scratching. Even invisible micro-deformation under zero-point locking-load will damage datum repeatability. After each on-machine usage, wipe datum-surfaces and locating-hole inner-walls completely with lint-free soft-cloth before storage.

Installation Guidance

1. Before mounting JWGRIP 75mm EDM Zero Point Centering Plate, fully clean zero-point module top surface, plate bottom mating datum and locating-hole inner walls. Remove metal chips, carbon powder and dielectric-fluid residues. Foreign particles trapped on mating surfaces cause plate warping under zero-point locking pulling force.

2. Operate zero-point modules at manufacturer-recommended air-pressure value. Do not exceed rated working pressure. Excessive pulling force brings extreme load and may trigger permanent plate deformation.

3. Once zero-point locking finishes, never skip probe compensation. Mechanical zero-point datum cannot offset minor assembly-clearance error.

4. Carry out visual inspection for datum surfaces every 8-11 working days. Check indentations, scratches or local raised traces. Run loaded-state repeatability test periodically.

5. After disassembly, clean all mating contact surfaces before storage. Do not stack heavy workpieces directly on exposed datum working surfaces.
