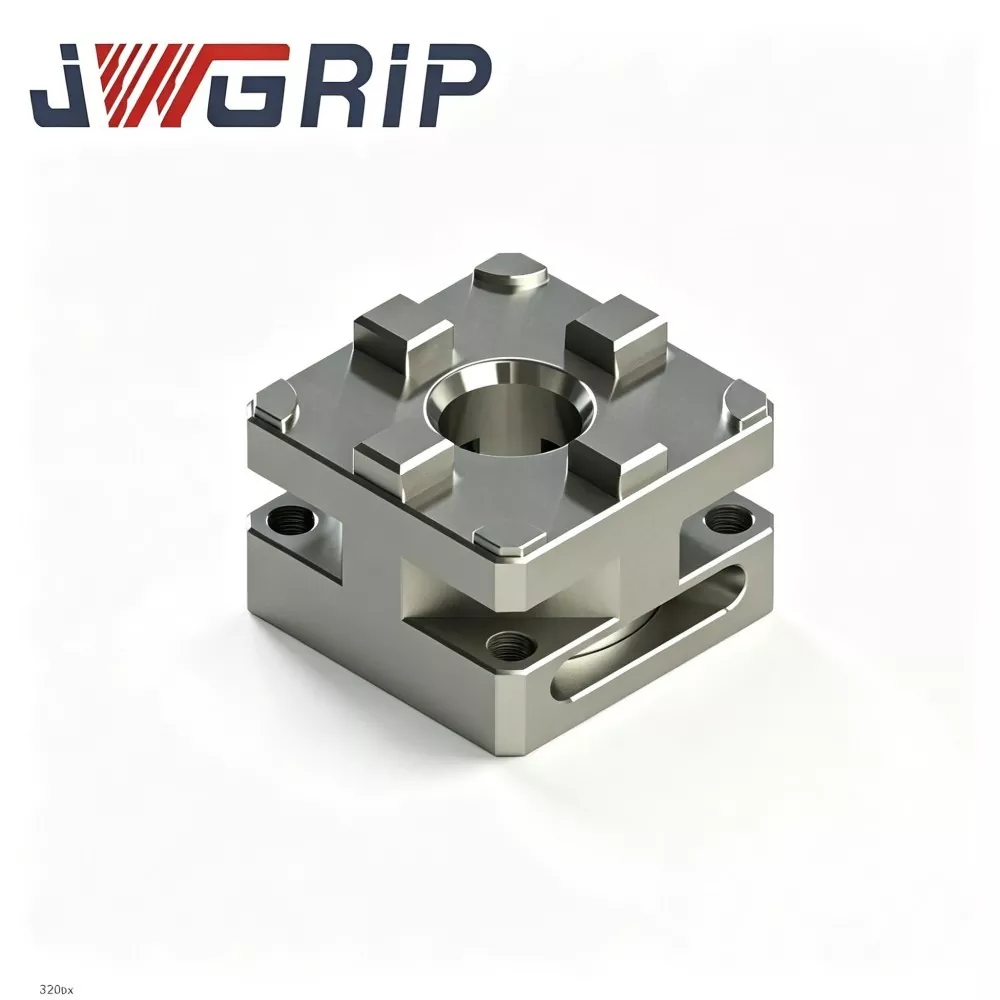

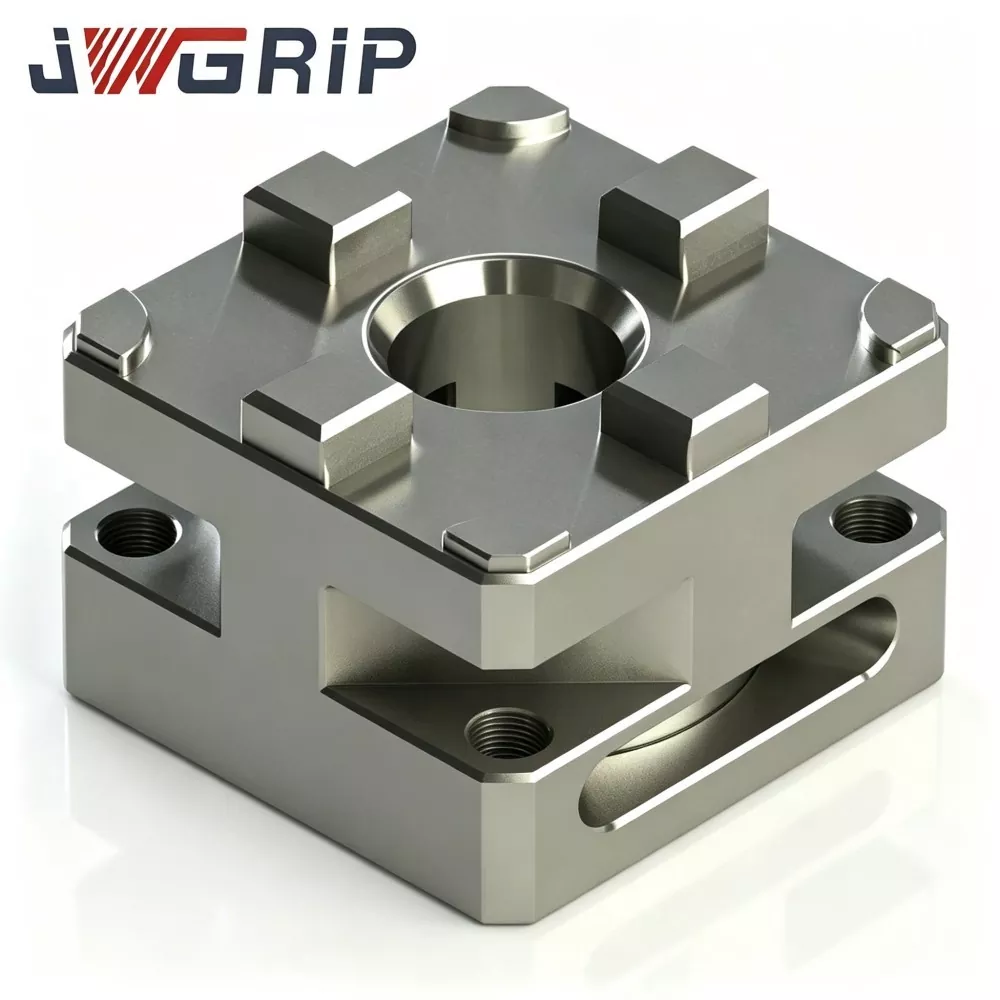

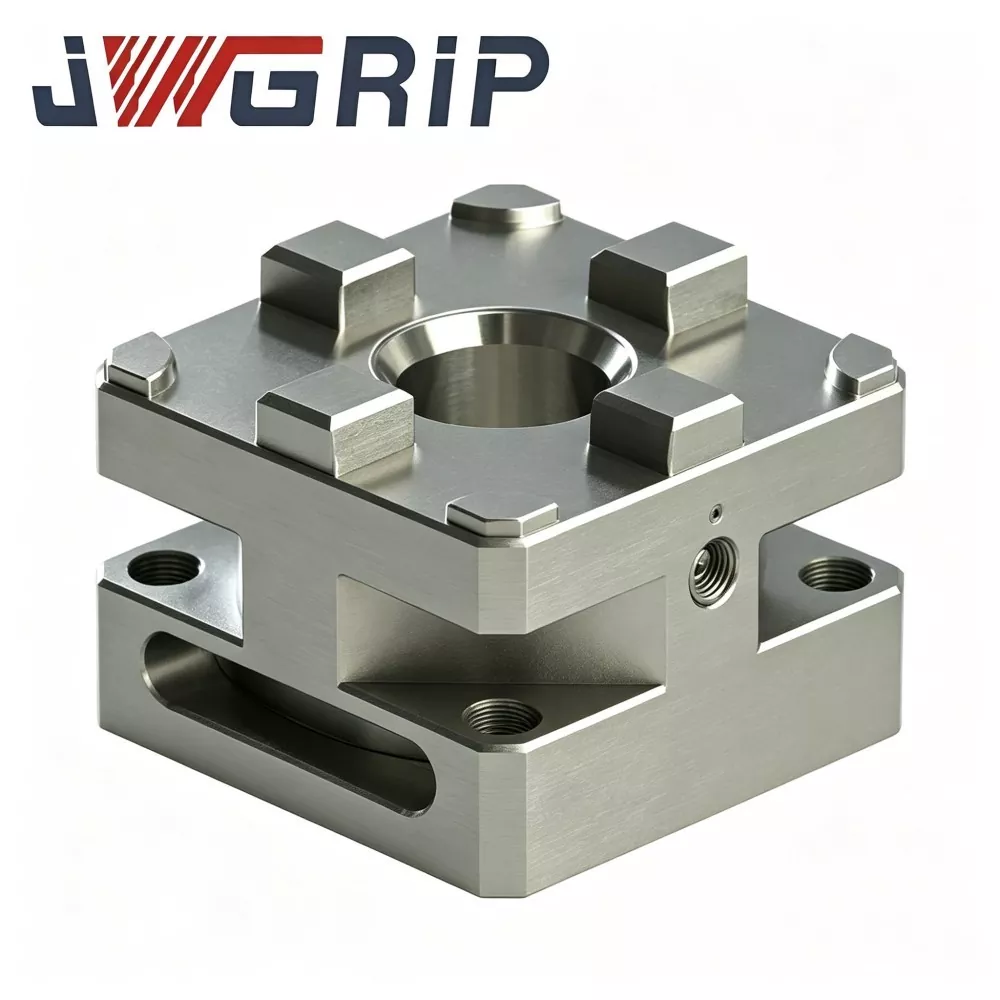

R-Type D100 Manual EDM Chuck

This high-performance R-Type D100 Manual EDM Chuck is constructed with hardened anti-rust alloy steel, featuring stable clamping output, excellent concentricity consistency and outstanding long-term anti-abrasion performance under frequent manual locking cycles. Core locating surfaces adopt one-time clamping precision grinding technology, and the whole body undergoes integral hardening treatment to enhance rust-proof and wear-resistant capability, fully adapting to humid and coolant-filled harsh EDM workshop environments. Different from conventional manual chucks with easy clearance expansion and accuracy decay, it completely avoids positioning deviation caused by component wear and air pressure fluctuation.

It effectively reduces non-cutting auxiliary calibration time, shortens electrode replacement cycles and maintains consistent positioning accuracy for multi-variety electrode processing. Widely applicable for sinker EDM machining and mold die manufacturing, it provides flexible, stable and cost-effective mechanical workholding solutions for mold enterprises, EDM job shops and machine tool system integrators worldwide.

Application bottleneck

 Numerous die-making EDM workshops face practical fixture bottlenecks in daily-time production:

· Pneumatic-driven chucks require complete air piping and stable air-source infrastructure. Medium-small processing sites will bear extra workshop-transformation costs if adopting pneumatic clamping solutions.

· Common market manual EDM chucks generate surface wear and growing internal clearance after thousands of clamping cycles. Gradually decayed concentricity will produce defects on mold-cavity surfaces. Repeated dial-gauge calibration consumes massive non-cutting production hours.

Main improvement:

1. Core locating surfaces adopt one-setup precision-grinding manufacturing process. Key moving components receive integral hardening treatment for improved rust-proof and wear-resistant capacity, adapting to humid EDM workshop environment filled with dielectric coolant.

2. No compressed-air source is required. Operators complete clamping and locking purely by mechanical cam structure. Accuracy fluctuation triggered by unstable air pressure gets fully eliminated.

3. Supports flexible multi-station offline electrode presetting, shortens electrode replacement cycle, delivers consistent positioning results for multi-variety electrode processing.

4. Provides robust mechanical workholding solution for sinker EDM and heavy-duty die-manufacturing production workflows.

Operating Logic

JWGRIP R-Type D100 Manual EDM Chuck adopts reinforced four-jaw centering clamping architecture with enlarged D100 outer-diameter benchmark:

1. Bottom mounting datum complies with standard D100 installation dimensions. It can be directly fixed to EDM workbench or assembled with transitional adapter plates.

2. Heavy-duty internal cam-drive transmission converts manual torque input from external torque wrench into radial centering driving force for movable clamping jaws. Under recommended torque, four jaws move synchronously toward central locating bore to clamp electrode shanks, holders or large-size mold inserts.

3. Reverse wrench rotation releases cam pre-load force; clamping jaws open for fixture disassembly and part replacement.

Key mechanical design highlights:

· All core locating datum planes are finished by one-setup multi-pass precision grinding, lowering assembly-induced accumulated tolerance.

· Thickened chuck-body wall plus internal distributed reinforcing ribs evenly spread heavy-load clamping stress over whole shell, avoiding local-position deformation caused by long-time heavy-duty manual locking. Stable concentricity and repeat-positioning performance hold true both for project-tender-supported production sites and batch-trial-run-order validation workshops.

· Jaw-mating moving surfaces are coated with dedicated anti-wear layer to slow abrasion from carbon sediment pollution under spark-erosion oil-immersed conditions. This fully-manual unit reserves no pneumatic connectors or internal air-channel structures.

Core Technical Advantages

1. Reliable Centering & Repeat-Positioning Consistency Key locating functional surfaces go through multi-stage precision grinding. Concentricity ≤0.004 mm and repeat positioning accuracy ≤0.003 mm. No positioning deviation accumulates after thousands of heavy-load manual lock-unlock cycles, satisfying strict tolerance requirements for large multi-cavity mold electrode fabrication.

2. Reinforced High-load Alloy-steel Chuck Body Main-body uses premium 42CrMo alloy steel with integral quenching & tempering heat-treatment, surface hardness reaches HRC 54-58. Excellent impact-resistance, anti-deformation and dielectric-oil corrosion-resistance fit heavy-weight electrode clamping tasks under EDM oil-soaked conditions. Widely adopted among large-scale mold-making enterprises for its robust load-bearing capacity.

3. Torque-standardized Manual Clamping without Air-source Dependency Operators lock with matched torque wrench; recommended tightening torque: 6-8 Nm. Constant-torque operation eliminates unstable clamping-force caused by inconsistent manual force input. Without compressed-air requirement, the chuck works reliably in temporary workshops, renovation zones and mobile debugging stations. After one-time datum calibration on machine-table, auxiliary time for electrode-holder swap drops greatly, lifting EDM machine utilization for heavy-electrode repetitive jobs and frequently-changed prototype mold tasks.

4. Enlarged Clamping Range & Broad Mechanical Compatibility D100 outer dimension and central locating datum follow mainstream industry manual-chuck reference benchmark. Compatible with most commercially-available D100-series electrode holders, locating pallets and transitional adapters. Drawing-driven structural modification can realize special overall height, avoidance cut-outs and non-standard mounting-hole layout to satisfy personalized technical requirements from project-tender documents.

5. Complete Industrial Compliance Test Documentation Each production batch conducts dimension inspection, hardness testing, heavy-load cyclic wear simulation and concentricity stability test. CE and ISO9001 inspection-report papers can be provided for enterprise clients completing project-tender formal procedures.

Evaluation Checklist

 Carry out following pre-assessment work before purchasing JWGRIP R-Type D100 Manual EDM Chuck to prevent on-site application obstacles:

1. Measure available installation dimension of EDM machine work-platform. Confirm vertical and horizontal reserved clearance; avoid mechanical interference between enlarged chuck shell and machine-tool spindle or moving axes.

2. Prepare calibrated matched torque wrench for manual locking. Excessive manual torque causes permanent jaw deformation; insufficient torque brings heavy-weight-electrode slipping risk during spark-erosion cutting.

3. Check dimensional benchmark of existing electrode holders. Confirm whether current tooling follows D100 industry standard. Non-standard modified holders require additional transitional adapter parts.

4. Control EDM dielectric-oil liquid-level height. Main mounting-screw positions should keep proper distance below liquid surface to reduce carbon-sediment accumulation on threaded sections.

5. For enterprise project-tender clients or batch-trial-run-order managers, submit complete on-site environment parameters and performance requirements in advance for accurate product-configuration matching.

Maintenance Guidelines

 When deploying R-Type D100 Manual EDM Chuck, pay attention to misuse hazards and routine-maintenance suggestions:

1. Strictly follow recommended tightening-torque range 6-8 Nm. Over-torque wrench force will trigger permanent jaw structural deformation; insufficient torque creates hidden slipping risk for heavy-weight electrodes during spark-erosion processing.

2. Prevent carbon-sediment accumulation inside jaw guide-grooves. Carbon-particle contaminants abrade moving-mating surfaces and lead to positioning-accuracy loss. Set fixed periodic-cleaning workflow for on-site operators.

3. Protect central locating hole and clamping-jaw working surfaces from heavy mechanical collision. Hard impact damages datum precision and directly degrades concentricity performance.

4. Regularly inspect mounting-screw-hole thread status, remove rust and oil sediment; apply small-volume anti-rust grease for long-term non-working storage.

5. For project-tender clients, unify operation-tool configuration specifications for each branch-workshop during early-phase technical communication.

6. For batch-trial-run-order clients, archive complete test-run records for subsequent mass-procurement evaluation reference.

Why Build Long-term Cooperation With JWGRIP

1. Genuine Factory-direct Source JWGRIP is self-owned fixture-manufacturing enterprise rather than simple trading middleman. Full production workflow of R-Type D100 Manual EDM Chuck is completed in-house. Mechanical engineering team owns over 11-year workholding-solution R&D experience and deeply understands diverse real-world pain-points of large-size mold-making EDM workshops.

2. Rich Technical-modification & Project-support Competence Drawing-driven structural modification supports overall-height adjustment, special avoidance-slot opening and non-standard mounting-hole layout. Acceptable business modes cover small-lot trial purchase, complex-structure technical revision, formal project-tender support and batch-trial-run-order cooperation.

3. Transparent Project-oriented Quotation Mechanism Clear commercial quotation is issued based on product configuration, modification complexity and various cooperation patterns. No hidden extra-cost occurs throughout whole project execution cycle.

4. Complete Quality-guarantee Framework Each manual EDM chuck carries unique traceability serial-number. Two-year warranty covers manufacturing-originated defects under rated-torque and correct-installation scenarios. Clamping jaws and other wearing components are consumable parts excluded from warranty. Technical-support team supplies installation-guidance documents and common-fault troubleshooting proposals.

5. Controllable & Predictable Delivery Schedule Standard-spec products follow stable fixed-production rhythm. For large-batch project-tender deliveries or batch-trial-run-order sample supply, we feed back production progress periodically and guarantee steady goods-supply rhythm.

FAQ

Q1: Are you manufacturer or trading supplier for R-Type D100 Manual EDM Chuck?

A1: JWGRIP is genuine fixture-manufacturer located in China. All production procedures are accomplished in-house. We offer drawing-driven technical-modification support, project-tender-submission document-matching service and batch-trial-run-order cooperation instead of working as simple middleman trader.

Q2: Can this large-size manual-type chuck sustain stable performance under long-time EDM dielectric-oil immersion?

A2: Standard-version moving-matching-surfaces receive anti-wear surface-treatment adapted for EDM oil-bath environment. Please strictly perform periodic carbon-sediment-cleaning maintenance to extend overall unit service-life.

Q3: What are concentricity and repeat-positioning accuracy of standard-spec R-Type D100 Manual EDM Chuck?

A3: Standard-product concentricity ≤0.004 mm, repeat positioning accuracy ≤0.003 mm. Higher-precision variants can be realized via drawing-driven technical modification.

Q4: Which damage conditions fall outside warranty-coverage scope?

A4: Two-year warranty applies for manufacturing-caused defects under rated-torque and correct-installation conditions. Damage induced by over-torque operation, hard mechanical collision, abrasive-particle wearing and improper manual-maintenance is not covered. Clamping jaws belong to consumable wearing-parts.

Q5: Can I get formal commercial-quotation documents for project-tender-submission?

A5: Yes. Please get in touch with JWGRIP sales department. We prepare formal commercial-quotation documents based on product configuration, order scale and concrete-business-mode including project-tender-submission or batch-trial-run-order project.
