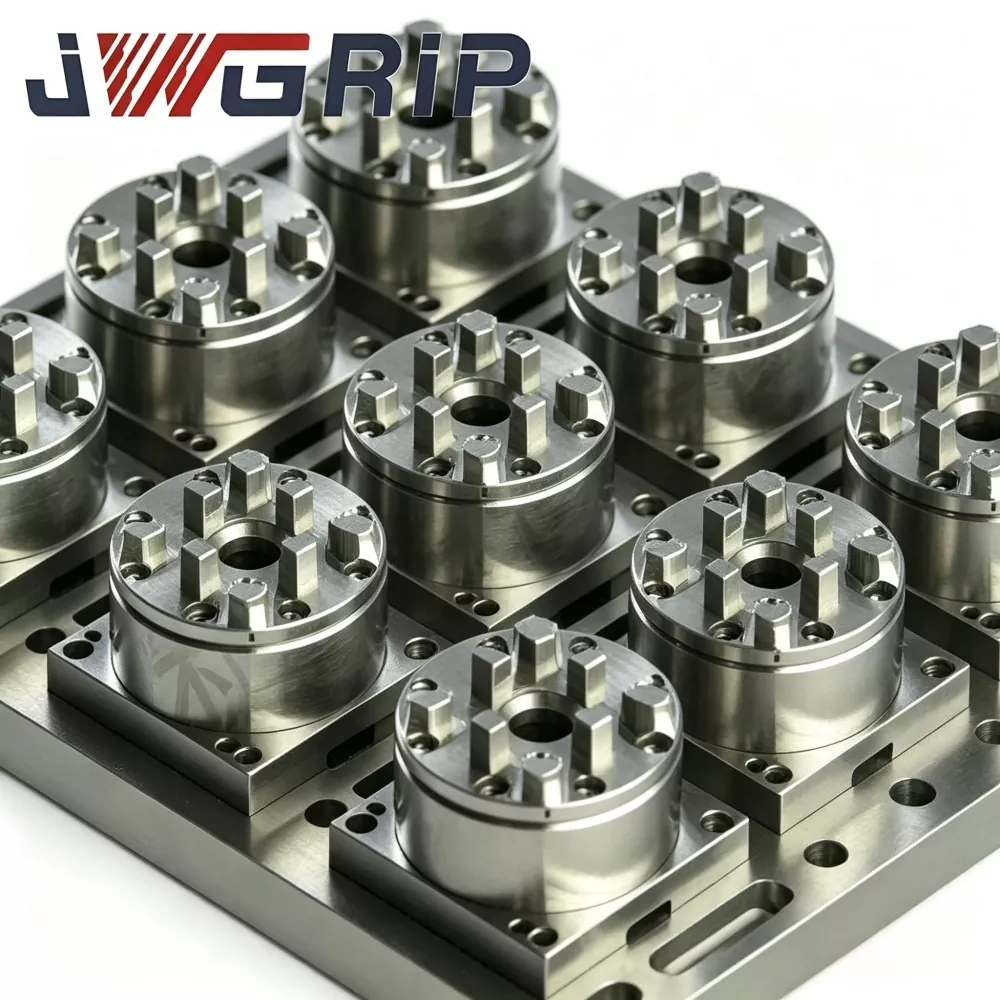

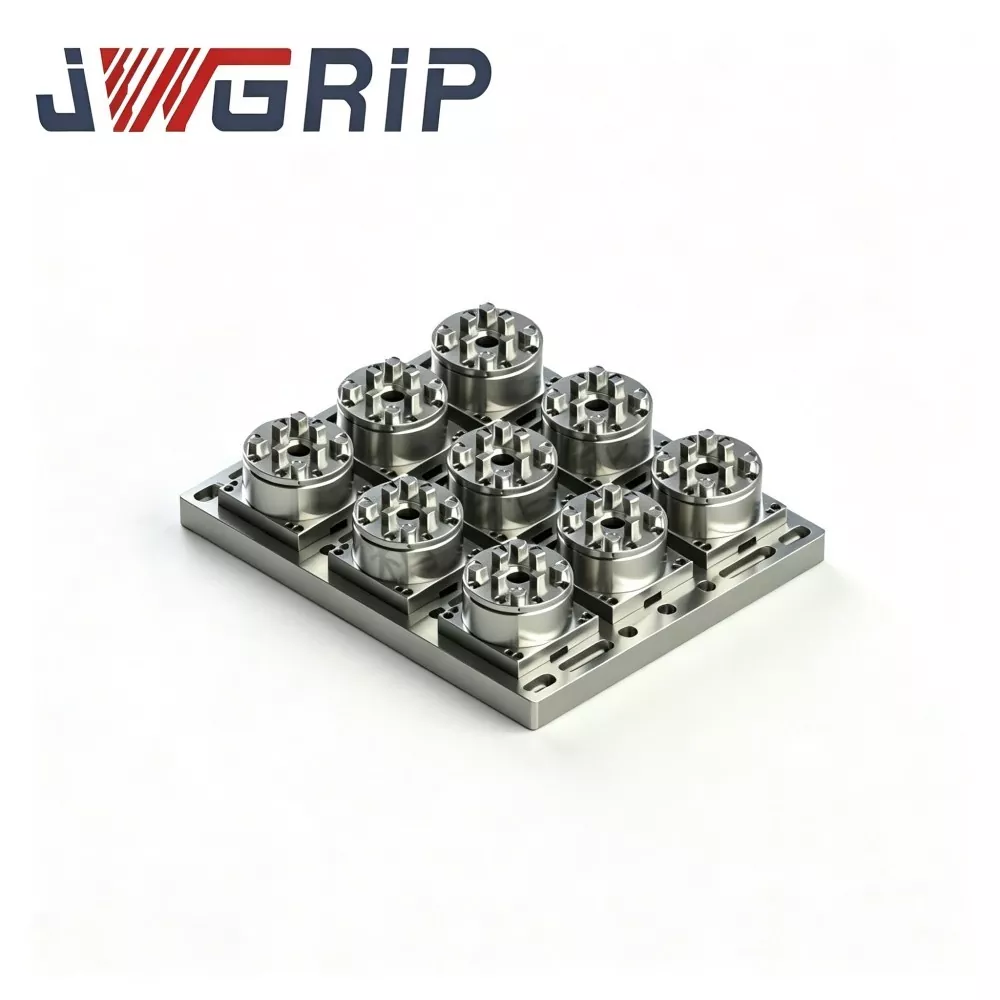

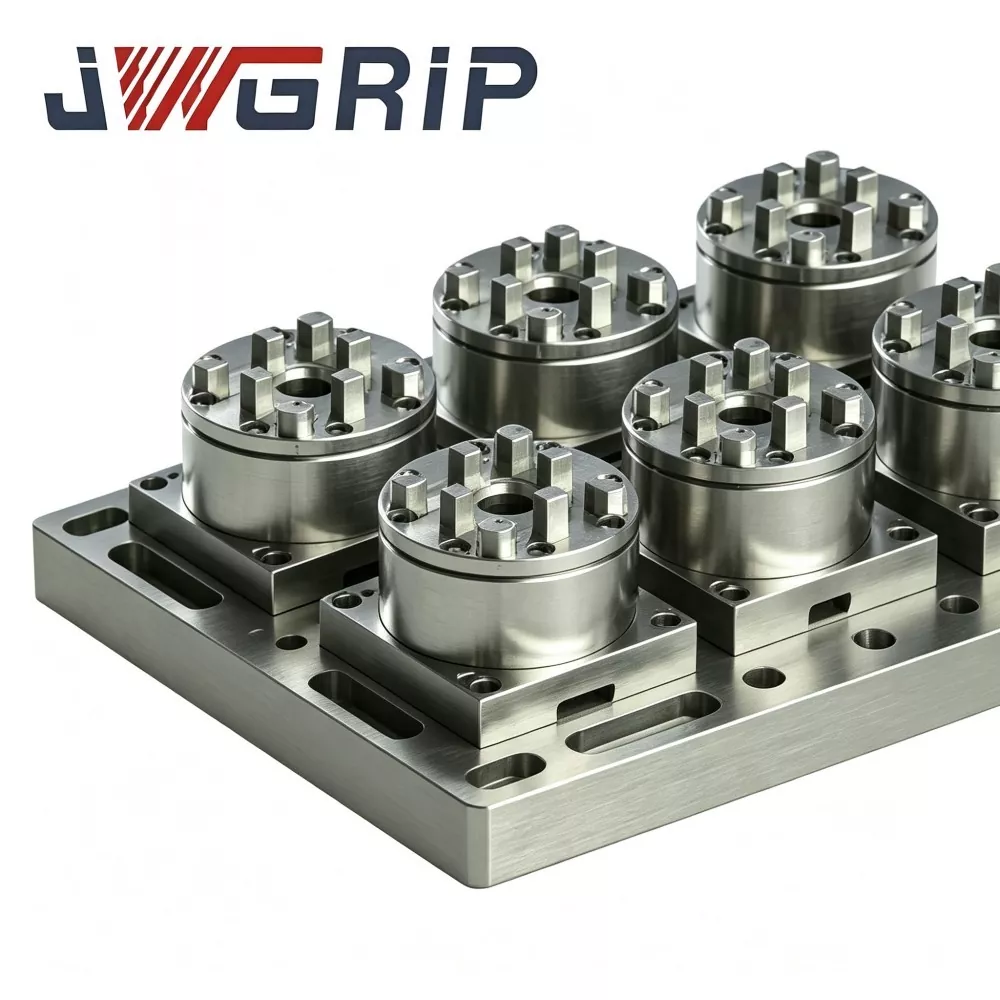

R-Type 9-in-1 Pneumatic EDM Chuck

This high-performance R-Type 9-in-1 Pneumatic EDM Chuck is forged from high-quality alloy steel and equipped with a built-in failsafe mechanical locking mechanism, achieving ultra-high repeat positioning accuracy up to ±0.005mm. All key locating surfaces undergo strict stress-relieving aging treatment and ultra-precision grinding processes to stabilize long-term positioning performance and structural rigidity during high-frequency quick-change cycles. The optimized built-in locking structure effectively prevents clamping loosening caused by sudden air supply fluctuation, ensuring safe and reliable electrode and workpiece clamping and transfer.

Solving the industry pain points of scattered fixture inventory, high management costs and repeated alignment errors in mixed-variant production, it greatly reduces fixture procurement and inventory investment, simplifies on-site tool management procedures, and maintains consistent ultra-precision clamping accuracy in long-term batch production. It is widely applicable to sinker EDM processing, wire-cut machining and light-duty milling workflows, providing highly integrated, efficient and stable workholding solutions for modern automated precision mold manufacturing workshops.

Addressing the Pain points

Traditional multi-electrode mold-making workflows bring prominent operational troubles for production workshops:

· Factories need purchase, store and manage a wide assortment of independent EDM chucks and electrode holders to match different electrode specifications. Mass discrete clamping components push up overall tool-management expenditure.

· Frequent chuck swapping during production creates extra disassembly and manual alignment workload. Every fixture replacement introduces potential positioning deviation, forming obvious bottlenecks for high-mix low-volume production tasks.

JWGRIP R-Type 9-in-1 Pneumatic EDM Chuck addresses above-mentioned real-site challenges:

1. Nine groups of electrode-holder specifications are integrated into one chuck main-body, removing the necessity for stocking a full set of separate chucks.

2. Key locating surfaces adopt stress-relieving aging treatment and ultra-precision grinding to stabilize long-term positioning performance.

3. Built-in failsafe mechanical locking construction stops clamping loosening triggered by unexpected air-supply fluctuation.

4. Offline electrode presetting and cross-station transfer are supported for automated production-cell deployment. Fixture-inventory cost decreases greatly while on-site tool administration becomes simpler.

5. It sustains consistent ±0.005 mm repeat accuracy under high-frequency quick-change cycles, delivering highly-integrated workholding support for sinker EDM, wire-cut processing and light-duty-milling procedures.

Definition & Operating Logic

 JWGRIP R-Type 9-in-1 Pneumatic EDM Chuck is a dedicated quick-change workholding system built for electrical discharge machining and precision light-milling scenarios:

1. The “R-Type” label means full compatibility with widely-accepted R-style electrode-holder interface standard for seamless connection with existing on-site tooling.

2. “9-in-1” stands for capability to accept nine different electrode-shank sizes and holder configurations, removing extra adapter-collar or multi-chuck requirements.

3. Pneumatic actuation enables fast electrode swap by push-button or foot-pedal trigger. Internal precision-ground gripping collet system guarantees concentricity and repeatability within ±0.005 mm.

Core safety-oriented mechanical principle:

· It applies “mechanical locking with pneumatic release” logic. Spring-loaded mechanical structure undertakes clamping function while compressed air only serves unlocking purpose.

· When air pressure disappears, mechanical springs still keep reliable clamping force. This failsafe characteristic is critical for unattended lights-out manufacturing.

· Compared with manual chucks subject to operator-driven torque variance, this pneumatic unit outputs uniform clamping force for every single clamping cycle. Standard shop air of 5-6 bar is required for normal operation.

Functional Strengths

1. 9-in-1 Multi-spec Compatibility: Single-body Multi-holder Support One chuck covers nine electrode-holder configurations including R-type, E-type and diverse round-shank electrodes. Users cut tooling procurement expense and storage footprint. Operators switch electrode types within seconds: insert matched holder and trigger pneumatic release. No time wasted searching different spare chucks during job setup.

2. Ultra-fast Pneumatic Quick-swap for Higher Spindle Uptime Electrode change-over completes within under 3 seconds by foot-pedal or push-button control. Collet opens pneumatically for holder exchange. For high-mix production environments, quick-change workholding can cut setup time up to 90 %, effectively lifting machine spindle utilization ratio.

3. Failsafe Spring-driven Mechanical Locking Pure-air-driven chucks lose clamping force once air supply fails. Our mechanical-spring-loaded lock with pneumatic release holds clamping force even after air-pressure vanishing. It avoids electrode displacement, tool damage and scrapped parts in unattended machining.

4. Trustworthy ±0.005 mm Repeat-positioning Performance Guaranteed repeat positioning accuracy reaches ±0.005 mm. Micron-level stable electrode positioning removes frequent re-checking work. Consistent datum reference stays effective across presetting station, milling machine and EDM equipment for whole production workflow.

5. Fully-sealed Construction Suited for Demanding EDM Workshop Environment Full sealed main-body safeguards inner components against dielectric fluid, carbon sediment and metallic debris contamination. Service-life gets extended and routine-maintenance burden drops. For WEDM usage, open outer geometry will not obstruct wire travel paths, while locating surfaces remain easy-to-clean.

6. Premium Alloy-steel Raw Material & Standardized Heat-treatment Chuck housing and key internal components adopt high-grade alloy-steel, precision ground and case-hardened up to HRC 58-62. Excellent anti-wear property and dimensional stability sustain long continuous-run production.

CompleteProduction Flow

 All JWGRIP R-Type 9-in-1 Pneumatic EDM Chucks are manufactured and inspected at our Dongguan-based factory with imported high-end machine-tools and metrology devices:

1. Raw-material incoming check: High-quality alloy-steel billets go through material certification and chemical-composition analysis to guarantee stable mechanical property.

2. Precision forging / casting: Shape blank structure for subsequent machining operations.

3. 5-Axis Precision Machining: Critical taper bores and locating faces are processed on Japan-origin Mazak 5-axis machining centers to realize precise dimension, qualified geometry and fine surface finish for functional surfaces.

4. Multi-run Precision Grinding: Inner taper holes and datum planes are finished by Japan OKAMOTO and Taiwan Fuyu precision grinders, achieving micron-grade tolerance to support final ±0.005 mm repeatability target.

5. Heat-treatment: Core components receive case hardening plus tempering, reaching target hardness HRC 58-62 for outstanding wear-resistance.

6. Component assembly and functional running-in: Complete chuck assembly; test air-pressure response, clamping-force uniformity and smooth mechanical actuation.

7. CMM Full-item inspection: Every single finished unit gets measured on ZEISS or Hexagon high-precision coordinate measuring machines. Official inspection certificate with unique traceability data is delivered with each shipment.

Core Competencies

1. Full-chain In-house Manufacturing Capacity Different from competitors outsourcing critical processing steps, JWGRIP holds full production control. Our workshop is equipped with Mazak (JP), OKAMOTO (JP), Fuyu (TW) machine-tools. Full in-house workflow ensures tight tolerance control, consistent batch-quality and fast response for custom-request projects.

2. Rigorous 100 % Full-unit Inspection Standard Many manufacturers only test sampling batches. Every JWGRIP pneumatic EDM chuck is individually verified on ZEISS / Hexagon CMM equipment. Valid inspection certificate is provided for each unit, delivering traceable quality assurance.

3. Professional Engineering Team & Custom-accepting Policy Our engineering group accumulates rich experience on workholding, EDM process and automation integration. We assist clients on chuck-selection matching for sinker EDM, WEDM or light-milling scenarios. OEM-ODM custom services are supported including special interface modification, dimension adjustment and customer logo marking.

4. Factory-direct Pricing Without Middleman Markup Located in Dongguan precision-manufacturing hub, JWGRIP provides factory-direct price. Intermediate markup gets eliminated while original quality-standard remains unchanged. Logistics arrangement can be coordinated for global customers.

5. Cross-industry Project Reference Records Our products have been supplied for aerospace, automotive, mold-making and precision-engineering end-users. Mass practical production cases prove stable repeatable performance under harsh real-world manufacturing conditions.

Packaging

Each JWGRIP R-Type 9-in-1 Pneumatic EDM Chuck is housed inside custom high-strength protective foam-filled hard case. Matching accessories and full set technical documentation are included inside package to avoid transit collision damage.

After-sales support items:

①　Remote technical consultation via phone, email and video conference

②　Long-term spare-parts supply for routine maintenance

③　On-site application guidance for maximizing chuck performance

④　Paid on-site-service is available for large-scale installation projects

FAQ

Q1: What is the difference between manual and pneumatic EDM chucks?

A1: Manual chucks suit low-frequency job-change scenarios with easy operator access; simple diagnosis, fit for shops building small holder library. Pneumatic chucks show advantages for frequent change-over, large-quantity electrode handling or future robot / semi-automatic-cell integration. Select pneumatic based on real workflow demand instead of only pursuing higher-grade configuration.

Q2: What is the MOQ for this pneumatic chuck?

A2: MOQ is 1 piece. JWGRIP permits sample procurement so customers can validate precision and reliability before placing large-volume orders.

Q3: Can this chuck work with my existing machine?

A3: It fits equipment adopting R-Type (ITS-50) interface standard. Please share existing holder model, bottom-side photo and measured drawing. JWGRIP technical team will complete compatibility assessment before order confirmation.

Q4: What repeat-positioning accuracy can be guaranteed?

A4: Guaranteed repeat positioning accuracy is ±0.005 mm, validated on ZEISS CMM equipment. You may request original inspection report together with order goods.

Q5: Do you provide OEM-ODM customization service?

A5: Yes. JWGRIP acts as one-stop workholding solution provider. Custom requests including special logo printing, special dimension modification and dedicated interface configuration are accepted.

Q6: Which maintenance routines extend pneumatic chuck service-life?

A6: This unit adopts sealed-type construction for low-maintenance requirement. Keep locating surfaces and outer body clean; maintain clean-dry filtered air-source at 5-6 bar; lubricate moving parts following maintenance schedule; periodically inspect O-ring wearing condition.

Q7: Can R-Type 9-in-1 Pneumatic EDM Chuck run under milling working condition?

A7: It applies to light-duty electrode milling, graphite machining and copper-electrode finishing plus small-size precision-part processing. For heavy-cut milling tasks, consult JWGRIP engineering team for specification confirmation.

Q8: What happens if air pressure drops during operation?

A8: It uses failsafe mechanical spring-loaded lock with pneumatic release. Clamping force is mechanically sustained even when air-pressure disappears, electrodes stay firmly clamped.

Q9: Is cross-machine holder transfer supported between EDM and milling equipment?

A9: Yes. R-Type (ITS-50) interface realizes datum transfer across different machines. You still need to evaluate chip accumulation, coolant residue and repeated wash-down condition for your on-site process route.
