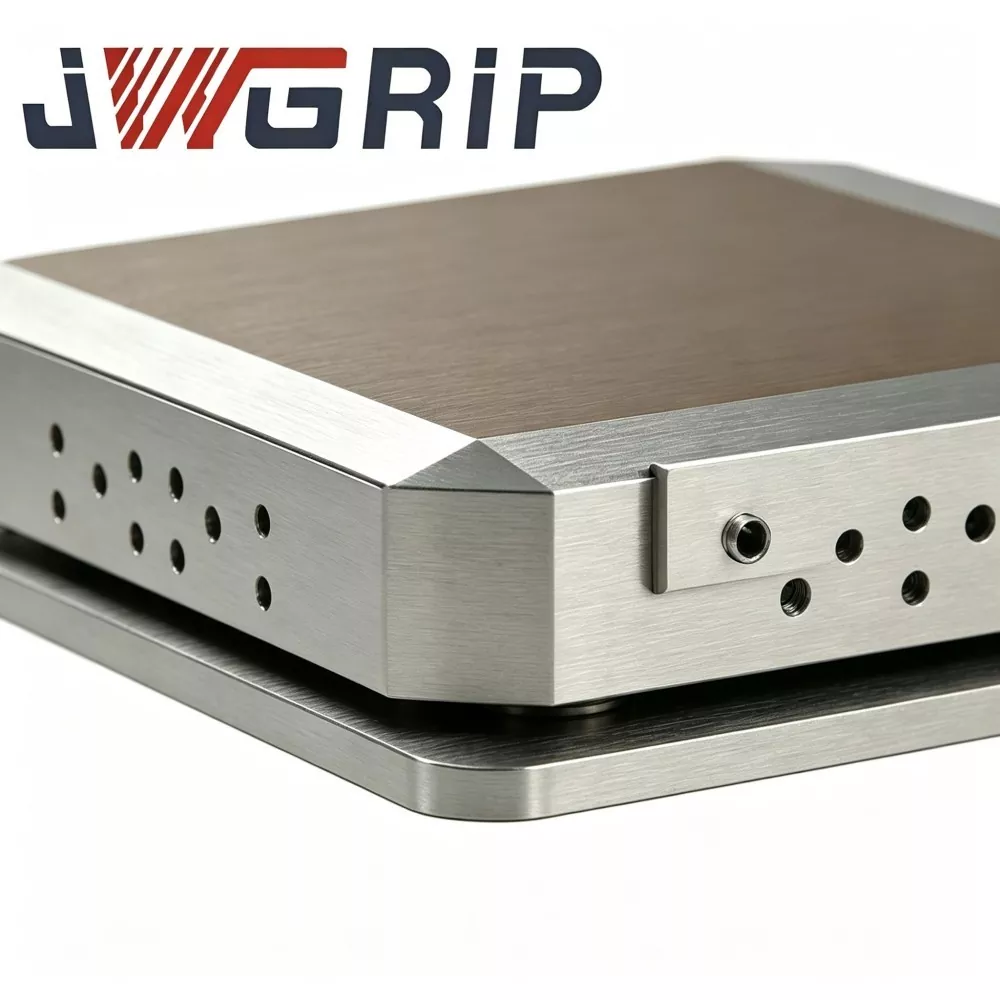

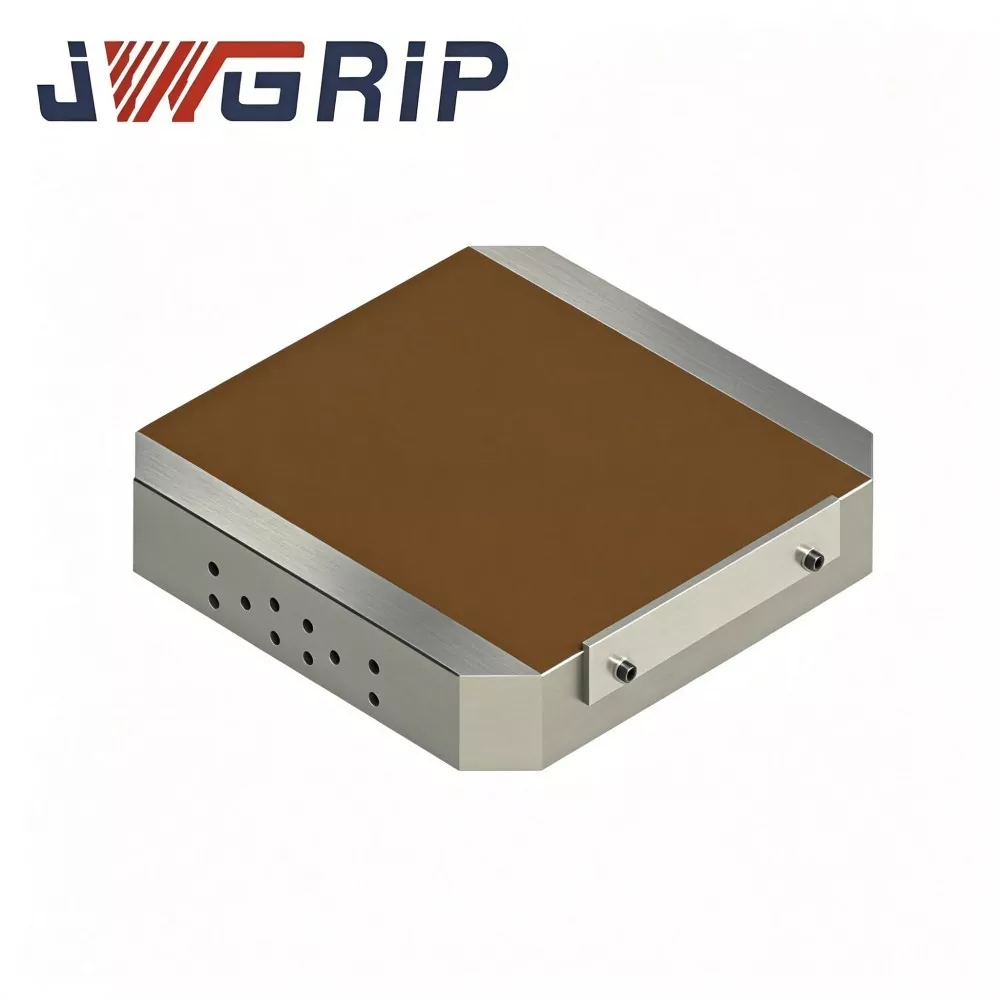

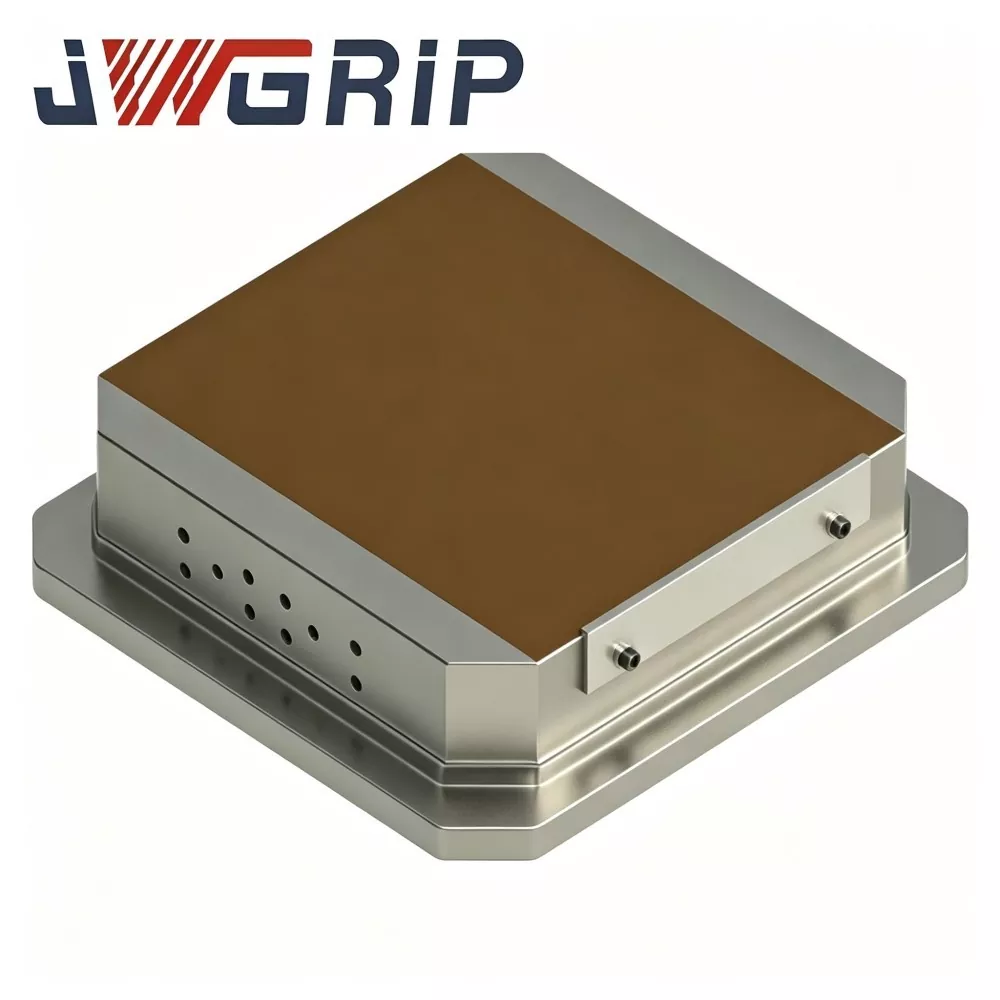

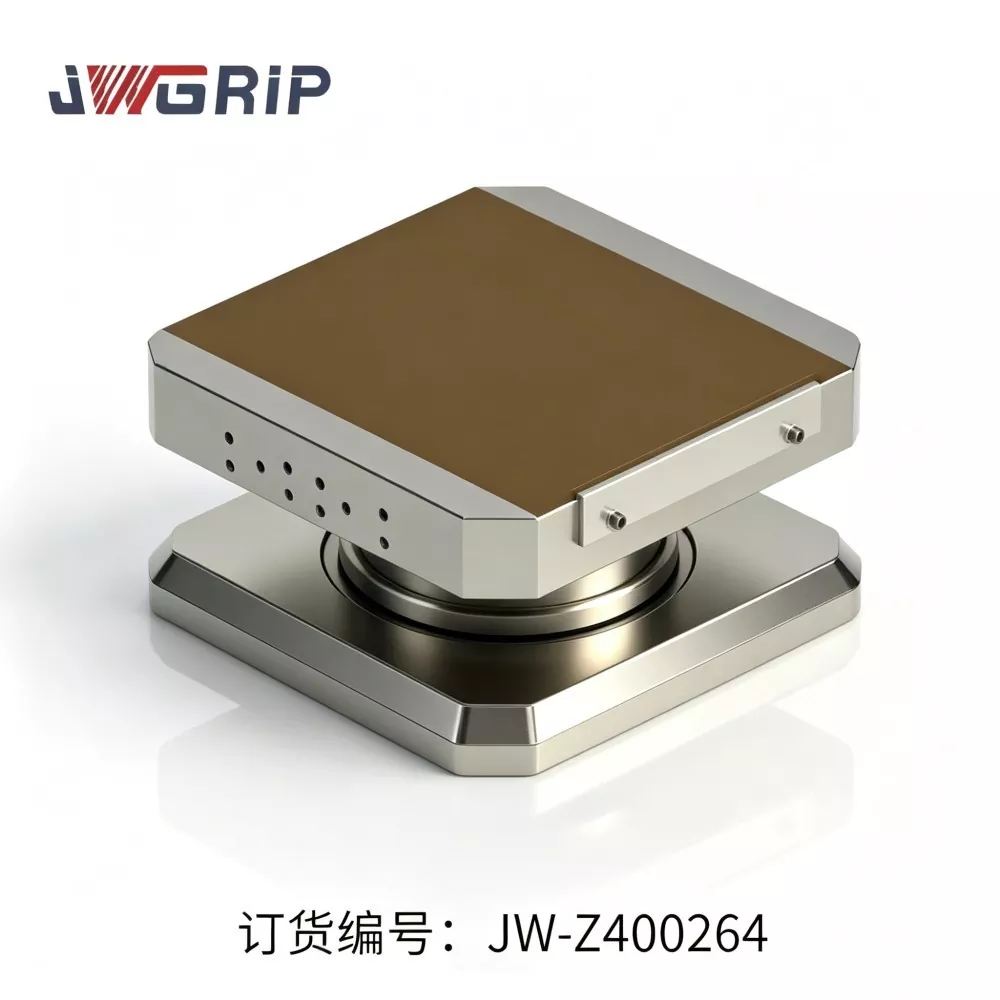

UPC Magnetic Zero Point Pallet

UPC Magnetic Zero Point Pallet enables non-deforming magnetic holding for ferromagnetic workpieces while retaining all merits of zero-point fast pallet swap. Conventional production often uses mechanical vises or standalone magnetic chucks, bringing repeated alignment work, jaw-induced part indentation and accumulated assembly error from on-site combined installation.

JWGRIP finishes base-plate processing, stress-relief aging, ultra-precision grinding of UPC positioning seats and magnet-module assembly in-house. Sealed internal barriers shield coils and zero-point locking parts from cutting fluid and metal chips. Workpieces can be magnet-pre-set off-machine; after docking with on-machine UPC zero-point base, pallet locks and positions within seconds.

Widely used for thin-wall steel components, mold steel plates and ferromagnetic mold inserts, it removes jaw-caused workpiece distortion and greatly shortens fixture-swap cycle for mold-making and precision-processing manufacturers.

Practical Deficiencies

JWGRIP UPC Magnetic Zero Point Pallet is a composite-function zero-point quick-change fixture pallet. It integrates standard UPC zero-point interface plus permanent-magnet clamping capacity and is fully compatible with mainstream UPC zero-point chucks, delivering both fast pallet positioning and magnetic workpiece holding.

Traditional zero-point pallets rely on vises and clamping plates for workpiece fixation. Thin-plate and irregular-shaped ferromagnetic parts frequently suffer deformation, surface bruising and clamping interference. Ordinary magnetic chucks lack standardized zero-point quick-change interfaces. They cannot link into automated FMS flexible production lines. Every change-over requires full realignment, wasting plenty of machine standby time.

1. Bottom UPC interface connects to UPC zero-point chuck and achieves ≤0.002 mm repeat positioning for instant pallet locking

2. Top surface adopts a high-precision permanent-magnet clamping face; ferromagnetic workpieces are secured purely by magnetic force without bolts or vises, lowering clamping distortion and clamping-interference risks

3. Pallet body adopts composite construction combining hardened alloy steel and anodized aluminium alloy. Top-bottom faces are precision-ground to secure flatness and parallelism, balancing structural strength, lightweight property and long-term precision retention.

It fits vertical machining centers, 5-axis machines, EDM and surface grinders. It supports manual swap as well as robot-driven loading-unloading flexible cells and serves as upgrade composite fixture for mold-making and precision-component processing.

Operating Principle

JWGRIP UPC Magnetic Zero Point Pallet consists of UPC-standard zero-point locating base, permanent-magnet clamping face, magnetic on-off switch, positioning docking bosses, handling handles and integrated sealing-protection assemblies.

①　Bottom section: UPC-system standard docking structure, directly locking onto UPC zero-point chuck

②　Top section: High-precision permanent-magnet pole face with optimized pole layout for even magnetic-force distribution

③　Control unit: Magnetic on-off switch to activate or de-energize magnetic attraction.

Two-tier working logic：

1. Zero-point positioning layer

Pallet bottom UPC docking structure engages zero-point chuck. UPC system completes fast positioning and pull-down locking for pallet on machine table. Pallets can be swapped without repeated realignment.

2. Magnetic-clamping layer

Switch magnetic function ON. Homogenized strong magnetic force holds ferromagnetic workpieces; no extra clamping plates are needed. After finishing machining, switch magnetism OFF for easy workpiece removal.

Product Strengths

1. Dual-function integrated construction of UPC zero-point plus magnetic clamping

Single-unit pallet realises both zero-point quick-swap and magnetic workpiece holding. Separate magnetic chuck and zero-point pallet are no longer required, simplifying fixture inventory and cutting production-line investment.

2. Dual-side precision-ground surfaces

Bottom face guarantees intimate fit against UPC chuck; top magnetic face secures workpiece flatness. It reduces workpiece clamping distortion and improves final machined surface quality.

3. Stable permanent-magnet output

Optimized pole arrangement delivers balanced clamping force. Zero power-supply heating risk. Magnetism persists even under power-failure state. Stable magnetic holding suppresses cutting-induced vibration and extends tool service life.

4. Clamping-plate-free mounting eliminates interference

Thin-wall parts, electrodes and mold inserts can be held magnetically directly. It avoids surface bruising and machining blind zones brought by pressure-plate clamping.

5.Standard UPC interface ready for automation

Compatible with robot-driven FMS flexible manufacturing lines. Supports automatic pallet gripping and swapping, lowering machine idle ratio and lifting equipment utilization.

6. Built-in side handling handles plus sealed housing

Handles facilitate manual transportation. Sealed-body design resists coolant and chip ingress. OEM customisation is supported for dimension, pole layout and UPC docking-point modification.

Multi-Field Application Coverage

1. Mold-making industry

Mold electrodes, mold inserts and small mold cores; thin-plate mold-part and EDM processing. Magnetic clamping removes pressure-plate interference, combined with zero-point pallet for fast mold change-over.

2. Precision thin-plate component machining

Thin-wall ferrous workpieces prone to vise-induced deformation. Suitable for milling and grinding tasks to sustain stable dimensional consistency.

3. FMS flexible automated production lines

Robot-driven automatic loading-unloading with multi-pallet circulation. UPC zero-point enables fast pallet swap while magnetic face realises rapid workpiece clamping.

4. EDM, WEDM-like processing & surface grinding

Fast clamping for electrodes and workpieces, shortening setup-and-alignment duration.

5. High-mix low-volume precision-part workshops

 Frequent production change-overs reduce fixture disassembly-and-debugging workload and raise overall processing efficiency.

Installation & Commissioning Guidance

1. Thoroughly clean contact faces of UPC zero-point chuck and pallet bottom before installation. Remove chips and cutting-oil residue to prevent positioning drift.

2. Place pallet onto UPC zero-point chuck, activate zero-point locking function and verify firm fastening and repeat-positioning performance.

3. Maintain cleanliness of magnetic pole surface; wipe away chips before machining. Residual chips will lift workpiece locally and degrade clamping reliability.

4. Position workpiece on magnetic pole surface with enough contact coverage across multiple magnetic poles to secure holding force; avoid contact only along workpiece edges.

5. Switch magnetism ON and confirm solid workpiece holding before machine startup. Always switch magnetism OFF before detaching workpieces after machining.

6. For heavy-cutting conditions, mount lateral locating stoppers to counteract lateral cutting force and prevent workpiece sliding.

7. Periodically inspect magnetic-pole surface for scratches and dents; keep UPC docking zone clean all the time.

Fault Diagnosis & Countermeasures

1.Symptom: Workpiece slides in machining process

Possible causes: Insufficient workpiece-to-magnetic-surface contact area; chips trapped on magnetic surface; excessive lateral cutting force; magnetism not fully switched ON.

Resolution: Expand effective contact area; clean chips on magnetic surface; add lateral stoppers; double-check magnetic-switch status.

2.Symptom: Zero-point positioning deviation for pallet

Possible causes: Chips on pallet bottom or chuck mating face; abnormal locking pressure inside UPC chuck; dents / damage on pallet bottom ground face.

Resolution: Fully wipe contact surfaces; inspect zero-point-chuck locking mechanism; repair or replace pallet if bottom surface gets damaged.

3.Symptom: Magnetic holding force drops

Possible causes: Heavy chip accumulation on magnetic pole surface; pole-surface mechanical damage; workpiece is non-ferromagnetic material.

Resolution: Clear accumulated chips; inspect pole-surface condition; confirm workpiece material is ferromagnetic.

4.Symptom: Minor workpiece distortion after machining

Possible causes: Excessive magnetic attraction deforms thin-wall workpiece; foreign particles sandwiched between workpiece and magnetic surface.

Resolution: Clean magnetic surface; adopt appropriate magnetic-force setting for thin-wall workpieces; deploy auxiliary supporting structures.

Packaging & Delivery Specification

Every JWGRIP UPC Magnetic Zero Point Pallet receives anti-rust treatment. Magnetic pole surface is covered by protective film and packed inside independent PE bag.

Small-batch orders: Packed in rigid carton boxes.

1. Bulk orders: Shock-proof wooden cases with buffer partition are adopted, protecting precision-ground faces and UPC docking construction. User manual is included inside each package.

2. Standard lead-time: 10-16 working days. Selected standard sizes are in stock.

3. Free sample evaluation service is available; sample freight shall be undertaken by buyers.

4. OEM customisation supports modification for dimension, pole-arrangement layout and UPC docking-point configuration.

FAQ

Q1: Can UPC Magnetic Zero Point Pallet clamp aluminium or copper workpieces?

A1: No. It adopts permanent-magnet clamping principle and only fits ferromagnetic steel workpieces. Aluminium, copper and non-magnetic stainless steel need vises or mechanical clamping plates.

Q2: Will magnetism disappear once power supply cuts off?

A2: No. This is purely permanent-magnet construction with zero power consumption. Magnetic force persists under power-loss condition; magnetism can only be deactivated by manual magnetic-switch operation.

Q3: Can this pallet directly substitute conventional UPC zero-point pallets?

A3: Yes. Bottom UPC docking interface keeps full compatibility. If your zero-point chuck complies with UPC standard, direct swap is feasible without machine modification.

Q4: Can I keep on using pallet with scratches or dents on magnetic surface?

A4: Shallow scratches are acceptable. Deep dents will locally lift workpiece and cause unstable clamping. Repair or replacement is required in such circumstances.

Q5: Is magnetic-type pallet suitable for heavy-duty cutting?

A5: It fits medium-cutting scenarios. For heavy-cutting with large lateral force, lateral limit stoppers are strongly recommended to avoid workpiece sliding.
