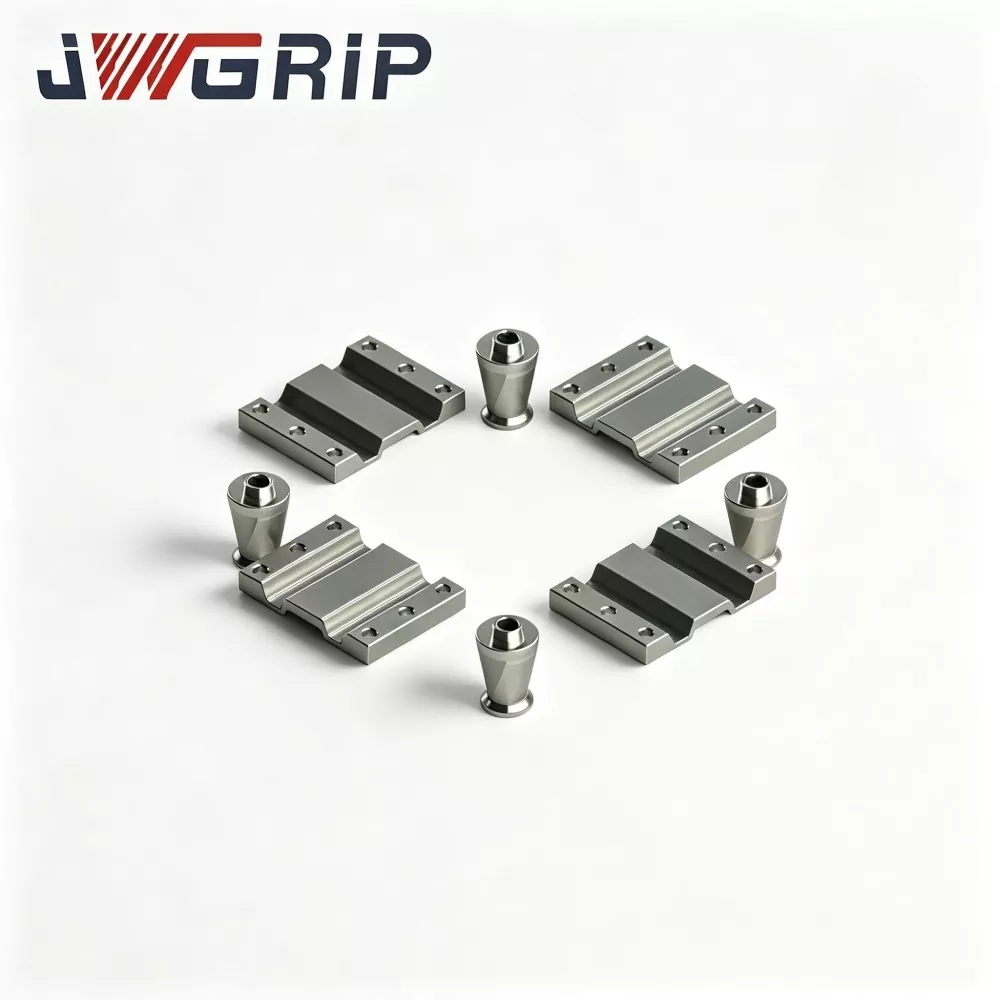

UPC Centering Segments for Zero Point Clamping System

UPC Centering Segments for Zero Point Clamping Systems are key precision wearing parts dedicated to zero-point chuck positioning and centering compensation. All products undergo strict raw material inspection, standardized vacuum heat treatment and ultra-precision grinding of key working surfaces, featuring high hardness, excellent wear resistance and precise geometric tolerance. They effectively compensate for internal wear of zero-point chucks, sustain stable repeat positioning accuracy and ensure consistent clamping precision of the whole zero-point system.

Compatible with CNC machining centers, FMS flexible production cells and mold processing lines, these standard and customized centering segments are ideal spare parts for daily maintenance and parts replacement of zero-point fixtures. Supporting small-batch trial orders, bulk procurement and OEM customized processing, they provide reliable precision guarantee for long-term stable operation of automated clamping and positioning systems for overseas industrial manufacturing enterprises.

Product Details

UPC Centering Segments for Zero Point Clamping Systems are core internal functional components for UPC zero-point chucks. Installed inside chuck jaw cavities, they deliver pallet centering and radial alignment. As wear-prone critical parts, they guarantee high-precision positioning for zero-point systems.

Under long-term high-frequency opening-closing and repeated pallet insertion-removal cycles, contact surfaces inside zero-point chucks suffer continuous impact and friction. Gradual wear causes repeat-positioning accuracy degradation, leading to positioning deviation, pallet jamming and incomplete locking. Traditional solutions require full chuck replacement, which brings high procurement cost and long production-line downtime. The split replaceable design of UPC centering segments allows replacement of only the worn centering part without changing the whole chuck body. It greatly cuts maintenance cost and shortens downtime for repair.

Strictly complying with UPC zero-point system dimensional standards, these segments perfectly match original UPC zero-point chuck cavities. No machining modification is required for chuck bodies; simple disassembly and replacement are available. Manufactured from high-hardness alloy steel with quenching-tempering heat-treatment and precision grinding, they feature outstanding wear-resistance and impact-resistance. They endure workshop coolant and metal-chip environments and suit high-frequency change-over of automated FMS production lines. They can serve as factory-fitted spare parts for new chucks or replacement components for worn-out chucks.

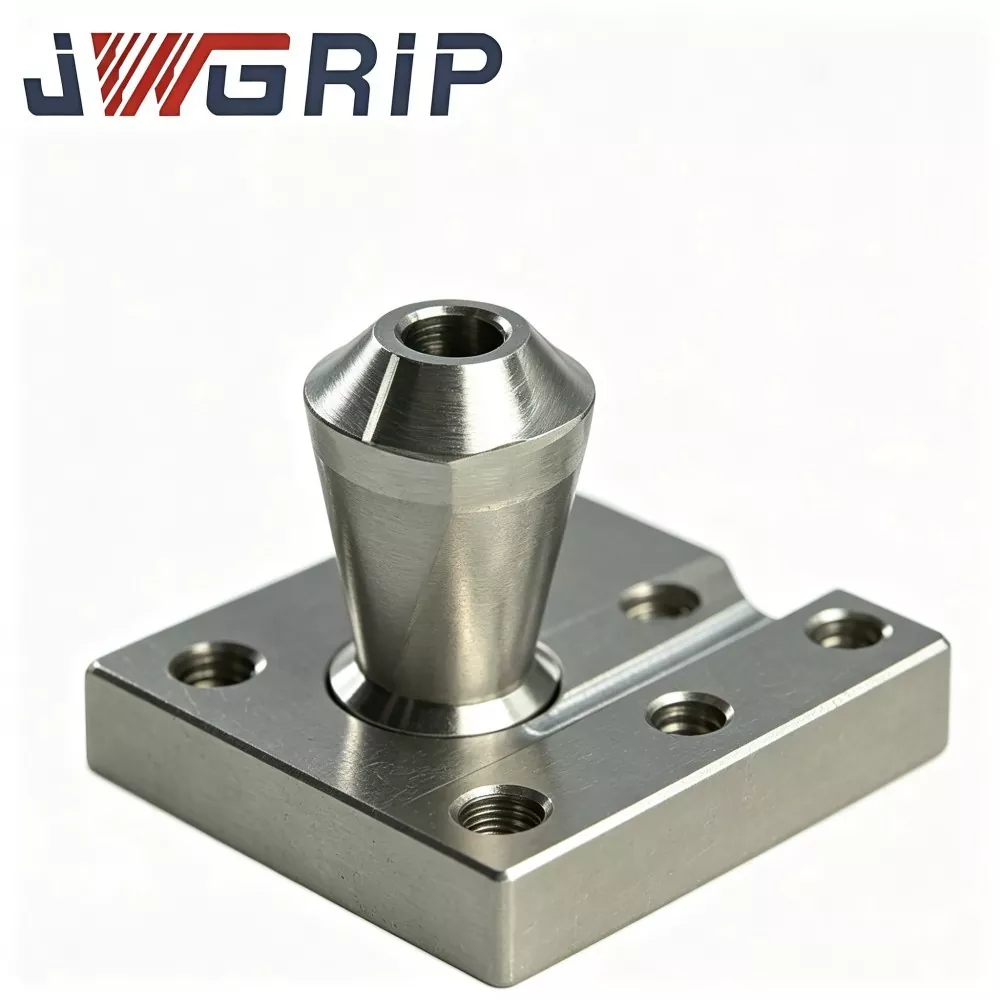

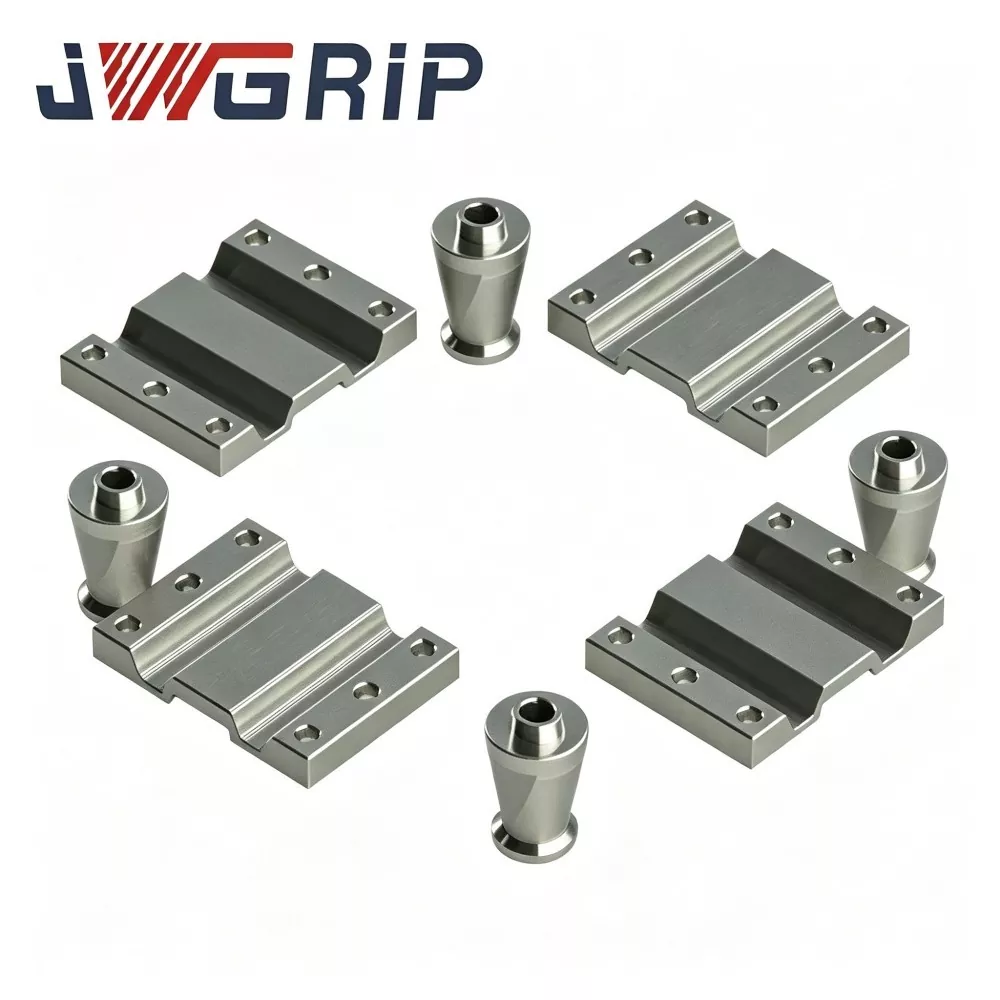

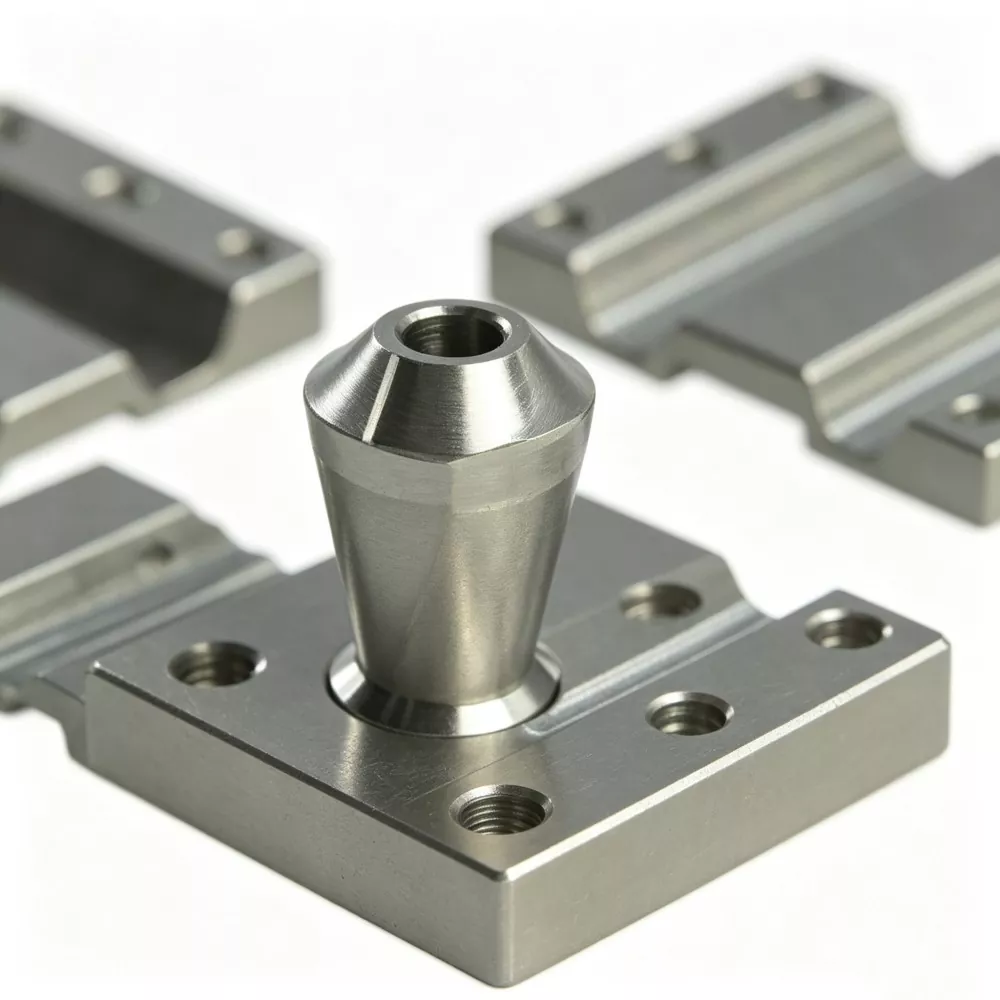

Structural Construction

1. Locating-guide working surface

2. Mounting locating boss

3. Fixing mounting holes

4. Hardened wear-resistant surface layer

5. These split block-shaped parts are embedded into jaw slots inside UPC zero-point chucks and secured by internal chuck locking mechanisms.

Working Principle:

When a pallet is loaded into the zero-point chuck, precision guide slopes of centering segments contact pallet bottom locating structures to achieve radial centering and limit radial pallet offset, ensuring accurate central position for pallet entry. Before chuck pull-down locking, centering segments complete preliminary guiding and centering to provide correct alignment reference for locking mechanisms. After chuck locking, centering segments work together with chuck jaws to maintain pallet central positioning datum.

Core Product Advantages

1. Split replaceable structure.

When chuck positioning surfaces wear out, only centering segments need replacement instead of whole zero-point chuck, lowering maintenance procurement cost and reducing equipment downtime.

2. Strict dimension matching for UPC standard cavities.

Directly fit original UPC zero-point chucks without chuck-body modification. Easy disassembly for new-chuck matching or worn-chuck repair.

3. High-hardness alloy-steel material with precision grinding.

HRC58-62 surface hardness delivers excellent wear and impact resistance. It withstands high-frequency pallet insertion-removal impacts and maintains locating-surface precision for longer service life.

4. High-precision guiding-centering working surfaces.

Sloped guide structures ensure radial alignment during pallet loading, maintaining zero-point repeat-positioning accuracy and reducing pallet jamming and alignment offset failures.

5. Wide-range application.

Suitable as factory-fitted spare parts for new chucks or upgrade-replacement components for existing chucks. Compatible with manual change-over and robot-driven FMS automated production lines.

6. OEM non-standard customization is supported.

External shape, slope angle and mounting-hole layout can be revised for special custom-version UPC zero-point chucks.

Applicable Working Conditions

FMS flexible-automation production lines: Robot-driven automatic pallet change-over with high-frequency chuck opening-closing. Centering segments guarantee stable pallet alignment and reduce docking failures.

Mold-processing workshops: Frequent pallet change-over for mold production. Spare-part replacement for long-running zero-point chucks to preserve zero-point positioning accuracy.

Zero-point fixture matching for CNC machining centers: Vertical machining centers and 5-axis machines. Spare-parts supply for new chucks and replacement for worn-out chucks.

Mass-production workshops for precision parts: Multi-pallet rotating processing with frequent pallet handling. Large-volume stock-up is suitable for high-consumption scenarios.

Fixture maintenance-retrofit projects: Restore positioning performance of aged UPC zero-point chucks by replacing centering segments, avoiding full chuck scrapping.

Maintenance Points

Before disassembly-assembly: Power-off and depressurize zero-point chuck. Clear metal chips, coolant and oil inside chuck cavities to prevent mis-assembly of centering segments caused by foreign particles.

Install new segments: Remove old centering segments and clean mounting slots. Embed new segments into chuck-body slots. Confirm locating bosses fully fit slots without tilting or offset.

Tightening torque: Fasten fixing screws with specified torque. Avoid over-tightening which causes segment deformation and damages locating-surface precision.

Trial run: After assembly, load corresponding UPC pallet for trial operation. Verify smooth pallet loading, locking and unloading, and check centering-alignment performance for no jamming or offset.

Routine maintenance: Periodically inspect segment working surfaces for scratches, wear and dents. Clear metal chips inside chuck cavities regularly to prevent chips being sandwiched between segments and pallets.

Scrap criteria: Do not continue using segments with obvious wear or damage, as this will continuously degrade zero-point positioning accuracy and cause poor machining dimensional quality.

Common Fault Troubleshooting

1. Symptom: Pallet jamming during loading and poor insertion-removal smoothness

Troubleshooting: Worn-deformed centering-segment working surfaces; metal-chip residues inside chuck cavities; mis-installed centering segments.

Solution: Replace severely-worn segments; thoroughly clean chuck cavities; re-assemble centering segments for proper fitting.

2. Symptom: Degraded zero-point repeat-positioning accuracy and dimensional deviation in machining

Troubleshooting: Wear on centering-segment locating surfaces; loose fixing screws of segments; deformed chuck-body cavity.

 Solution: Replace worn centering segments; retighten fixing screws; repair chuck-body cavity if deformation occurs.

3. Symptom: Radial pallet wobble after chuck locking

Troubleshooting: Enlarged clearance from centering-segment wear; segments not fully embedded into slots; faults in chuck locking mechanisms.

Solution: Replace centering segments; re-adjust segment assembly position; inspect zero-point chuck locking mechanism status.

4. Symptom: Chipping or impact damage on segment surfaces

Troubleshooting: Hard pallet impact against chuck; extrusion by hard metal chips; improper handling during disassembly-assembly.

Solution: Replace segments with chipping damage; optimize pallet loading speed for robots or manual operation to avoid high-speed hard-impact collisio

Delivery Instructions

Each UPC Centering Segments for Zero Point Clamping System receives anti-rust treatment. Precision-ground locating surfaces are covered with protective film and packed in individual PE bags.

Small-batch trial-order goods use hard cartons.

Bulk-stock-up orders are packed in shock-proof wooden cases with cushion separators to protect precision-ground locating surfaces, with assembly documentation included.

Standard lead-time: 9-15 working days. Standard-size items are in-stock.

Small-batch trial orders are available with freight borne by buyers. Volume-stock-up price negotiation is supported.

OEM non-standard customization covers external dimension, slope-angle and mounting-hole modification.

After-sales Service

We provide dimension inspection records (available upon overseas buyers' request).

Spare-part assembly guidance and technical consultation are offered to help factories carry out routine maintenance and parts replacement.

Remote online technical guidance for installation and commissioning is available for bulk orders.

Paid on-site commissioning service can be arranged upon special request.

FAQ

Q1: Can UPC Centering Segments for Zero Point Clamping System repair worn-out chuck-body cavities?

A: No. Centering segments only compensate wear on locating working surfaces. If chuck-body cavity suffers deformation or severe damage, segment replacement alone cannot fix the problem; chuck-body repair is required.

Q2: Are centering segments compatible with zero-point chucks of other brands?

A: Standard versions only fit UPC zero-point chucks. Cavity dimensions of other-brand chucks differ; custom-modified segment dimensions are required for compatibility.

Q3: What is service life of centering segments?

A: Service life depends on pallet insertion-removal frequency. For high-frequency automated FMS scenarios, regular inspection is required. Replace segments when wear or scratches appear; there is no fixed service-life value.

Q4: Is zero-point chuck recalibration required after centering-segment replacement?

A: After replacement, perform pallet trial loading to verify smooth operation and positioning accuracy. Recalibrate the whole zero-point system if accuracy anomalies occur.

Q5: Are centering segments consumable parts?

A: Yes, they are wear-prone consumable components. Frequent pallet insertion-removal causes friction wear. Periodic inspection is needed and timely replacement upon wear is required.

Procurement-Selection Notes

UPC centering segments are critical wear-prone internal parts for UPC zero-point chucks. Their core value is restoring chuck positioning accuracy by component replacement, lowering cost of full-fixture replacement.

Model confirmation: Prior to purchase, confirm matching UPC zero-point chuck-cavity model.

New equipment matching: They can be ordered together with chucks as complete sets.

Existing equipment maintenance: Keep a certain stock of spare parts to cope with unexpected production-line downtime.

High-frequency automated workshops: Increase spare-part stock quantity.

Quality focus: When purchasing, pay attention to precision of ground locating surfaces and surface hardness. Low-precision accessories will cause long-term degradation of zero-point system positioning performance.
