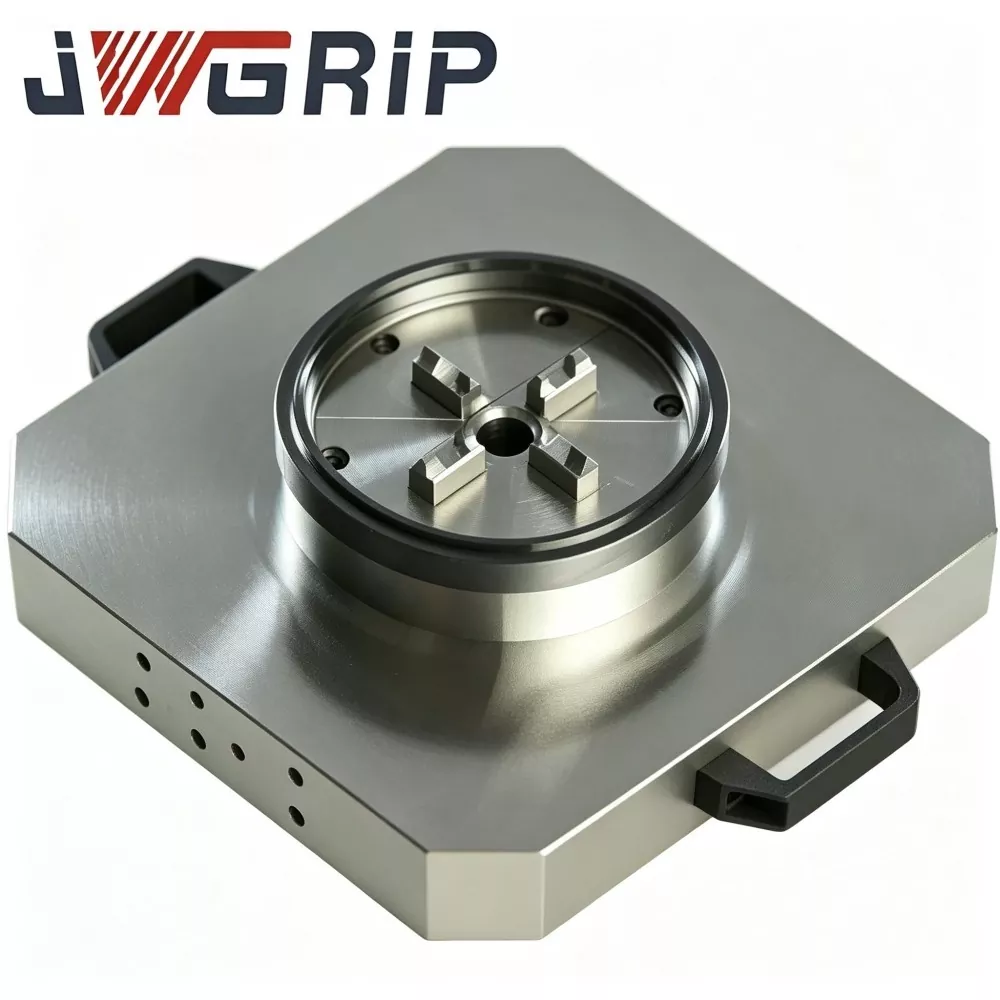

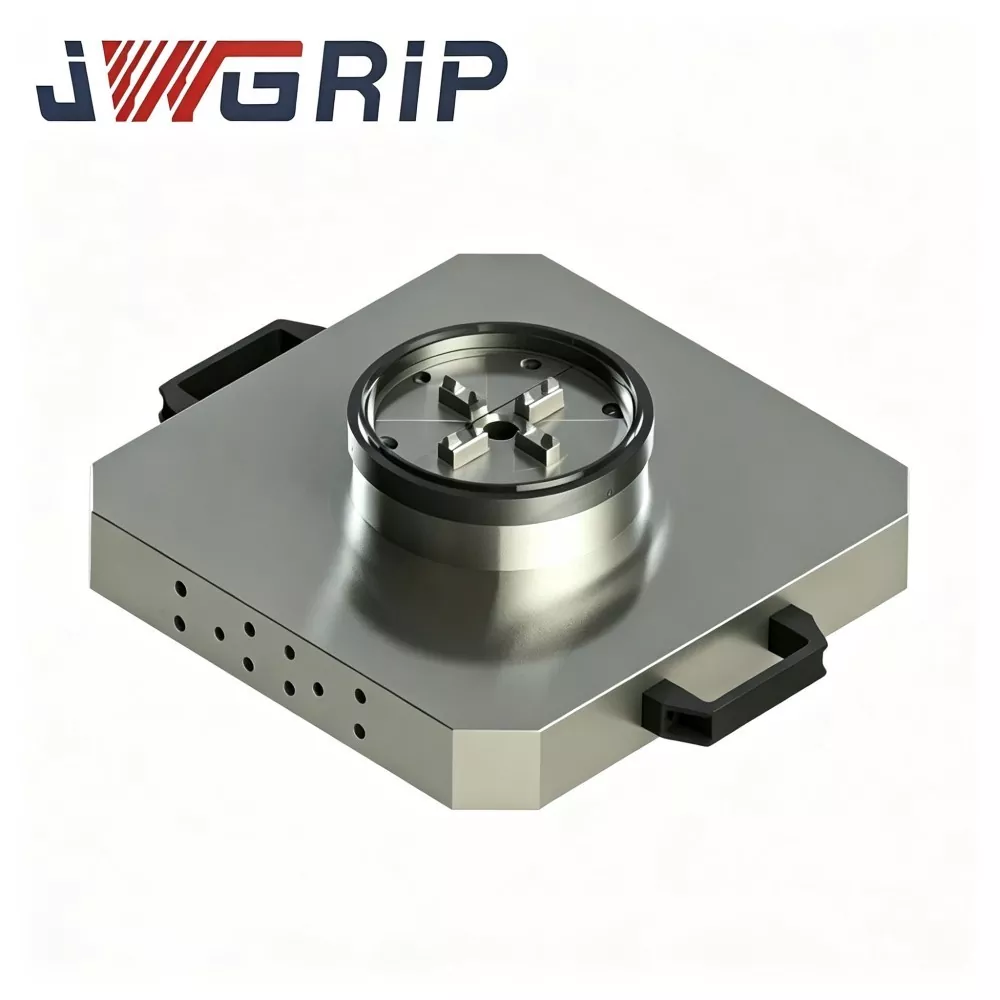

UPC Zero Point Pallet with Power Chuck

The UPC Zero Point Pallet with Power Chuck adopts an all-in-one integrated structural design, realizing organic integration of positioning reference and power clamping units. All core processing procedures including alloy base rough machining, stress-relief aging treatment and ultra-precision grinding of key mating surfaces are completed through one-time clamping and in-house pre-commissioning, effectively reducing cumulative assembly tolerance and delivering stable and consistent positioning accuracy.

Equipped with a multi-layer labyrinth sealing structure, the pallet can effectively block cutting emulsion, metal chips and abrasive particles to protect internal locking and driving components, adapting to long-term heavy-duty cutting working conditions. It supports full offline workpiece presetting and ultra-fast pallet locking and swapping, greatly saving on-site setup and debugging time.

Widely applicable for batch production of automotive shaft-hub parts, hydraulic valve sleeves and circular mold inserts, this integrated fixture standardizes clamping procedures, improves workpiece dimensional consistency, and comprehensively elevates machine tool overall operating efficiency for precision circular component processing.

Working Principle

Setup-time waste has long been one major bottleneck holding back CNC-workshop throughput. Traditional fixtures require manual dial-indicator realignment whenever workpieces or pallets get swapped. Manual adjustment relies heavily on operator experience, bringing unstable positioning precision and lengthy non-productive auxiliary hours.

The UPC Zero Point Pallet with Power Chuck is engineered for exactly this real-world manufacturing bottleneck. Different from ordinary zero-point pallets offering only passive positioning, this unit merges zero-point quick-change base and built-in power chuck into one piece. Once the pallet locks onto zero-point bases, the integrated power chuck can directly grip round workpieces or custom-adapted fixtures without extra alignment work.

Drawing on abundant on-site data collected from automotive, hydraulic-component and mold-part manufacturers, JWGRIP adopts a fully-sealed structural design. It keeps internal positioning components protected against cutting chips and coolant and maintains stable operation under continuous heavy-cutting conditions. Pallet swap can be completed within seconds to lift machine utilization significantly.

Core Unit Composition

JWGRIP UPC Zero-Point Pallet with Power-Chuck is a high-efficiency all-in-one CNC clamping fixture integrating zero-point quick-change system and hydraulic / pneumatic power-chuck:

Reinforced monolithic cast-alloy pallet base

UPC-standard zero-point positioning & locking modules (undertake repeat positioning and locking tasks)

Built-in hydraulic / pneumatic power-chuck unit for radial workpiece clamping

Multi-layer labyrinth sealing assemblies

Interface ports for power medium and signal transmission

In conventional workflows, zero-point pallet and chuck are two independent assemblies. Operators manually mount the chuck onto zero-point pallet and run alignment-calibration before production. This extra assembly step  introduces cumulative tolerance and consumes large setup time. JWGRIP finishes base-and-chuck integration inside factory. All mating surfaces are processed via one-off ultra-precision grinding to eliminate end-user-faced assembly-induced tolerance.

This fixture targets circular-blank precision-machining scenarios. It can run standalone on machining centers or form flexible manufacturing cells paired with robot automatic loading-unloading. It belongs to high-end process-optimization fixture rather than basic standard clamping hardware.

Integrated-Fixture Strengths

1. Factory-completed one-piece precision matching & grinding JWGRIP finishes component matching and ultra-precision grinding in-house. Repeat positioning accuracy reaches ±0.002 mm. Customers skip on-site assembly and calibration work between zero-point base and chuck and remove corresponding error sources. According to workshop test data from JWGRIP customers, workpiece change-over time can drop by 72 % compared with discrete split-assembly solutions.

2. Full-enclosed anti-chip labyrinth-sealed construction Multi-layer labyrinth sealing protects key positioning and chuck-driving components. Cutting chips, emulsion and high-pressure coolant are blocked from invading internal moving parts. Early-wear risks caused by debris contamination get greatly reduced, adapting to long-duration heavy-cutting production environments.

3. Flexible power-drive configuration options Support hydraulic-driven or pneumatic-driven power-chuck versions to match customers’ existing machine-tool hydraulic or air-supply infrastructure. JWGRIP also provides custom-tuned clamping stroke and chuck-jaw range according to actual workpiece dimensions.

4. Native automation-ready UPC-standard interface Adopts standard UPC zero-point interface. Works cooperatively with robot grippers for automatic pallet swap. Suitable for constructing unmanned flexible production cells and realizing lights-out batch manufacturing.

5. High-rigidity cast-alloy base under heavy-cutting load Reinforced pallet base uses high-strength cast alloy and goes through stress-relief aging treatment. Pallet deformation is well-controlled under heavy-cutting load. Stable clamping rigidity guarantees consistent dimensional tolerance for mass-produced parts.

6. Batch-traceable multi-stage offline inspection Every finished unit undergoes multiple offline performance tests. Inspection reports are supplied per unit, supporting industrial-end-user quality-traceability requirements.

Quality Assurance

Every UPC Zero Point Pallet with Power Chuck goes through complete manufacturing and multi-stage inspection workflow:

1. Raw-material incoming inspection: Composition test and hardness spot-check for cast-alloy base blanks; reject defective raw-material before machining.

2. Rough-machining & aging treatment: Secondary high-temperature aging after rough CNC milling to release internal stress and lower long-term deformation risk.

3. Finish-machining & ultra-precision grinding: Zero-point positioning seating face and chuck mating surfaces are ultra-precision-ground to guarantee flatness and geometric tolerances.

4. Component assembly & sealing fitting: Assemble zero-point locking units and power-chuck assemblies; install multi-layer labyrinth-sealing parts with strictly-controlled assembly torque.

5. Offline comprehensive-performance test: Verify repeat-positioning accuracy, clamping force, sealing performance and pallet locking-unlocking actions. Non-qualified units will be disassembled and reworked.

6. Final pre-shipment inspection: Appearance check, parameter-record filing, sorting of inspection-report documents before packing.

Why Select JWGRIP Integrated UPC Pallet

Many market suppliers offer ordinary zero-point pallets or standalone power chucks separately, yet few deliver pre-assembled complete UPC-integrated pallet units.

As an experienced fixture manufacturer, JWGRIP R&D team keeps close communication with front-line process engineers from machining workshops. Product iterations originate from real-world workshop pain-points instead of purely theoretical drawing simulation:

1. In-house high-precision pre-assembly capability: Customers receive ready-to-run fixtures without complicated on-site assembly and calibration work.

2. Custom-solution capability: Beyond standard models, JWGRIP adjusts clamping-range, drive-mode and interface dimensions according to customer-specific machine-tool and workpiece requirements.

3. Strict full-process quality-control: Corresponding inspection check-points exist for every production phase; finished-goods must pass comprehensive offline tests before shipment.

4. Professional technical support: Fixture engineers provide selection guidance, installation suggestions and hydraulic / pneumatic-loop consultation. Remote-video technical support is available when application problems occur.

5. Clear delivery management: Standard-model lead-time:14-20 working days. Sales engineers confirm exact timeline for custom orders before formal order confirmation.

Parameter Guidance

When selecting JWGRIP UPC Zero-Point Pallet with Power-Chuck, confirm key parameters below to avoid specification mismatch:

1. Workpiece requirements: Maximum / minimum clamping diameter of round workpieces, workpiece weight and actual cutting-load; confirm required chuck clamping-range.

2. Machine-tool conditions: Confirm whether on-site equipment supports hydraulic-supply or pneumatic-supply; select matching power-drive type for power-chuck.

3. Zero-point-base interface: Verify existing zero-point-base uses UPC-standard interface. Submit dimension drawings for custom-modification if non-standard base is deployed.

4. Automation-demand assessment: Confirm whether robot-driven automatic-pallet-swap is required. JWGRIP adjusts pallet auxiliary-positioning structure accordingly.

5. Working-environment evaluation: For heavy-cutting and high-chip-generation conditions, enhanced sealing configuration can be selected to extend service life.

Technical Specification

Even high-precision JWGRIP UPC integrated pallet will suffer performance degradation without correct maintenance. Follow these guidelines to sustain stable accuracy and extend service life:

1. Before pallet locking: Wipe zero-point positioning seating surface clean with lint-free cloth. No chips, coolant residues or foreign particles are allowed on positioning surfaces. Foreign contaminants may cause permanent positioning-accuracy loss.

2. Power-supply-system check: For hydraulic-version units, keep hydraulic-oil clean; for pneumatic-version units, guarantee dry filtered compressed-air. Impure medium accelerates internal-component wear.

3. Sealing-condition periodic inspection: Observe labyrinth-sealing status regularly. Stop equipment immediately if coolant leakage occurs and inspect sealing components; replace damaged sealing parts timely.

4. Prohibit overload cutting: Never exceed rated clamping-force and cutting-load of the pallet. Overload will trigger pallet deformation or chuck-jaw damage.

5. Periodic accuracy-recheck: Run repeat-position-accuracy inspection after long-term heavy-load production. Arrange maintenance once accuracy drifts beyond allowable tolerance.

6. Long-term idle-storage rule: Clean unit thoroughly, apply anti-rust oil and store within dry environment if the pallet will sit unused for extended periods.

Packaging & Shipment

Packaging: Export-grade shock-proof case with foam inner buffer. Special protective treatment for precision positioning-seating surfaces against collision and moisture during transit.

Standard lead-time:14-20 working days. Partial standard SKUs are kept in-stock for expedited delivery.

After-Sales Support

Warranty policy: 12-month warranty covers manufacturing-induced defects. Man-made collision damage, overload-caused failure, improper-maintenance faults and normal-wear consumable-parts are excluded from warranty scope.

Technical resources: Operation manuals and inspection-report templates are provided. Paid remote technical-support service is available for bulk-volume-order projects.

Custom-modification service: Support drive-mode adjustment, clamping-range modification and zero-point-interface rework.

Sample evaluation: Evaluation sample can be arranged; buyer shall bear sample-related freight cost.

FAQ

Q1: Can UPC Zero Point Pallet with Power Chuck work with my existing zero-point base?

A1: Standard version adopts UPC zero-point interface. Direct installation is supported if your existing base complies with UPC-standard. If non-standard zero-point-base is used, send dimension drawings; custom-interface modification service is available.

Q2: Which version should I pick: hydraulic-driven or pneumatic-driven?

A2: Hydraulic-driven power-chuck delivers larger clamping-force and suits heavy-cutting scenarios. Pneumatic-driven fits light-to-medium-cutting applications. Meanwhile check available power-source on-your machine-tool. JWGRIP technical engineers can provide further suggestions after receiving your processing-condition information.

Q3: What factors lead to positioning-accuracy deviation after long-time operation?

A3: Main possible root-causes: ① Chips or foreign particles remain on zero-point positioning-seating surfaces; ② Sealing failure allows coolant and chips to invade internal assemblies; ③ Long-term overload-cutting brings pallet-base deformation. Please perform regular cleaning and inspection following maintenance guidance.

Q4: What items are covered under the warranty of JWGRIP UPC Zero-Point Pallet with Power-Chuck?

A4: We provide 12-month warranty for manufacturing defects. Damage caused by man-made collision, overload operation, improper maintenance and consumption of normal-wear spare-parts are not included in warranty coverage.

Q5: Can I replace chuck-jaw range of existing UPC pallet on-site?

A5: On-site jaw replacement is allowed for standard-model within original-designed clamping-range. If you intend to expand clamping-range beyond original-specification, please consult JWGRIP technical-team in advance. Blind on-site modification may bring insufficient clamping-force and potential safety hazards.

Procurement Decision Insight

Many workshops choose to buy zero-point pallets and power-chucks separately for lower apparent upfront cost. However, on-site assembly, repeated alignment, tolerance-stack-up and sealing-related failures will continuously consume labor-hours and generate scrap-part loss.

JWGRIP UPC Zero Point Pallet with Power Chuck shifts assembly-and-matching work into controlled factory environment. It eliminates most on-site fixture-commissioning pain-points for circular-part mass-production. When evaluating procurement cost, factories shall take setup-time cost, scrap-loss and later-stage maintenance expense into full-lifecycle assessment rather than only comparing hardware price tags. This integrated solution brings higher comprehensive return for workshops with frequent batch-change-over and heavy-cutting circular-part orders.
