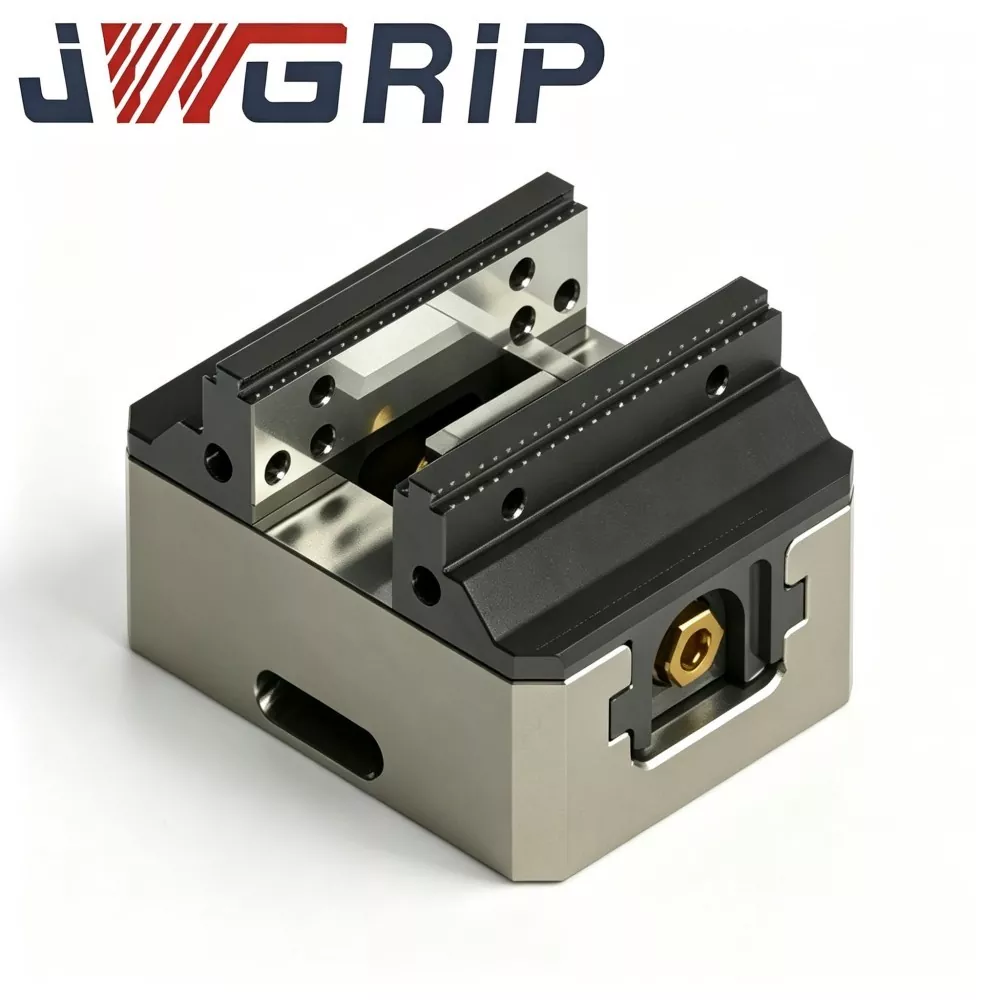

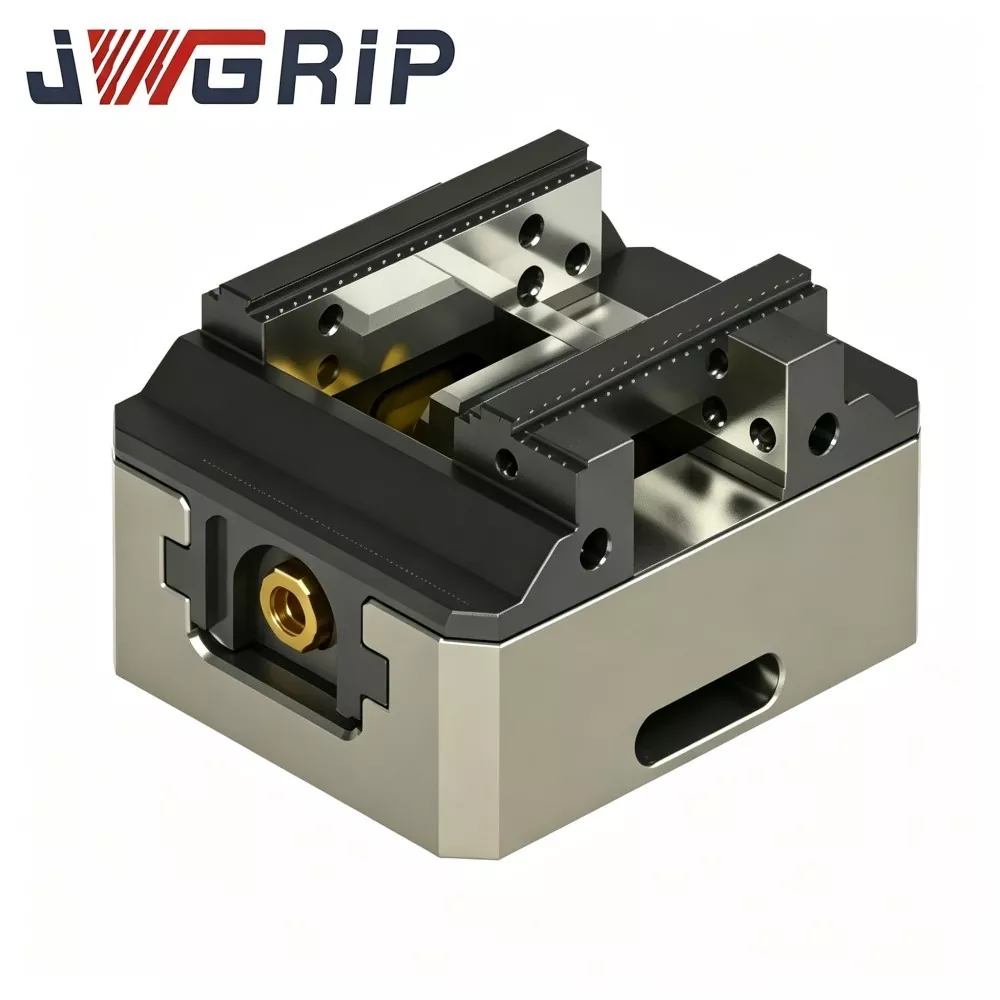

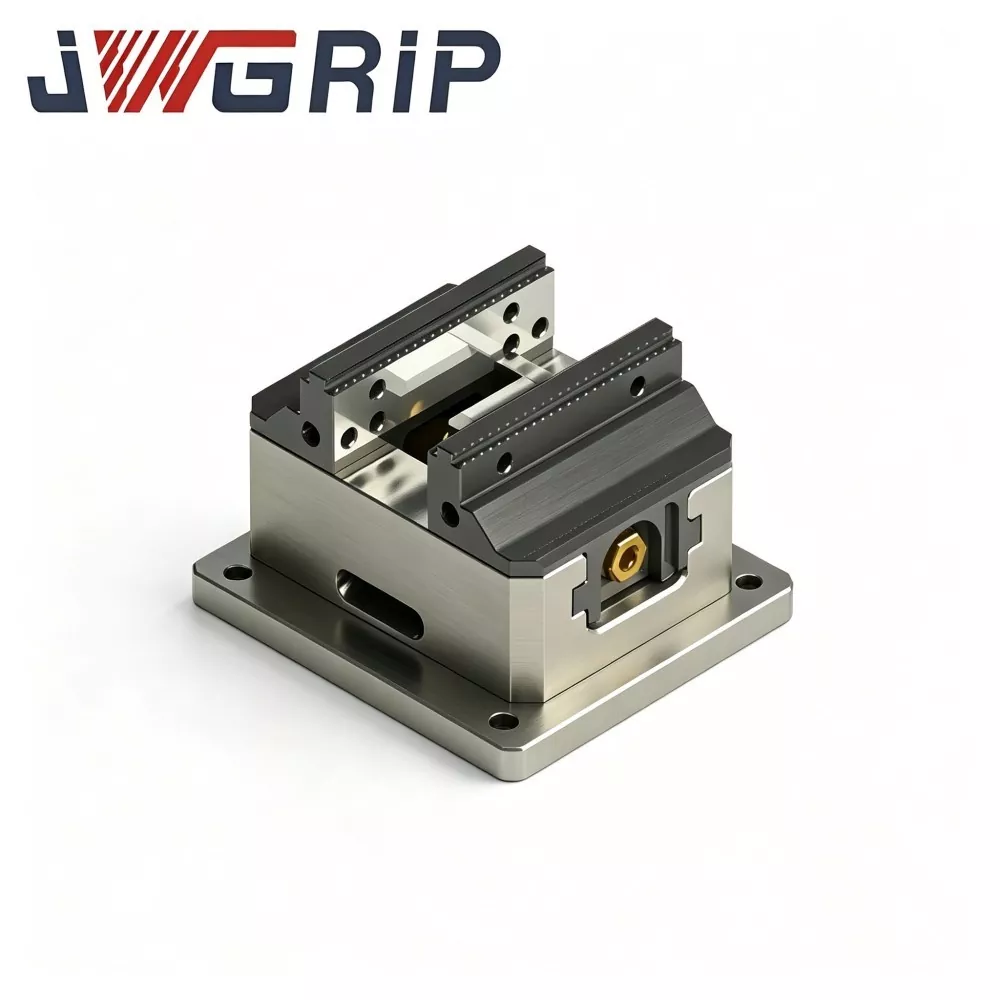

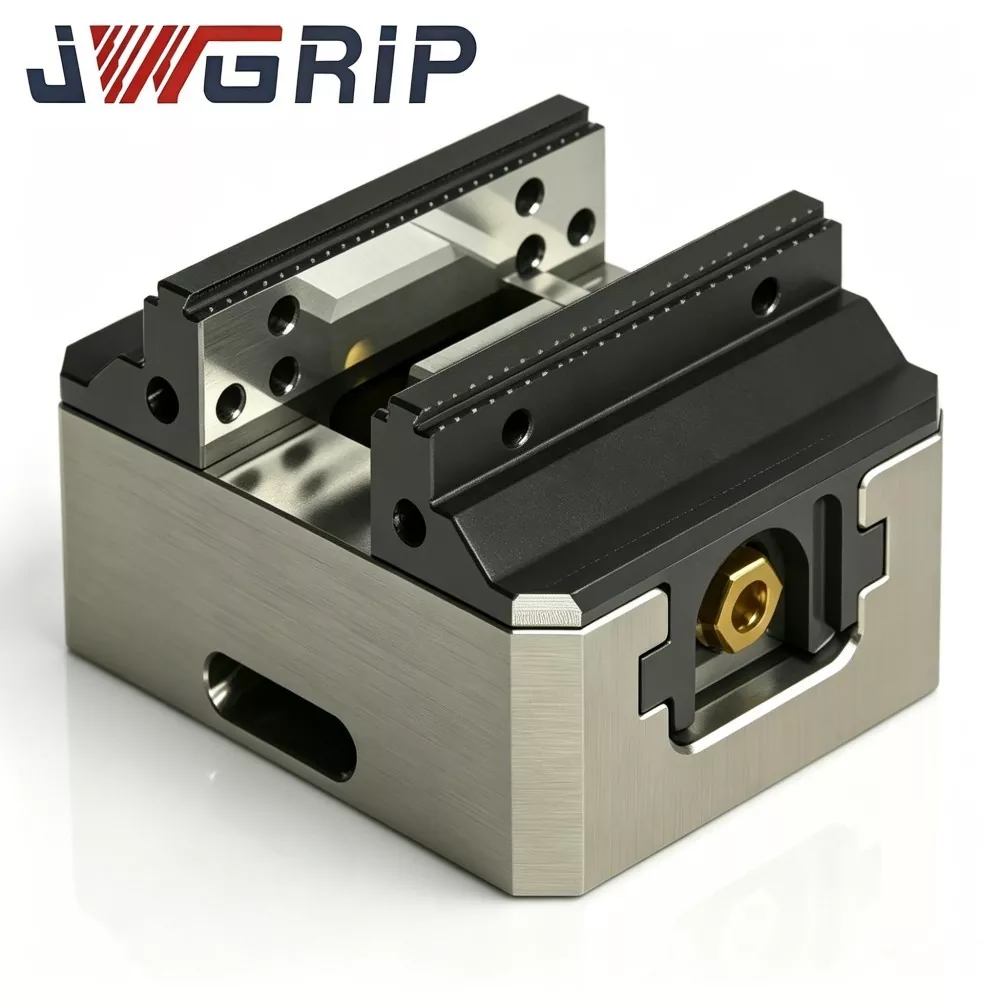

Compact High Precision Self-Centering Zero Point Vise with Hard Jaws

This high-performance self-centering zero point vise features fully hardened steel hard jaws and an all-in-one monolithic structure finished with factory precision grinding and integral calibration. It delivers high-precision automatic centering and zero-offset positioning with a space-saving compact layout, effectively optimizing machine table utilization. The hardened jaws undergo strict quenching treatment, offering outstanding durability and stable clamping accuracy during long-term repeated cutting cycles.

Adopting integral factory assembly and unified calibration design, it eliminates repetitive on-site alignment and debugging work, greatly simplifying workshop setup procedures. Compatible with CNC milling machines and 5-axis precision machining centers, Compact High Precision Self-Centering Zero Point Vise with Hard Jaws support both high-mix-low-volume flexible production and batch mass processing of small symmetrical parts. It can also dock with automatic pallet changing systems to realize fully automated lights-out manufacturing for modern digital workshops, serving as an efficient and upgraded standard fixture for modern precision processing scenarios.

Product Core Definition

Compact High-Precision Self-Centering Zero-Point Vise with Hard Jaws is an integrated high-precision CNC fixture combining zero-point quick-change, automatic self-centering, and hardened hard-jaw clamping. It is specially designed for high-speed mass finishing of small precision parts and symmetrical components.

It solves traditional vise pain points such as:

Manual alignment errors

Time-consuming setup

Low rigidity

Inability to adapt to automated production lines

Traditional ordinary vises require manual dial indicator alignment for each clamping, resulting in long debugging time and batch dimensional deviation. Common self-centering vises lack a zero-point benchmark, requiring re-calibration after each change-over and causing long machine idle time. Soft-jaw vises suffer insufficient clamping rigidity, leading to workpiece sliding and vibration during cutting, failing to meet mass production precision requirements.

This compact zero-point self-centering vise adopts an ultra-compact integrated structure to save machine travel space, enabling multi-station dense clamping. Overall quenched hardened steel hard jaws deliver ultra-high wear resistance and clamping rigidity. The built-in synchronous self-centering mechanism ensures symmetrical jaw feeding and automatic workpiece centering without manual correction. The bottom integrated zero-point interface supports rapid docking with all standard zero-point chucks and pallets, realizing second-level quick change. It is widely applied in 3C electronics, medical precision parts, and micro mold processing, greatly improving machining efficiency and batch consistency.

Structural Design

The vise consists of the following key components:

①　Integrated stress-relieved alloy steel body

②　Synchronous self-centering transmission mechanism

③　Fully quenched hard steel jaws

④　Zero-point positioning base

⑤　ustproof sealing system

⑥　Fine locking components

The integrated compact structure eliminates redundant volume and maximizes machine effective travel. The vise body undergoes professional aging stress relief to prevent long-term deformation. Hard jaws are fully quenched and precision ground with uniform hardness and flatness for lasting clamping accuracy.

Working Principle

1. Automatic self-centering:

The internal synchronous transmission system drives dual jaws to feed symmetrically. Workpieces are automatically centered regardless of placement position, achieving micron-level centering accuracy and eliminating manual alignment errors.

2. Zero-point quick change:

The bottom standard zero-point interface locks firmly with zero-point chucks. Tooling change-over requires no re-alignment, greatly reducing machine downtime and supporting automated robot loading and unloading.

Core Product Advantages

1. Fully hardened hard-jaw technology.

HRC60-64 ultra-high hardness. Wear resistance is more than 3 times higher than ordinary jaws. Maintains stable precision under long-term high-frequency clamping and cutting impact without chipping or deformation.

2. Micron-level automatic centering.

≤0.003mm centering tolerance. Symmetrical synchronous feeding completely eliminates manual alignment errors and improves batch dimensional consistency.

3. Ultra-compact lightweight structure.

Saves machine travel space and supports multi-vise multi-station dense installation, maximizing machine utilization and mass production efficiency.

4. Integrated zero-point quick-change interface.

Enables plug-and-play fast replacement. Compatible with FMS flexible automated production lines and robot automatic handling.

5. Full sealed dustproof protection.

Isolates chips, coolant and dust, preventing transmission jamming and positioning failure. Suitable for harsh machining workshop environments with low maintenance frequency.

6. High-rigidity integrated body.

Ensures stable clamping without vibration or workpiece sliding during high-speed finishing and medium-stock cutting, improving surface finish and product yield.
7. Cost-effective bulk procurement support.

Factory direct sales and favorable bulk order discount policies meet long-term mass production demands of large workshops.

Application Scenarios

1. 3C precision component mass production: Symmetrical micro hardware structural parts requiring high consistent centering precision for high-speed milling.

2. Medical precision parts processing: High-standard symmetrical medical accessories and implant auxiliary parts, avoiding manual alignment errors to ensure medical-grade precision.

3. Micro mold and insert machining: Small mold cores and inserts, supporting multi-station intensive clamping to improve single-machine output.

4. 5-axis precision finishing: Compact structure avoids travel interference, matching frequent change-over requirements of 5-axis equipment.

5. FMS flexible automated lines: Cooperates with robot loading and unloading to realize unmanned automatic tooling switching and continuous high-frequency production.

6. High-mix low-volume precision workshops: Automatic centering and quick-change functions greatly shorten setup and debugging time for frequent product switching.

Maintenance Guidelines

1. Pre-installation cleaning: Clean the zero-point chuck surface and vise bottom datum thoroughly to eliminate chips, oil and impurities that could cause positioning deviation.

2. Mounting: Place the vise accurately on the zero-point chuck. Activate the locking mechanism and confirm firm fixation without shaking before operation.

3. Workpiece loading: Place the workpiece in the middle of the jaws arbitrarily. The dual hard jaws will automatically center and clamp symmetrically. Check clamping firmness before cutting.

4. Clamping force adjustment: Adjust clamping force according to workpiece material. Light force for thin hard workpieces; proper tightening for steel hard materials to avoid deformation or sliding.

5. Post-change-over cleaning: Clean jaw surface residues after each production change-over to prevent impurity extrusion causing workpiece deformation and positioning error.

6. Periodic maintenance: Regularly lubricate the internal synchronous transmission structure to keep feeding smooth; calibrate centering accuracy periodically.

7. Prohibited operations: Do not overload or over-stroke clamp to prevent jaw deformation and transmission structure damage.

Common Faults & Solutions

1.Fault: Inconsistent workpiece dimensional accuracy

Cause: Residual chips on jaws, transmission jamming, incomplete zero-point locking, slight jaw wear

Solution: Clean jaw surface, lubricate transmission parts, re-lock zero-point datum, replace worn jaws.

2.Fault: Workpiece sliding during cutting

Cause: Insufficient clamping force, uneven workpiece datum, zero-point surface impurities, overload clamping

Solution: Increase clamping force appropriately, clean workpiece datum, re-install and calibrate zero-point position.

3.Fault: Jamming jaw feeding and poor centering smoothness

Cause: Dust and chip intrusion, lack of lubrication, transmission gap deviation

Solution: Clean internal impurities, fill with special lubricating grease, adjust transmission clearance.

4.Fault: Declined positioning accuracy after repeated change-over

Cause: Damaged bottom datum, worn zero-point interface, vise body deformation

Solution: Protect datum surface from collision, inspect zero-point components, calibrate or replace vise timely.

Packaging

Every vise undergoes full-range precision testing with an official inspection report.Hard jaws receive anti-rust treatment.Single units are packed with pearl cotton and a hard carton.Bulk orders are packed in shockproof wooden cases with partition protection to avoid precision damage during transportation.Standard specifications are kept in stock for fast delivery.

FAQ

Q1: Can hard jaws clamp thin-wall workpieces?

A: Suitable for hard thin steel parts with adjustable clamping force to avoid deformation. Ultra-soft aluminum and copper thin walls require customized soft-jaw versions.

Q2: Is self-centering accuracy durable over time?

A: Yes. Fully hardened hard jaws and a fully sealed structure maintain ≤0.003mm centering accuracy long-term with excellent wear resistance.

Q3: Is Compact High Precision Self-Centering Zero Point Vise with Hard Jaws compatible with old zero-point systems?

A: The standard interface fits mainstream zero-point chucks and pallets universally without machine modification.

Q4: Can multiple vises be installed side by side without interference?

A: Yes. The ultra-compact design supports dense multi-station installation to maximize machine processing capacity.

Q5: Does change-over require re-alignment?

A: No. Zero manual alignment is needed. The zero-point quick-change design enables instant use after replacement, saving massive debugging time.

Bulk Purchasing & Selection Guide

This compact hard-jaw self-centering zero-point vise solves three core industry pain points:

1. Low clamping efficiency

2. Manual alignment error

3. Easy tool wear

Selection tips:

①　Select appropriate clamping stroke according to workpiece size.

②　Automated high-frequency production lines are recommended to prepare bulk inventory for stable continuous operation.

③　Factory direct sourcing with favorable bulk order discounts minimizes procurement cost.

④　The fully hardened hard-jaw version is the best choice for long-term high-frequency machining, reducing later maintenance and replacement costs.

⑤　This vise serves as an ideal upgraded fixture for precision machining workshops.
