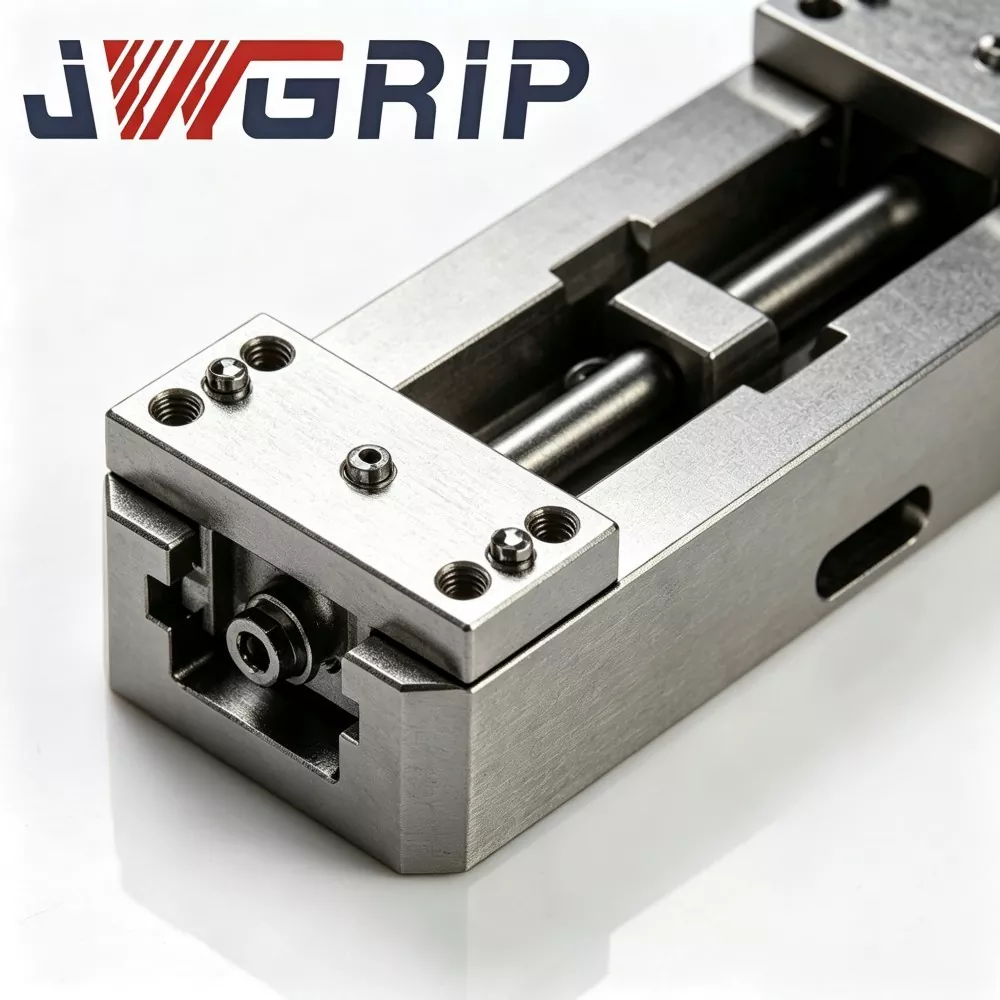

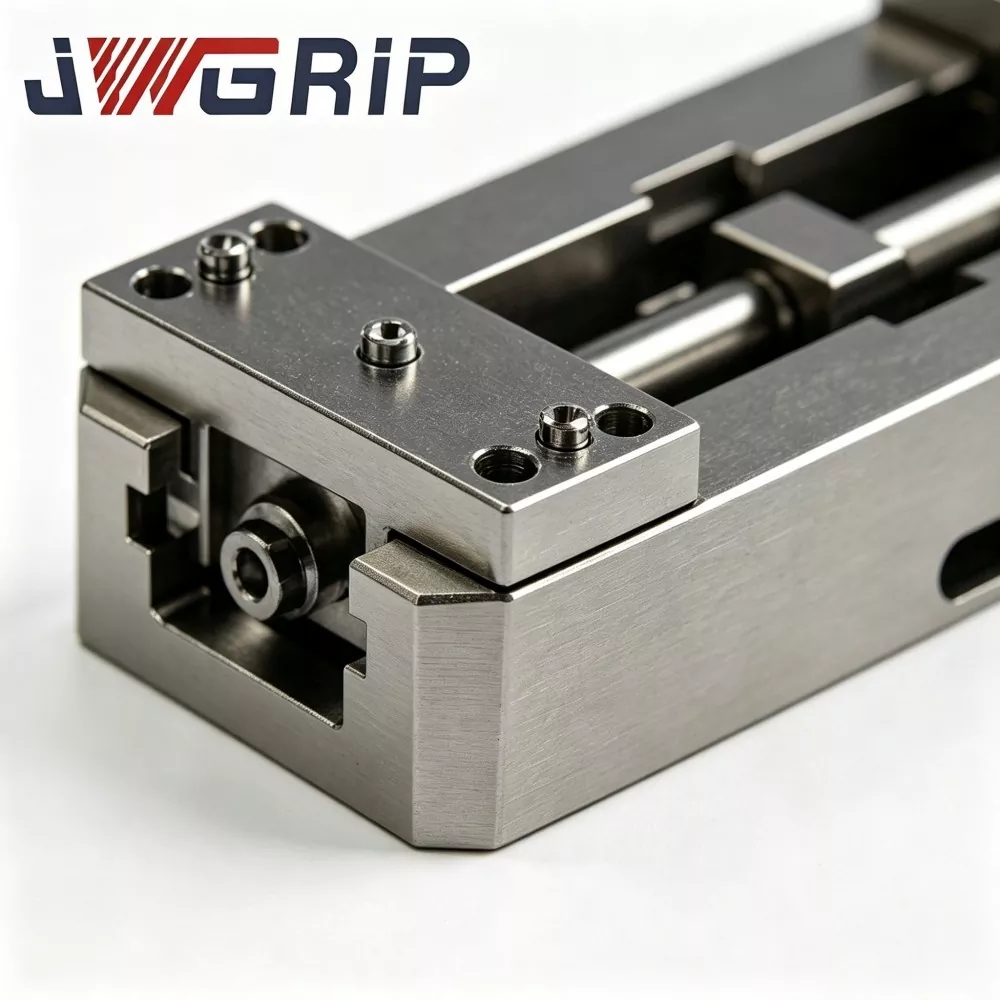

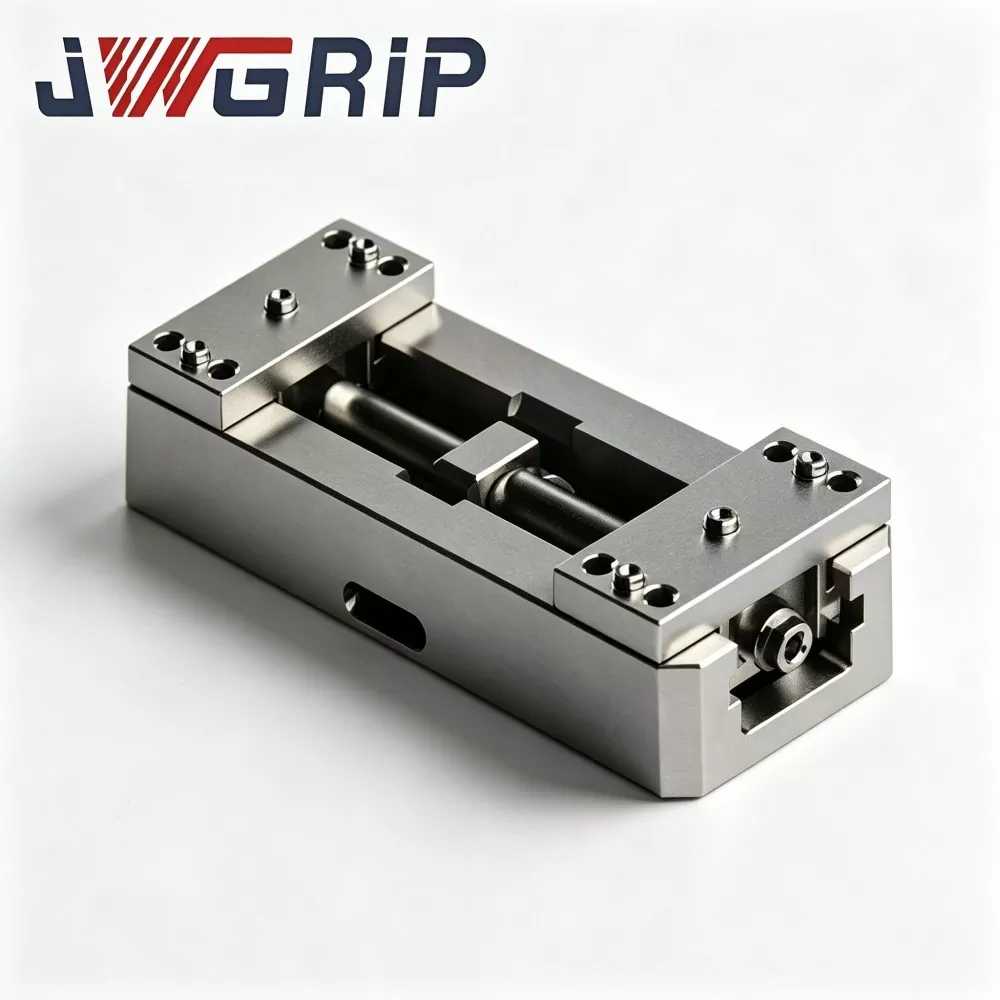

Large Travel Self-Centering Zero Point Vise with Soft Jaws for CNC Milling

Adopting advanced structural optimization technology, this large-travel self-centering zero point vise features high efficiency, durable performance and user-friendly easy-maintainable design. All core sliding components undergo strict stress-relief treatment and ultra-precision grinding processing to ensure stable operating accuracy and long service life. The flexible modifiable soft jaws support on-site profiling machining to fit various irregular and special part contours, realizing uniform force clamping without indentation or deformation for aluminum, copper and thin-wall workpieces.



Equipped with a built-in universal zero-point quick-change structure, the fixture supports offline workpiece presetting and rapid pallet swapping, effectively shortening setup time and significantly improving machine tool utilization rate. Widely applicable for mass milling production of new energy parts, 3C components, mold parts and aerospace precision parts, this high-quality Made-in-China Large Travel Self-Centering Zero Point Vise with Soft Jaws for CNC Milling provides reliable standardized and customized clamping solutions for modern multi-variety and high-efficiency industrial processing.

Industry Pain Points

Large Travel Self-Centering Zero-Point Vise with Soft Jaws for CNC Milling is a high-end precision fixture specially developed for CNC milling applications.

Milling processing challenges:

Milling features multi-direction cutting force and intermittent cutting impact

Strict requirements on fixture clamping rigidity, centering accuracy, vibration resistance, and clamping travel

Industry pain points this product solves:

1. Ordinary zero-point vises have limited clamping travel and can only process small-and-medium-size workpieces. They cannot stably clamp long profiles, large-size thin-wall housings, and irregular frame parts.

2. Standard hard-jaw vises often leave indentations on aluminum, copper, and die-cast workpieces during milling, resulting in part scrap.

3. Traditional self-centering vises lack zero-point quick-change interfaces. When milling workshops frequently switch workpieces, tooling must be disassembled and re-aligned with dial indicators, wasting a great deal of effective milling time and lowering machine utilization.

4. Some large-travel fixtures have weak transmission structures, leading to centering deviation and jaw shifting under milling cutting impact, resulting in out-of-tolerance milling dimensions and poor batch consistency.

Our solution:

This Large Travel Self-Centering Zero Point Vise with Soft Jaws for CNC Milling is optimized for milling pain points:

①　Expands clamping travel for large-size workpiece milling

②　Modifiable flexible soft jaws disperse clamping stress to prevent workpiece damage

③　Reinforced synchronous transmission resists intermittent milling vibration

④　Bottom integrated universal zero-point interface enables fast milling station change-over



Boasting high-performance, durable, and user-friendly features, it fits vertical CNC milling machines, 5-axis milling machining centers, and high-speed tapping centers. It is widely used for new-energy housing milling, 3C structural-part milling, mold insert milling, aerospace lightweight-part milling, and non-standard-component mass milling, helping machining workshops reduce setup time and defect rate, improving overall milling production capacity.

Overall Structure

The vise consists of six core components:

1. High-strength stress-relieved vise body

2. Large-travel synchronous gear-rack transmission assembly

3. Replaceable modifiable flexible soft jaws

4. Standard zero-point positioning base

5. Fully-enclosed dust-and-coolant-resistant sealing assembly

6. Fine-tuning locking mechanism



Body: The vise body is integrally formed from high-strength alloy steel with multi-pass stress-relief treatment to eliminate internal machining stress. It resists continuous milling vibration and impact without long-term body deformation.

Transmission: The large-travel synchronous transmission assembly is precision ground and matched with minimal transmission clearance to guarantee symmetrical feeding of dual soft jaws.

Jaws: High-toughness alloy soft jaws support on-site grinding and shaping to fit curved and irregular workpiece contours and enlarge clamping contact area.

Sealing: The fully-enclosed sealing structure blocks chips, coolant, and dust from entering transmission cavities, adapting to harsh milling-shop environments.

Working Principle

1. Self-centering clamping principle

The internal large-travel synchronous transmission drives dual soft jaws to move symmetrically. Workpieces are automatically centered regardless of placement position, eliminating manual alignment and dial-indicator calibration. Centering is completed before milling to remove human-caused positioning errors and ensure milling dimensional consistency. Flexible soft-jaw contact distributes clamping force evenly to avoid extrusion deformation and surface indentation of thin-wall and soft-material workpieces before milling.

2. Zero-point quick-change positioning principle

The bottom universal zero-point interface connects with zero-point chucks and pallets to achieve micron-level repeated positioning accuracy. When milling workshops switch workpieces or milling procedures, the vise does not need to be removed or re-calibrated. Tooling can be swapped in seconds, greatly reducing machine idle setup time. It supports manual change-over and robot-enabled automated FMS milling production lines.

Differentiated Core Advantages

1. Large-travel clamping for large-size milling workpieces.

Expanded clamping stroke compared with conventional zero-point vises supports long profiles, large housings, and wide irregular parts. One fixture covers multiple workpiece sizes, cutting fixture procurement costs for high-mix milling production.

2. Modifiable flexible soft jaws to avoid milling clamping damage.

Soft jaws can be ground for curved surfaces to enlarge contact area and disperse clamping stress. For thin-wall aluminum-copper workpieces, it prevents indentation and extrusion deformation, lowering milling scrap rate for high-surface-finish parts.

3. Reinforced synchronous transmission against milling vibration.

Optimized gear-rack structure improves rigidity. No jaw shifting under intermittent milling impact, maintaining stable centering accuracy and consistent milling dimensions.

4. Universal zero-point quick-change interface for faster milling change-over.

Plug-and-play zero-point base eliminates re-alignment and tool-setting for milling procedure switches, reducing machine waiting time and improving CNC mill utilization for high-mix mass milling.

5. Fully-enclosed sealing for harsh milling conditions.

Blocks chips and coolant from internal transmission to avoid jamming and precision degradation. High durability and easy-maintainable performance for milling workshops.

6. Stress-relieved vise body for long-term milling precision.

Stress-relieved body resists long-term milling vibration without deformation, retaining centering precision better than ordinary competing fixtures.

7. Factory Direct sales with Bulk Order support.

As a source factory, we eliminate middle-man markup. Discounts for bulk orders, OEM non-standard modification to satisfy diverse milling-process requirements.

Applicable Milling Industries

New-energy component milling: Battery housings, aluminum support brackets, and long-profile structural parts, preventing clamping deformation for large-size thin-wall workpieces.

3C electronic-part milling: Communication frames, laptop structural parts, and aluminum-copper die-cast small parts for consistent mass milling.

Mold-industry milling: Mold inserts, long mold accessories, and irregular mold cores, reducing setup time with zero-point quick-change for high-mix low-volume milling.

Aerospace lightweight-part milling: Aluminum-alloy thin-wall aerospace components with high-precision damage-free clamping meeting aerospace milling standards.

5-axis milling processing: Large-travel design avoids stroke interference for complex-surface part milling. Zero-point quick-change fits frequent procedure switching.

FMS automated milling lines: Robot automatic loading/unloading and multi-tooling rotation to realize unmanned continuous milling for modern smart-manufacturing workshops.

Operation Guidelines

Pre-installation cleaning: Clean zero-point chuck surface and vise bottom datum thoroughly to remove chips, coolant residue, and oil. Foreign particles cause tooling tilting and milling dimensional errors.

Mounting: Align the vise to zero-point chuck, lock zero-point mechanism, and confirm firm fixation without shaking before milling.

Workpiece loading: Place workpieces casually between soft jaws. The dual jaws automatically center and clamp. Adjust clamping force according to workpiece material: light force for thin-wall soft parts, proper tightening for hard materials.

Trial cut: Run trial-cut verification. Confirm no workpiece loosening and vibration before formal milling program execution.

Automation calibration: For automated milling lines, calibrate robot grabbing points to match vise centering center and prevent mechanical impact damage.

Daily Maintenance Rules

Daily cleaning: Clean soft-jaw clamping surfaces after daily work to remove chips and residues, avoiding clamping offset during milling.

Regular lubrication: Lubricate internal synchronous transmission with special grease every two weeks to maintain smooth jaw movement and prevent clearance increase caused by milling vibration.

Jaw care: Do not strike soft jaws violently. Grind softly for shaping. Replace worn soft jaws separately without changing the whole vise.

Datum protection: Protect bottom zero-point datum from collision and scratches. Apply anti-rust treatment when idle to preserve long-term zero-point precision.

No overloading: Do not over-stroke or overload clamping to avoid transmission-structure deformation under milling impact.

Common Faults in Milling Scenarios

Fault	Cause	Solution
Workpiece indentation or extrusion deformation after milling	Excessive clamping force; chips on soft-jaw surface; incomplete workpiece contact	Reduce clamping force; clean jaw surfaces; re-position workpiece for full contact
Poor batch milling consistency and centering deviation	Lack of lubrication in transmission; incomplete zero-point locking; uneven soft-jaw wear	Lubricate transmission; re-lock zero-point datum; replace worn soft jaws and recalibrate centering accuracy
Jamming jaw movement and jaw shifting during milling	Chips and coolant enter sealing cavity; shifted transmission clearance; insufficient lubrication	Clean internal impurities; adjust transmission clearance; replenish lubricating grease regularly
Milling datum deviation after zero-point change-over	Damaged datum surface; debris on zero-point mating face; misaligned installation	Repair datum surface; clean zero-point contact surface; re-align and lock tooling

Delivery & Packaging

Standard models are In Stock for fast global delivery.

Every unit passes full-precision inspection with test reports and anti-rust surface treatment.

Single-unit packing uses pearl cotton and carton.

Bulk-order shipments adopt shock-resistant solid-wood partitioned crates to prevent shipping-caused precision damage.

After-sales Service

12-month warranty covers manufacturing defects (excluding human mis-operation).

Free repair or spare-part replacement is provided for valid warranty claims.

Remote online technical guidance for installation and commissioning is available.

Paid on-site commissioning service can be arranged for bulk-order projects.

FAQ

Q1: Can this Large Travel Self-Centering Zero Point Vise with Soft Jaws for CNC Milling be used directly for 5-axis CNC milling?

A: Yes. Large-travel design avoids stroke interference. Zero-point quick-change fits frequent procedure switching for 5-axis milling of aluminum-copper thin-wall parts.

Q2: Do I need to replace the whole vise when soft jaws wear out?

A: No. Soft jaws are independent replaceable parts, lowering long-term maintenance cost.

Q3: Does large travel reduce milling clamping rigidity?

A: No. Thick-gauge stress-relieved alloy-steel body and reinforced transmission can bear medium milling cutting force for most precision-milling scenarios.

Q4: Is it compatible with old non-standard zero-point systems?

A: Standard version fits universal zero-point systems. Customized modification is available for non-standard interfaces.

Q5: Will thin-wall aluminum parts deform during milling clamping?

A: Deformation can be effectively avoided. Flexible soft jaws disperse clamping stress. Proper clamping-force adjustment reduces extrusion deformation risk for high-finish aluminum milling.

Procurement & Selection Suggestions

The core value of Large Travel Self-Centering Zero Point Vise with Soft Jaws for CNC Milling lies in:

1. Large-travel clamping

2. Damage-free flexible holding

3. Zero-point quick-change

4. Milling-vibration-resistant structure

These features solve clamping difficulties for large-size, thin-wall, and irregular workpieces in CNC milling.

Selection tips:

1．Select clamping stroke matching maximum workpiece dimension.

2．Choose soft-jaw configuration for aluminum-copper die-cast thin-wall parts.

3．Standard models are in stock for quick delivery.

4．Special milling-process requirements can be fulfilled by customized solutions.

5．As a Factory Direct supplier, we offer favorable factory-price discounts for bulk orders. Durable and easy-maintainable, this fixture is ideal for milling-workshop and automated-line tooling upgrades to improve yield and productivity.
