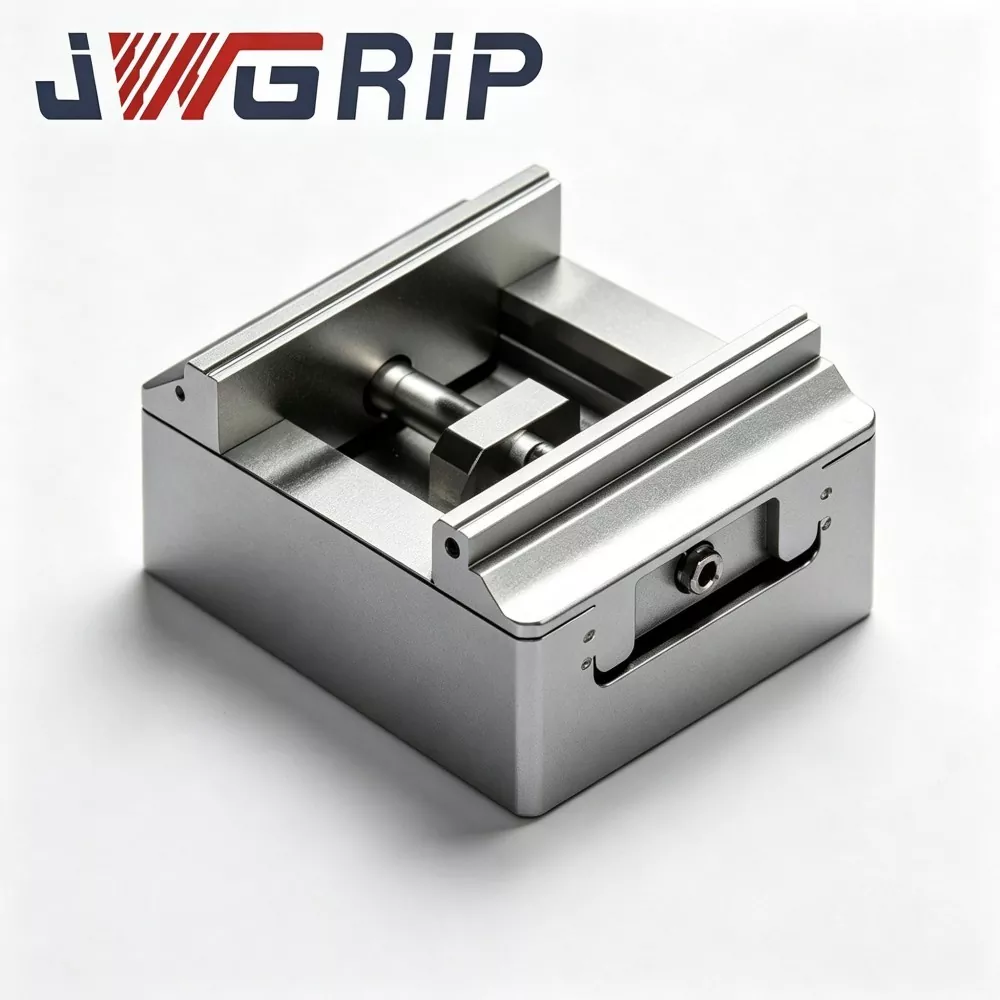

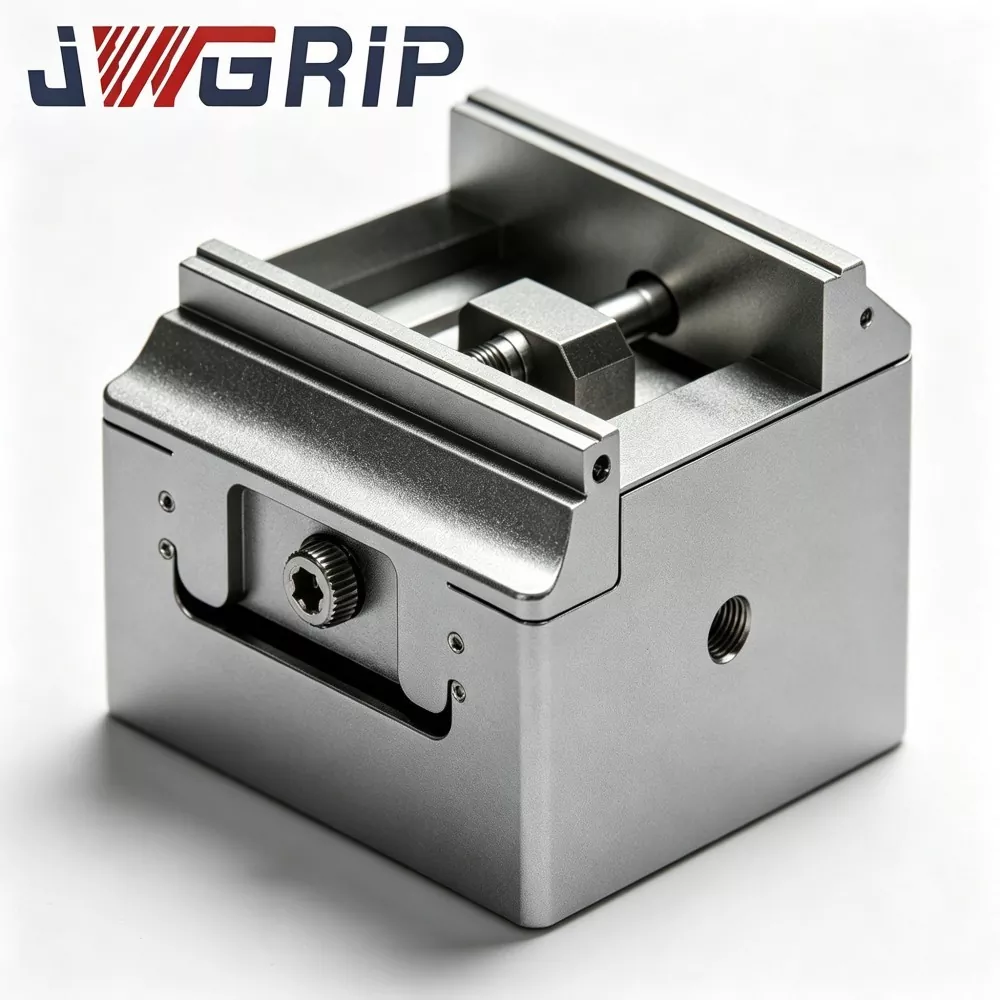

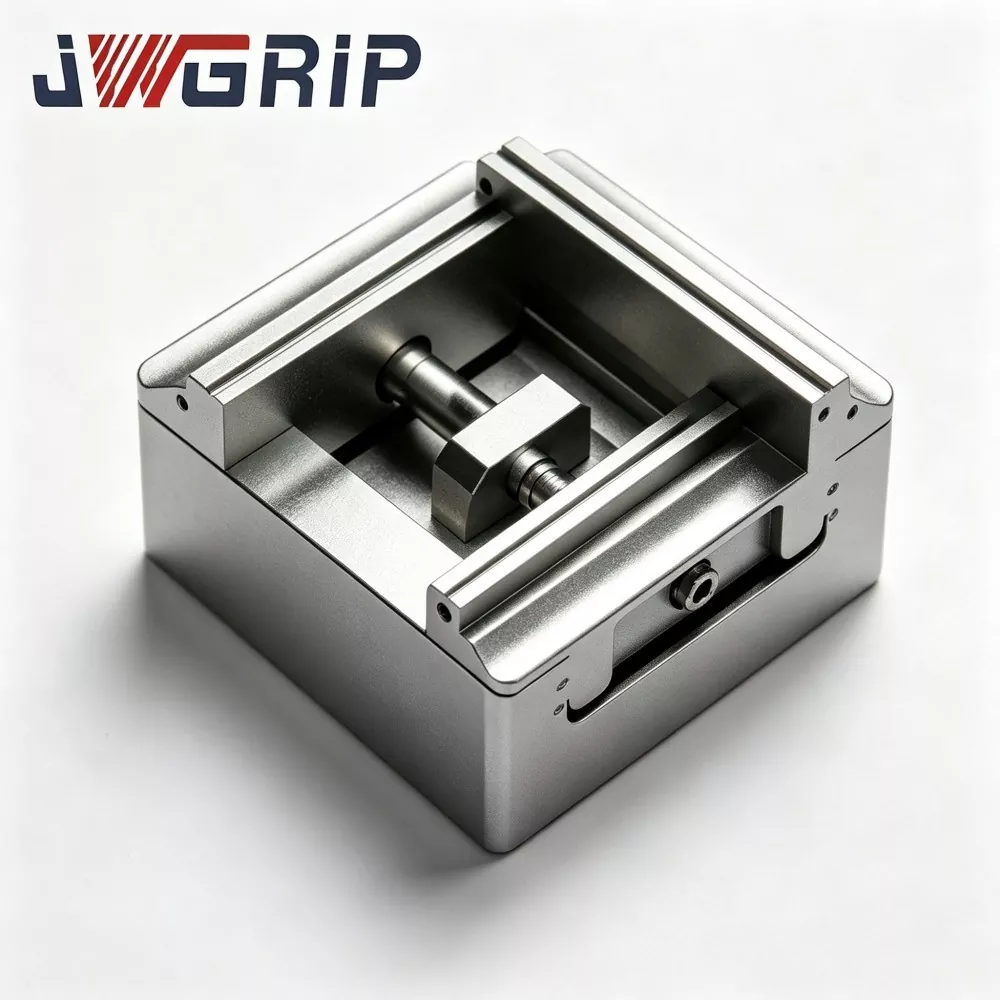

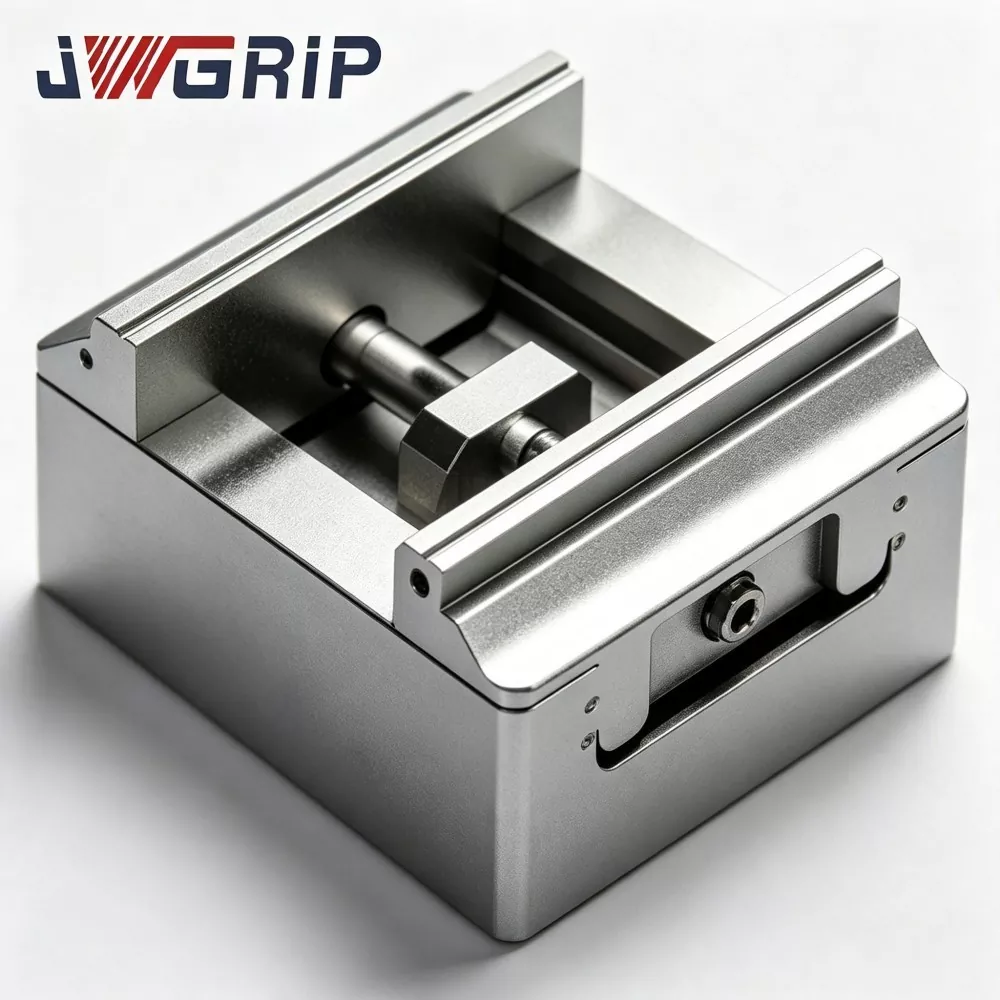

Heavy-Duty Compact Self-Centering Zero Point Vise for 5 Axis CNC Machining

This high-performance 5-axis dedicated zero point vise adopts an optimized compact body design that effectively reduces overall outline size while retaining supreme structural rigidity, perfectly solving the tool interference problem caused by bulky traditional fixtures during large-angle tilting and rotary machining.

All key load-bearing components undergo strict in-house stress-relief aging treatment and ultra-precision grinding, delivering stable clamping performance and excellent repeated positioning accuracy even under heavy cutting loads.

Equipped with a built-in standard zero-point quick-change interface, the fixture supports complete offline workpiece presetting and high-speed pallet swapping without repeated manual dial-indicator alignment, greatly improving tool change efficiency and overall workshop productivity.

Durable, high-efficiency and easy-maintainable, Heavy-Duty Compact Self-Centering Zero Point Vise for 5 Axis CNC Machining is widely applicable for 5-axis milling processing of aerospace precision parts, new energy equipment components, medical precision parts and precision mold components, providing stable, efficient and reliable zero-point clamping solutions for global high-precision machining enterprises.

The drawbacks of traditional vise grips

· Bulky outer dimensions trigger collisions with cutting tools or machine enclosures during large-angle tilting, limiting available machining space.

· Light-weight vises cannot withstand heavy cutting loads from tough alloy workpieces and bring subtle workpiece shifting.

· Without built-in zero-point interface, operators must perform repeated manual dial-indicator alignment and waste plenty of auxiliary time.

JWGRIP’s heavy-duty compact self-centering zero-point vise optimizes structural layout for reduced overall size while preserving high rigidity. Critical load-bearing components go through stress-relief aging and ultra-precision grinding in-house. Thanks to the integrated zero-point quick-change interface, operators finish offline pre-setting and fast pallet swap without repeated manual calibration.

Market Positioning

The Heavy-Duty Compact Self-Centering Zero Point Vise for 5 Axis CNC Machining is a new-generation compact heavy-duty precision fixture independently developed and manufactured by JWGRIP. It targets tool-matching challenges for high-precision 5-axis machining centers, cradle-style 5-axis machines and rotary-table-based 5-axis equipment.

Different from bulky traditional 5-axis vises and light-duty ordinary vises on the market, it combines compact footprint and heavy-duty rigidity. It occupies minimum extra space while maintaining powerful clamping capacity. The embedded standard zero-point positioning interface breaks efficiency bottlenecks caused by manual calibration and repeated adjustment.

Core Business Value

As a dedicated self-centering vise for 5-axis applications, it supports one-time positioning for repeated usage. It fully adapts to multi-angle flip, tilt and rotary cutting conditions of 5-axis machines, and effectively avoids tool interference, workpiece displacement and dimensional deviation in complex machining cycles.

Positioned within high-end precision industrial tooling segment, it rejects low-end lightweight design and focuses on high rigidity, high precision and stability. It helps precision manufacturers lift 5-axis machining yield rate, shorten tool change-over cycle and maximize utilization of high-value 5-axis CNC equipment. Backed by in-house R&D and production capacity, it supports OEM personalized modification and batch custom production, delivering one-stop tooling matching service for worldwide 5-axis machining factories.

Existing Bottlenecks

During actual 5-axis simultaneous production, structural defects of conventional fixtures heavily restrict machining efficiency and precision. Common long-standing pain-points are listed below:

1.Excessive fixture volume causes rotation interference

Most traditional 5-axis vises feature bulky bodies. When fitted on 5-axis rotary tables or cradle platforms, they interfere with machine spindles and tool magazines. Limited table rotation angles lead to incomplete workpiece machining and secondary clamping errors.

2.Insufficient rigidity triggers accuracy drift

Light-duty vises lack overall stiffness. Under overturning torque and continuous cutting force from multi-angle 5-axis cutting, fixture bodies produce micro-deformation. Internal transmission gaps increase and self-centering accuracy drifts, resulting in poor dimensional consistency and high scrap ratio for precision components.

3.No native zero-point quick-change support

Most conventional fixtures cannot connect to zero-point positioning systems. Every workpiece swap requires manual dial-indicator setup and datum adjustment. Massive non-cutting time is wasted. They fail to fit multi-variety small-batch production and modern FMS flexible automation lines.

4.Poor sealing shortens service lifespan

Cutting fluid and metal chips penetrate inner transmission structures. It brings mechanical jamming, accelerated component wear and rapid precision attenuation. Frequent maintenance raises operational cost.

5.High replacement cost for worn-out parts

Traditional integrated vises cannot replace wearing parts separately. Local damage forces full vise replacement and drives up long-term expenditure.

JWGRIP’s heavy-duty compact self-centering zero-point vise delivers targeted structural optimization: streamlined compact housing eliminates rotation interference; reinforced heavy-duty body improves rigidity; built-in zero-point interface enables fast fixture swap; fully-enclosed sealing boosts environmental resistance; detachable wearing-part design lowers maintenance cost. It fully adapts to harsh high-precision 5-axis working conditions.

Assembly Composition

 This compact heavy-duty zero-point self-centering vise consists of five core integrated modules:

· High-rigidity stress-relieved vise body

· Precision synchronous rack-and-pinion transmission set

· High-hardness anti-wear monolithic jaws

· Standard zero-point positioning base

· Fully-enclosed dust-proof & coolant-resistant sealing assembly

Working Mechanism

1.The vise body is forged from high-strength alloy steel. Multiple natural aging plus artificial stress-relieving procedures eliminate residual stress generated during forging and finish-machining. It resists strong overturning torque and dynamic cutting impact in 5-axis multi-angle rotation, avoiding deformation and displacement under long-time heavy-duty precision machining.

2.Internal synchronous transmission components go through precision paired grinding, delivering ultra-small transmission clearance and highly synchronized opening-closing movement for left-right jaws. Automatic workpiece centering removes manual fine-alignment work and human-induced positioning error.

3.High-hardness monolithic jaws provide outstanding wear-resistance and impact-resistance. They firmly hold aluminum alloy, steel and copper workpieces, sustain stable clamping force during multi-directional 5-axis cutting and prevent workpiece slip and vibration.

4.Universal zero-point positioning interface is pre-machined on the bottom base. It directly connects to mainstream zero-point systems without extra adapter plates, realizing fast fixture mounting, dismounting and positioning.

5.The fully-enclosed sealing assembly blocks metal chips, cutting fluid and workshop dust from eroding internal transmission parts, securing stable long-run transmission performance. Compact streamlined outline reduces overall fixture dimension without sacrificing rigidity, avoids structural interference during 5-axis table rotation and expands effective machining angle range for 5-axis machine tools.

Core Competitive Strengths

1. Compact streamlined housing, zero 5-axis rotation interference Different from bulky conventional heavy-duty vises, optimized compact outer dimensions allow full-angle rotation and flip on 5-axis rotary tables or cradle platforms without spindle or tool-magazine collision. It maximizes effective travel and machining angle of 5-axis machines, solves limited machining range caused by tooling interference and improves overall equipment coverage.

2. Heavy-duty forged monolithic body, superior anti-deformation rigidity High-strength alloy-steel one-piece forging plus full stress-relieving treatment. It withstands heavy overturning torque and dynamic cutting force in 5-axis multi-angle machining. No micro-deformation or gap drift during long-term heavy cutting. Stable centering accuracy and consistent multi-face dimensional tolerances greatly lower scrap rate for precision parts.

3. Built-in zero-point positioning for high-speed fixture swap, no repeated calibration Universal zero-point interface integrated at bottom, compatible with mainstream industrial zero-point positioning systems. Plug-and-play fast positioning replaces traditional manual dial-indicator calibration and repeated datum adjustment. Tool change-over time drops from tens of minutes down to several minutes. It boosts productivity for multi-variety small-batch 5-axis machining and fits automated FMS flexible production lines perfectly.

4. Ultra-high synchronous centering precision for consistent long-term machining tolerance Internal rack-and-pinion sets adopt precision paired grinding and gap-locking technology. Left-right jaws achieve absolute synchronous displacement, with centering repeat accuracy reaching 0.002 mm. Positioning datum will not drift after thousands of clamping cycles and high-intensity 5-axis rotary cutting, guaranteeing high dimensional consistency for multi-surface complex precision workpieces.

5. Fully-enclosed protective construction extends service life Monolithic full-enclosure sealing keeps cutting fluid, chips and dust away from inner transmission mechanisms. It avoids common failures including transmission jamming, component wear and precision decay seen on traditional fixtures under complex 5-axis machining environments. It delivers long service life and low-cost maintenance for processing manufacturers.

6. Multi-scene adaptability & high expandability Suitable not only for standard 5-axis simultaneous machining centers, but also for 3+2 axis intermittent machining and custom rotary-table equipment. OEM personalized modification is supported: clamping-stroke extension, special jaw custom-building, mounting-hole position adjustment, satisfying individualized tooling requirements for various workpieces and scenarios worldwide.

Typical Application Fields

1. Aerospace Precision-Part Machining For aerospace lightweight aluminum structural parts, titanium-alloy precision components and complex curved-surface workpieces with strict requirements on clamping stability and positioning accuracy. High-rigidity high-precision clamping suppresses machining vibration and workpiece displacement, meets ultra-tight tolerance standards for aerospace parts and secures batch qualification rate.

2. New-Energy Equipment Structural-Component Machining Mainly for thin-wall easily-deformed parts such as new-energy battery trays and heat-dissipation structural components. Uniform stress distribution brought by stable synchronous clamping force. Combined with zero-point fast-swap function, it satisfies mass-production and rapid-iteration processing of new-energy components.

3. Medical-Device Precision-Component Machining For medical housing parts, internal precision accessories and implant-related components requiring zero clamping deformation and high dimensional repeatability. High-precision self-centering avoids secondary clamping errors and meets strict precision production standards within medical industry.

4. Precision Mold Manufacturing Complex mold cores, mold inserts and multi-cavity mold parts need comprehensive multi-angle milling. The non-interference compact vise maximizes machine machining angle. One-clamp full-stroke machining eliminates repeated clamping errors and shortens mold development lead-time.

5. Intelligent Automated Production-Line Integration Zero-point fast positioning and dismounting function supports seamless connection with robot automatic loading & unloading. Unattended automatic tool-change of multiple fixtures can be realized. It raises overall automation level and serves as essential high-efficiency tooling for modern smart manufacturing workshops.

Installation Workflow

1.Pre-installation cleaning & inspection

Thoroughly clean mounting plane of 5-axis rotary table and bottom contact surface of vise. Remove metal chips, cutting fluid, oil and debris. Tiny foreign particles will cause vise tilting and dimensional deviation during multi-angle 5-axis cutting, hurting overall machining accuracy.

2.Fixture positioning and fastening

Align zero-point interface of vise base with machine positioning datum. Place vise steadily on worktable, align pin holes accurately. Tighten fixing bolts according to torque values specified in official manual. Confirm vise sits firmly without shake or displacement.

3.Workpiece clamping adjustment

Place workpiece in central zone of jaws; no manual fine-alignment needed. Activate synchronous clamping mechanism for automatic centering and clamping. Adjust clamping force based on workpiece material and process:

①　Medium clamping force for thin-wall precision parts to avoid deformation

②　Standard locking force for rigid metal workpieces to resist cutting impact

③　Idle rotation test & trial cut validation

After workpiece clamping, run machine idle rotation test to simulate full-angle flip and rotation movement of 5-axis table. Check for tool interference, workpiece vibration or shift. Proceed with trial cutting only after everything works normally and verify dimensional accuracy.

4.Zero-point system tuning for automation scenarios

When working with zero-point positioning system, calibrate positioning-pin accuracy to guarantee consistent repeat positioning datum. For automated production-line projects, calibrate robot grabbing center against vise centering center, preventing mechanical collision damage to fixtures and workpieces.

FAQ

Q1: Is this compact heavy-duty vise compatible with cradle-type 5-axis machining centers?

Absolutely yes. The outline structure is optimized for cradle-style 5-axis equipment with zero rotation interference. It is fully compatible with mainstream cradle 5-axis machines, vertical 5-axis machines and 3+2 axis machining equipment on market. It is a dedicated matching fixture for 5-axis precision machining.

Q2: Can worn jaws be replaced separately?

Yes. Jaws adopt independent detachable design. Separate replacement and maintenance are supported. There is no need to replace the whole vise unit, greatly reducing later-stage maintenance cost.

Q3: What advantages does it have compared with ordinary zero-point vises?

Most ordinary zero-point vises belong to light-duty type with insufficient rigidity and prone to micro-deformation under heavy cutting. Our Heavy-Duty Compact Self-Centering Zero Point Vise for 5 Axis CNC Machining uses heavy-duty integral forging plus stress-relieving construction for superior anti-deformation performance. While retaining zero-point fast-swap capability, overall rigidity and machining stability are upgraded, solving the contradiction between compact size and heavy-duty clamping of traditional fixtures.
