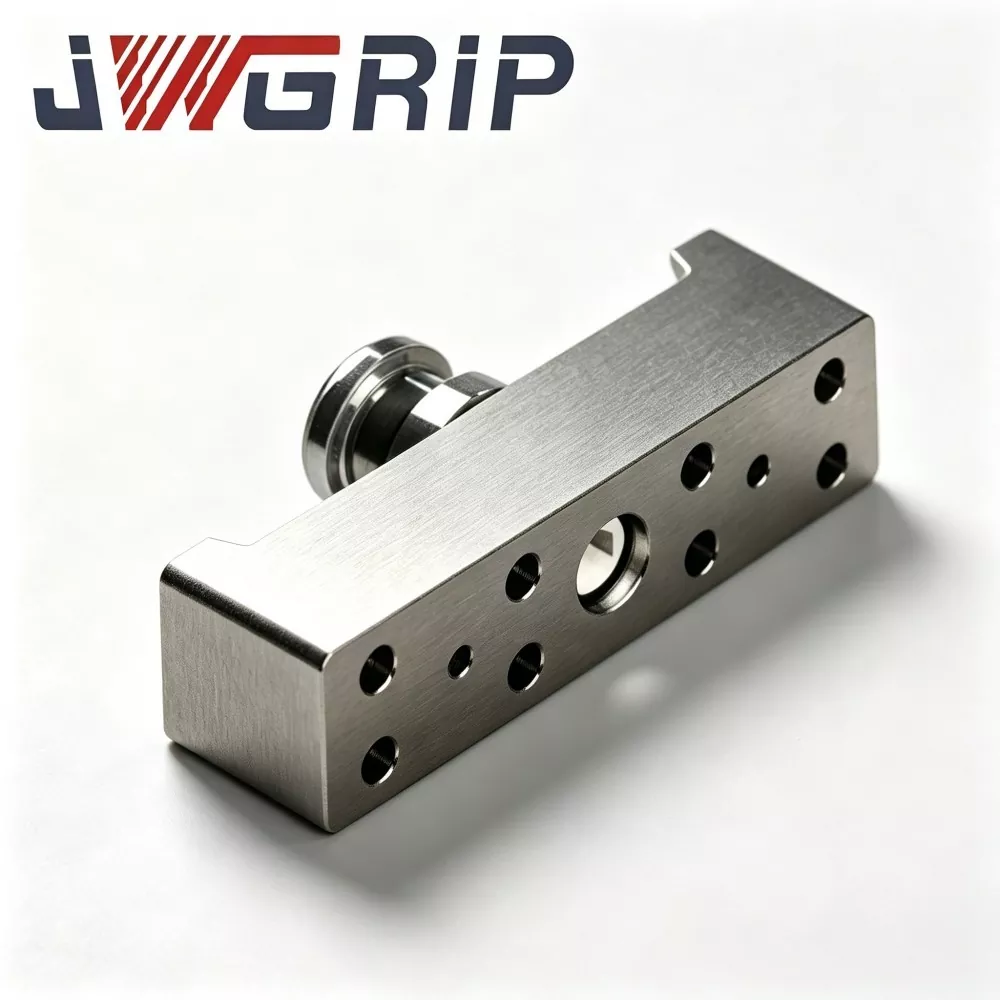

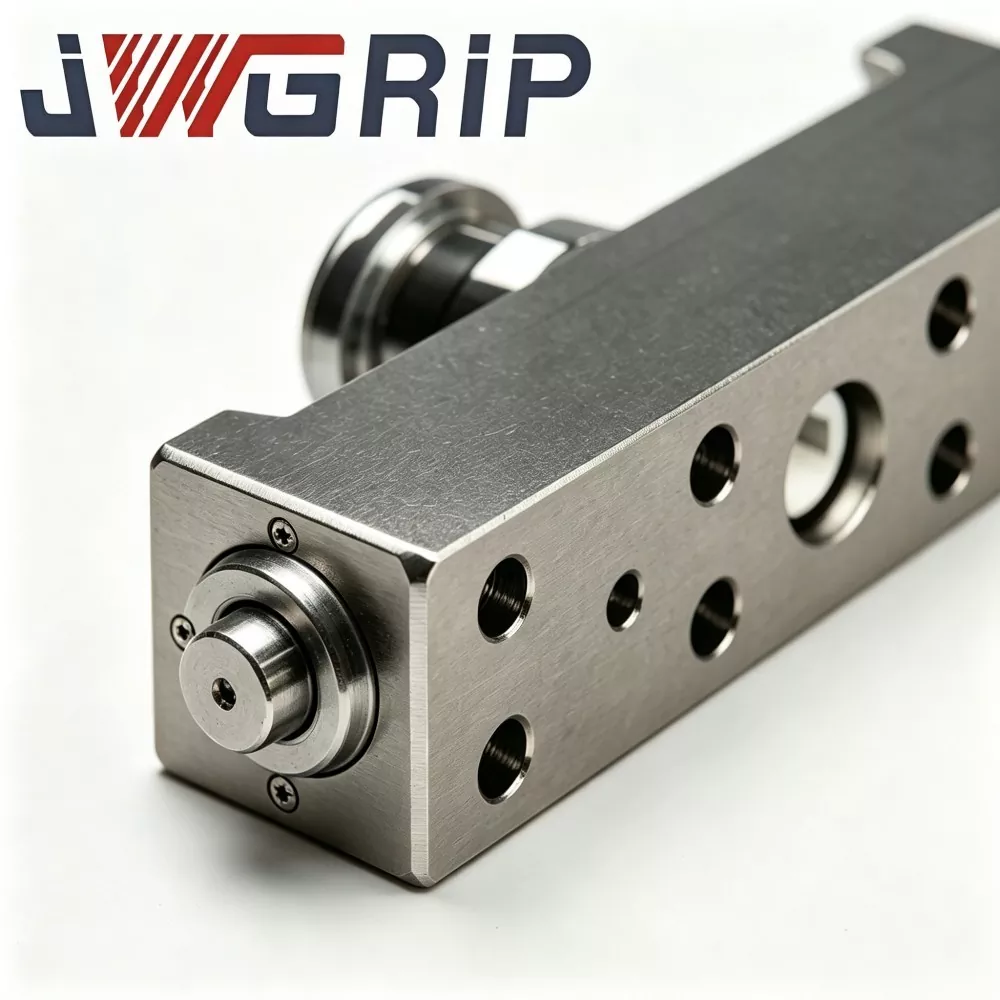

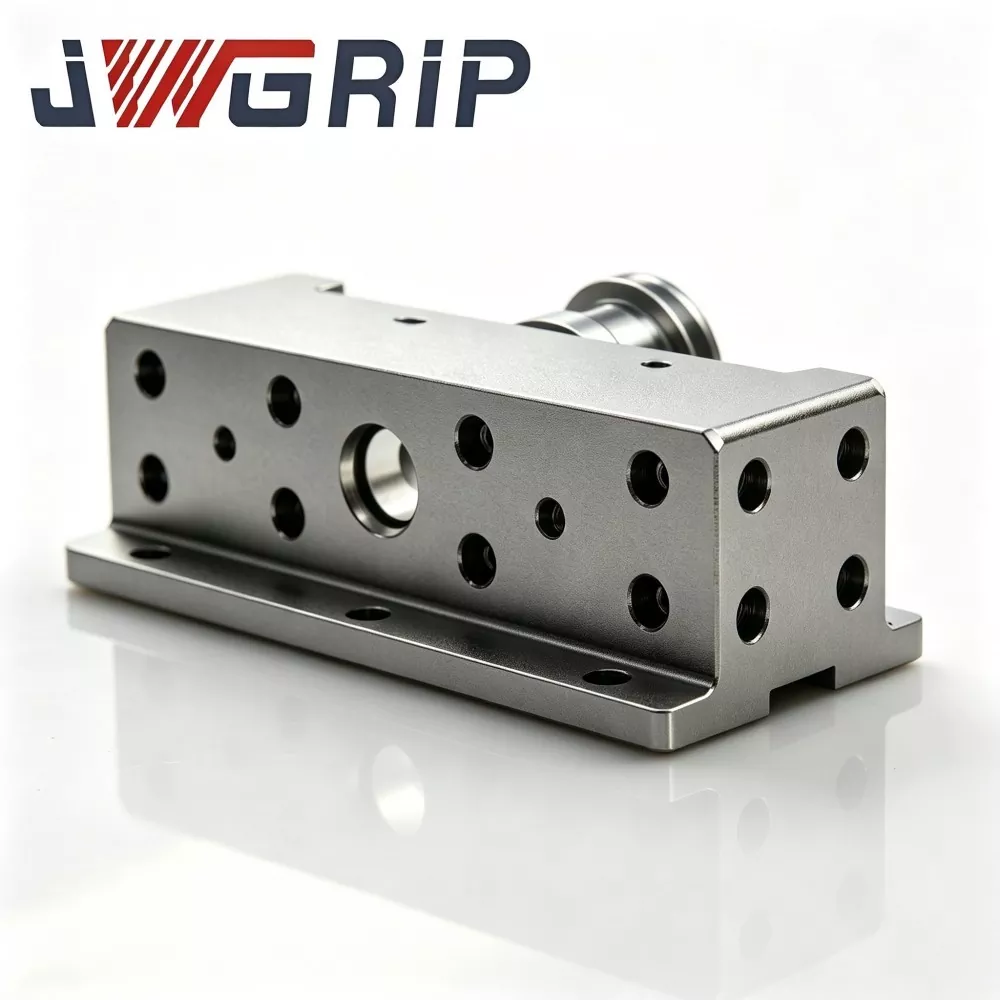

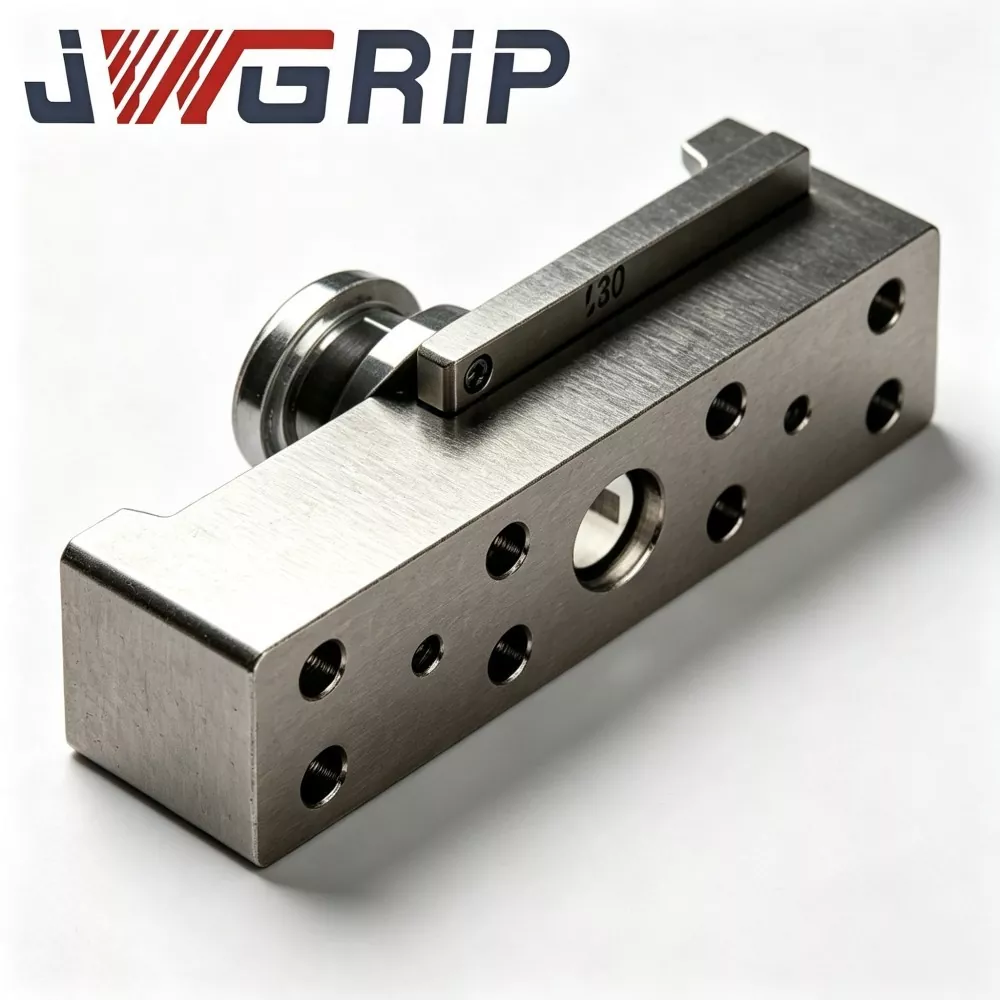

N160 Hinge Linkage Arm for Robot Quick Change Gripper

N160 Hinge Linkage Arm for Robot Quick Change Gripper adopts premium hot-forged alloy steel blank with optimized metal fiber flow and multi-stage stress-relief heat treatment process, completely avoiding metal fiber truncation and structural defects of ordinary bar stock cutting parts. Featuring excellent structural toughness and fatigue resistance, the durable linkage arm can sustain millions-level cyclic alternating loads and impact stress, fully complying with CE mechanical safety specifications. Every batch of products undergoes strict raw material spectral analysis, forging inspection, hardness testing, high-precision hole machining and sampling fatigue verification to guarantee stable long-term operating performance.

It is widely applicable for new robot end-effector assembly and worn part replacement of in-operation automated production lines. Supporting urgent spot stock procurement and large-batch project orders, as well as OEM and customized dimension & material modification, it provides reliable core transmission component solutions for global automation integrators and production line maintenance contractors.

Operating Principle

The N160 Hinge Linkage Arm is the core kinematic transmission component of N160-series robot quick-change gripper. The linear thrust output by the built-in piston of the N160 quick-change gripper acts on the hinge linkage arm. Relying on the hinge pivot point for lever conversion, the linkage arm converts the linear piston driving force into rotational swing output, driving the gripper jaw to complete opening-and-closing clamping action for workpieces.

Without qualified N160 hinge linkage arms, the N160 robot quick-change gripper will encounter the following failures in practical application:

1. Insufficient clamping output torque of gripper jaws

2. Jitter, stuck or unsmooth swing during jaw opening-closing movement

3. Premature fatigue fracture of transmission components under repeated cyclic loads

4. Declined clamping repeat accuracy caused by hinge gap wear

Core force-transmission matching relationship:

1. Hinge pivot hole: Matches the gripper body hinge shaft, serving as the rotary fulcrum of lever motion.

2. Piston force-application connection hole: Receives linear thrust from the gripper internal piston assembly.

3. Jaw driving connecting end: Transmits converted swing torque to the gripper jaw assembly, realizing workpiece clamping and releasing.

Complete force transmission workflow:

1. The internal piston of N160 quick-change gripper outputs linear thrust and applies force to the force-receiving hole of N160 hinge linkage arm.

2. The linkage arm rotates around the hinge pivot hole of the gripper main body, completing lever-ratio force conversion.

3. The driving end of the linkage arm pushes/pulls the gripper jaw assembly to swing around the rotating shaft.

4. Gripper jaws complete clamping or releasing action against target workpieces.

5. Repeated cyclic force transmission is realized in continuous production to finish batch workpiece grabbing tasks.

Common generic spare hinge parts only realize basic hinge connection function, without targeted optimization for force-transmission lever ratio, forging metallographic structure and anti-fatigue performance for N160 quick-change gripper working conditions. Under heavy-duty frequent-cycle production conditions, they are prone to pivot hole wear, local stress concentration, metal fatigue cracking, which will lead to the failure of the whole quick-change gripper.

Drawing on abundant field service experience of N160-series quick-change gripper maintenance projects, JWGRIP optimizes the lever-arm force-transmission ratio, metal fiber flow and stress-relief process specially for N160 Hinge Linkage Arm, which can bear high cyclic alternating load in the process of repeated clamping, and avoid early failure of key transmission parts of the quick-change gripper.

Practical Pain-Point Analysis

1. Short service life of ordinary cutting-processed hinge rocker spare parts Conventional bar-stock cutting hinge parts have truncated internal metal fiber, poor fatigue resistance. Under millions of clamping cycles, crack or fracture failure occurs easily, leading to frequent shutdown for replacement of N160 quick-change gripper, and sharp drop of overall equipment efficiency OEE.

2. Jitter and stuck fault of gripper jaws caused by insufficient machining precision of hinge holes Uncontrolled tolerance of hinge pivot hole and piston force-application hole of low-quality linkage arm brings excessive assembly gap or assembly interference. It will result in jitter, clamping lag and jaw stuck failure in the opening-closing movement of the quick-change gripper.

3. Hidden risk of fracture under heavy-load impact clamping When grabbing heavy-weight workpieces, the hinge linkage arm bears large instantaneous impact load. Non-hot-forged ordinary parts are prone to brittle fracture, which may cause workpiece dropping and on-site safety accidents.

4. Clamping repeat positioning accuracy drift caused by accelerated hinge hole wear Under long-term alternating load, the hinge hole of inferior linkage arm suffers rapid abrasive wear, the hinge fit gap increases continuously, the clamping repeat accuracy of N160 quick-change gripper decreases gradually, and unstable workpiece grabbing occurs.

5. Poor universality of non-standard modified spare parts Non-standard modified hinge rocker accessories on the market cannot be fully matched with the installation datum, hole-position spacing and lever ratio of standard N160 quick-change gripper, which requires secondary modification during on-site replacement, extending equipment downtime.

JWGRIP N160 Hinge Linkage Arm solves the above-mentioned application bottlenecks through five core design measures: hot-forged integrated alloy steel forming process, multi-stage stress-relief heat-treatment, high-precision matched hinge hole machining, optimized force-transmission lever-ratio structure, CE-compliant anti-fatigue design for heavy-duty cyclic clamping.

Module Composition

JWGRIP N160 Hinge Linkage Arm for Robot Quick Change Gripper is a single-body core transmission component for N160-series quick-change gripper, and its key functional areas include seven parts:

1. Hinge pivot hole: Rotary fulcrum hole, matched with the hinge shaft of N160 quick-change gripper main body.

2. Piston force-application connecting hole: Stress-receiving position for the linear thrust output by the gripper internal piston assembly.

3. Gripper-jaw driving connecting end: Output swing torque to drive the gripper jaw assembly for opening-closing motion.

4. Main force-transmission arm body: Hot-forged alloy steel main structure, bearing complex composite stress during clamping cycles.

5. Stress-relief transition fillet: Optimized fillet structure at position of force mutation, reducing local stress concentration.

6. Positioning datum surface: Assembly reference plane, guaranteeing installation flatness and assembly precision.

7. Anti-wear reserved margin area: Structural allowance for later maintenance and slight re-grinding of datum surface.

Key Part Description

1. Hinge pivot hole High-precision finishing machining; matched with the standard hinge shaft of N160 quick-change gripper. After heat-treatment, the surface obtains good wear-resistance performance, serving as the rotary fulcrum of the whole linkage arm during opening-and-closing clamping cycles.

2. Piston force-application connecting hole Precision-machined force-receiving hole, perfectly matching the piston push-rod connecting pin of N160 quick-change gripper, efficiently transferring linear piston thrust to the linkage arm main body.

3. Gripper-jaw driving connecting end Standard dimension interface, directly connected with N160 quick-change gripper jaw assembly, converting swing torque into opening-closing movement of jaws to realize workpiece clamping and releasing.

4. Main force-transmission arm body Adopt premium hot-forged alloy steel blank, form continuous metal fiber streamline by hot forging, combined with multi-stage stress-relief aging heat-treatment. It can withstand millions-level cyclic alternating load and impact load, avoiding fatigue fracture risk.

5. Stress-relief transition fillet All sharp corners of force-bearing structure adopt large-radius transition fillet design, eliminate stress concentration points, improve anti-fatigue performance of the component under long-term repeated clamping.

6. Positioning datum surface Flat datum surface after precision grinding, ensuring assembly fitting accuracy when installed on N160 quick-change gripper body, avoiding clamping accuracy loss caused by assembly deflection.

7. Anti-wear reserved margin area Reserve reasonable machining allowance on key friction-contact surfaces, supporting slight datum finishing in later-stage maintenance and prolonging the service cycle of spare-part application.

Technical Advantages

1. Specially customized for N160-series robot quick-change gripper, fully-matched standard spare-part solution Different from general-purpose modified hinge rocker accessories on the market, N160 hinge linkage arm is developed aiming at the installation dimension, lever-ratio parameter and load characteristic of N160 quick-change gripper. No secondary modification is required for on-site replacement, greatly shortening equipment maintenance downtime.

2. Hot-forged integrated forming + multi-stage stress-relief heat-treatment, excellent anti-fatigue performance Continuous and complete metal fiber streamline is formed by hot forging, avoiding fiber truncation defect of bar-stock cutting parts. Combined with multi-stage stress-relief heat-treatment process, the component can adapt to millions of cyclic clamping work, resisting fatigue crack and fracture risk under heavy-duty alternating load.

3. High-precision hole-system & datum-surface machining, stable clamping repeat-positioning performance Hinge pivot hole, piston force-application hole and datum positioning surface adopt high-precision finishing process. The fit clearance strictly follows N160 gripper assembly specification, effectively suppressing hinge-gap wear, and maintaining stable clamping repeat accuracy after long-term cyclic work.

4. Support standard spot stock, OEM dimension and material customization capability Standard N160 hinge linkage arms are in sufficient stock for urgent maintenance replacement. We support OEM customization: adjusting hole-position size, modifying alloy-steel material grade, optimizing lever-arm force-transmission ratio, to satisfy special-condition application demands for different automation working conditions.

5. Full-process in-house manufacturing & heavy-load cyclic test validation Key-component forging, heat-treatment, precision hole-machining and finished-product inspection are completed inside JWGRIP factory. Every batch of products undergoes sampling fatigue-load simulation verification before delivery. The products have been verified by mass application on many domestic N160 quick-change gripper automation production lines.

Installation & Commissioning Essentials

1. Disassembly and cleaning of original gripper assembly Disassemble N160 quick-change gripper in accordance with maintenance manual. Thoroughly clean hinge shaft, piston connecting pin, jaw assembly and each assembly datum surface; completely remove metal chips, grease residue and foreign particles. Check whether other matching parts such as hinge shaft and pin shaft are worn, replace other wear parts together if there is obvious abrasion.

2. Installation of N160 Hinge Linkage Arm for Robot Quick Change Gripper Install the new N160 hinge linkage arm onto the gripper main-body hinge shaft. Ensure the positioning datum surface is closely fitted without tilting. Install piston connecting pin and jaw driving pin in sequence. Do not use brute-force knocking during assembly to prevent deformation of hinge hole and pin-hole surface damage.

3. Fastening and clearance check of pin-shaft components Install circlips and limit parts for each connecting pin shaft in place. Manually toggle the linkage arm to simulate swing movement; confirm that the whole hinge movement is smooth and free of jamming, stagnation and abnormal clearance shake.

4. Grease lubrication for hinge friction pairs Fill high-performance anti-wear grease at hinge pivot hole, piston force-application hole and jaw driving hinge position. Guarantee sufficient lubrication for relative-motion friction pairs, reduce abrasion in cyclic clamping work.

5. No-load dry-run test of gripper Carry out repeated no-load opening-closing test for N160 quick-change gripper under low-speed mode. Check whether jaw swing is smooth, whether there is abnormal noise or lag action, eliminate mechanical interference risk before formal production.

6. Load-simulation verification test Carry out simulated clamping test with standard load workpieces, verify clamping force and clamping repeat-positioning accuracy, and put into formal production after all indexes meet requirements.

After-Sales Support Services

1. Remote online technical guidance, covering spare-part replacement consultation, installation guidance and on-site fault troubleshooting for N160 quick-change gripper.

2. Full-set installation, disassembly and maintenance technical documentation will be provided for each purchasing order.

3. Engineering-level technical consultation for custom projects: hole-position dimension adjustment, material grade upgrading, lever-arm force-transmission-ratio modification, special installation datum customization and so on.

4. Support independent spot procurement of single-piece or batch N160 hinge linkage arm spare parts, to satisfy on-site urgent maintenance demand.

5. Warranty statement：Under correct installation and rated-load working conditions, non-consumable main-body structure of N160 hinge linkage arm enjoys 2-year warranty. Wear loss caused by normal cyclic friction is excluded from free-warranty scope. Damage induced by overload operation, improper mounting, man-made collision and beyond-spec working environment is not covered by warranty.

FAQ

Q1: Does this N160 Hinge Linkage Arm directly fit the standard N160-series robot quick-change gripper?

Yes. N160 Hinge Linkage Arm for Robot Quick Change Gripper is a standard matching spare-part for N160-series robot quick-change gripper. The installation hole-position, datum surface and lever-ratio parameter all follow the original standard specification, and can be directly replaced without secondary modification.

Q2: What is the maximum cyclic service life of hot-forged N160 hinge linkage arm?

Under rated load and correct lubrication & installation conditions, the component can reach millions-level cyclic clamping service life. The actual service life is related to on-site workpiece weight, impact degree, lubrication maintenance frequency and other working-condition factors.

Q3: What shall I do if special working-condition needs non-standard dimension or special material?

We support OEM custom service. You can provide drawing or working-condition parameters, and we can adjust hole-position size, wall-thickness structure and alloy-steel material grade according to actual demand.

Q4: Can I buy single-piece sample for maintenance test?

Yes. Standard N160 hinge linkage arms are in stock, supporting single-piece sample purchase for equipment maintenance and verification, and also supporting large-batch project order supply.

Q5: What are the key points for later-stage daily maintenance?

Focus points: Keep hinge assembly datum surface and each pin-hole fitting surface clean; regularly supplement anti-wear lubricating grease for each hinge friction pair; regularly check for abnormal play, crack or deformation of linkage arm; timely replace the hinge linkage arm once fatigue crack, obvious hole-position abrasion occurs.
