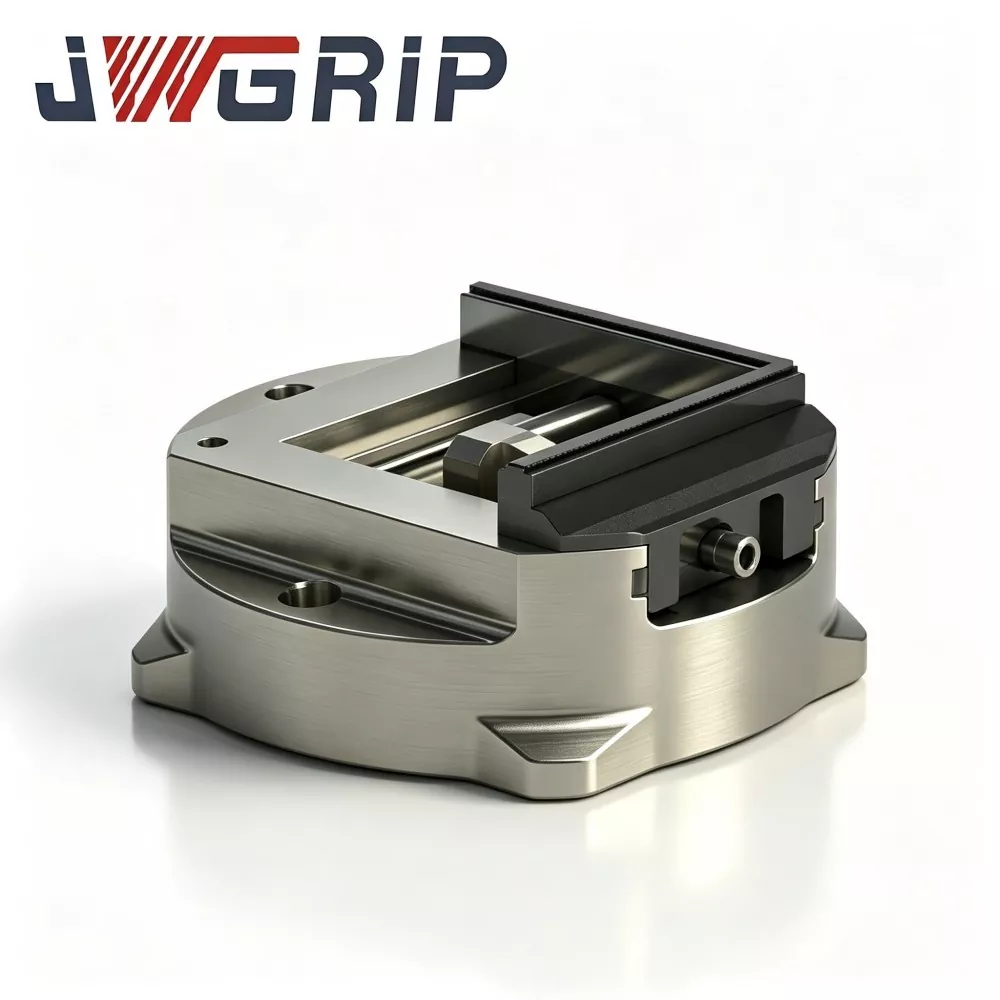

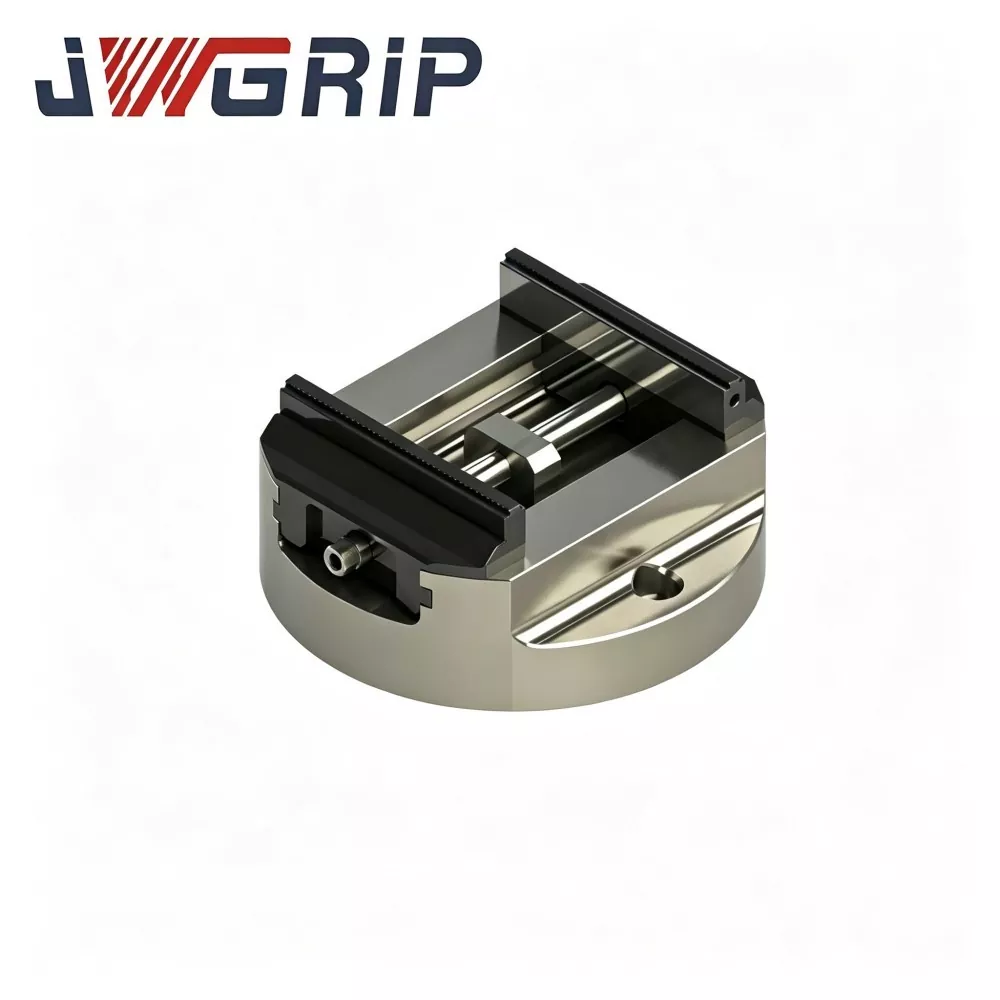

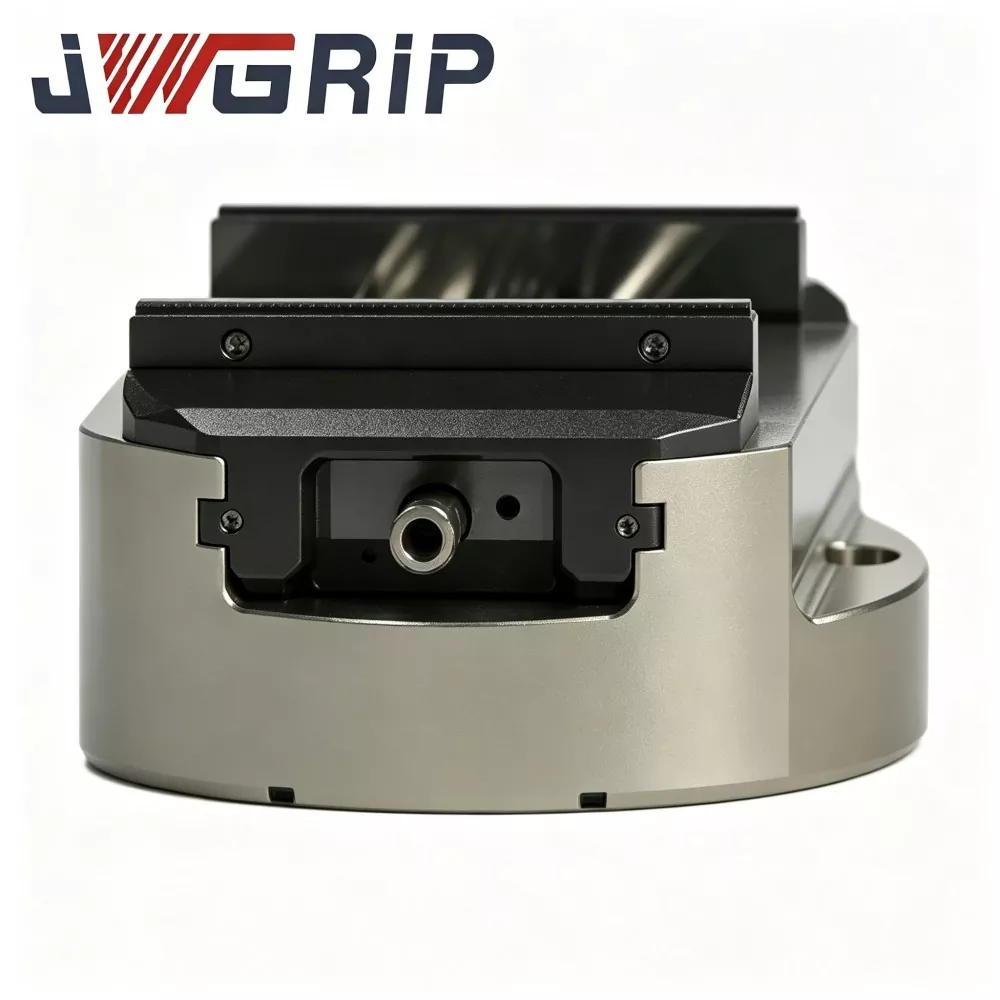

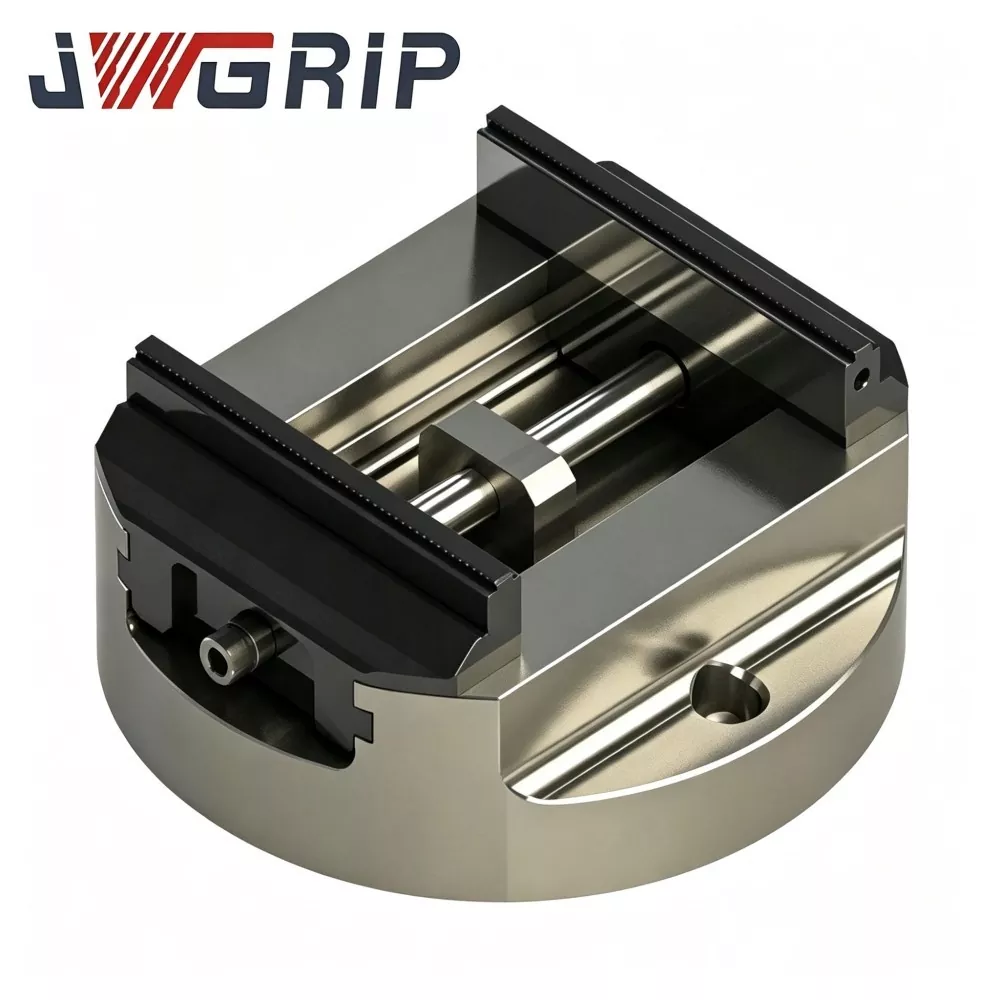

Wide Clamping Range Round Base Self-Centering Vise

This high-performance round base self-centering vise features excellent rotational positioning stability, high-efficiency workpiece setup, durable mechanical performance and easy-maintainable modular structure. The whole round base body is forged from high-strength alloy steel and undergoes professional stress-relieving aging treatment to eliminate internal residual stress, effectively avoiding structural deformation and rotational position drift under long-term heavy cutting loads.

Key rotary matching surfaces and centering transmission components are processed by ultra-precision grinding, ensuring stable coaxiality and consistent running accuracy during repeated rotary indexing and multi-angle machining. It effectively solves the common defects of traditional round base vises such as narrow clamping range, easy positioning deviation and fast surface wear.

Widely applicable to mold fabrication, automotive component processing, aerospace rotary parts, new energy circular structural parts and general multi-axis precision manufacturing, Wide Clamping Range Round Base Self-Centering Vise provides stable, repeatable and high-efficiency clamping solutions for CNC multi-face rotary milling, drilling and boring production scenarios.

Real Challenges

When running multi-axis processes on rotary tables, ordinary round-base vises create multiple bottlenecks affecting finished-part quality and workshop throughput:

1. Narrow usable clamping range Many conventional circular-base vises have limited jaw travel. Operators must swap out vises frequently for workpieces with different outer diameters, raising fixture-change-over time and lowering equipment utilization.

2. Rotary-position drift under heavy-cutting torque Under combined overturning moment and tangential cutting force, vises with insufficient base rigidity produce subtle rotary-offset. This directly impairs coaxiality and circular-runout tolerance of rotary-feature workpieces after indexing.

3. Time-consuming datum-alignment on rotary platforms Conventional round-base designs lack optimized concentric-reference datum. Installing and re-calibrating vises on rotary-tables requires repeated dial-indicator work, consuming substantial non-cutting auxiliary time.

4. Accuracy decay caused by surface wear in mass-production Long-term continuous indexing and clamping abrade mating contact surfaces. Without replaceable modular jaws, wear cannot be repaired locally; overall fixture accuracy gradually drops in high-volume production.

JWGRIP Wide-Clamping-Range Round-Base Self-Centering Vise addresses above-mentioned challenges through four core design measures: broad-travel jaw layout, stress-relieved reinforced round-base construction, datum-optimized mounting reference and fully-enclosed contamination-isolating sealing structure.

Core Design

This vise is positioned as high-reliability dedicated self-centering vise for rotary-table multi-axis equipment. Wide Clamping Range Round Base Self-Centering Vise is NOT a simple jaw-travel enlargement derived from small-size conventional round-base vises. Our R&D team re-optimizes round-base wall thickness, transition-rib layout, synchronous-transmission module dimensions and datum-reference arrangement according to real-world load characteristics of rotary-table machining.

Key design objectives:

1. Deliver wide clamping range while preserving circular-base anti-overturning rigidity

2. Reduce fixture datum-setting workload during rotary-table installation

3. Keep stable self-centering repeat-accuracy over repeated indexing and overturning moments

4. Adopt modular maintain-friendly structure to cut operational cost in continuous-production scenarios

We provide Application-Specific Custom-Design service for project-level special requirements.

● Standard product variants cover most mainstream multi-axis rotary-table processing requirements

● Engineering-driven structural adjustments are available for special rotary-table mounting dimensions, unique workpiece outer-diameter ranges and special jaw-profile demands

Assembly Composition

 JWGRIP Wide-Clamping-Range Round-Base Self-Centering Vise consists of five core assemblies:

①　Reinforced stress-relieved round-base main body

②　Wide-range synchronous rack-and-pinion transmission unit

③　Modular interchangeable jaw set

④　Datum-optimized mounting platform

⑤　Fully-enclosed chip-proof & coolant-resistant sealing assembly

Working Mechanism

1. Reinforced stress-relieved round-base main body

Integrally cast-and-forged high-strength alloy steel. Multiple stress-relief thermal cycles eliminate residual stress generated in forging and machining. Reinforced transition ribs are distributed between circular base and vise housing. This greatly improves anti-overturning deformation capacity under cutting-load indexing. It prevents relative positional shift between vise and rotary-table mounting plane under combined overturning moment plus tangential cutting force.

2. Wide-range synchronous rack-and-pinion transmission unit

Precision paired-ground rack-and-pinion components; transmission clearance is strictly controlled within micrometer-level tolerance. Driven by internal actuation, dual jaws perform fully symmetrical synchronous displacement through the whole wide clamping stroke. Workpieces placed between jaws achieve automatic centering without tedious manual fine-adjustment. Centering datum stays consistent whether clamping small-diameter blanks or medium-size ring-shaped workpieces, removing human-caused coaxiality setup errors for rotary-feature parts.

3. Modular interchangeable jaw set

Jaws adopt independent detachable installation. Multiple jaw profiles (straight clamping faces, step jaws, V-locating jaws) can be swapped according to workpiece outer contours. When jaw contact surfaces wear in long-run production, users can replace jaws separately instead of replacing the complete vise.

4. Datum-optimized mounting platform

The outer circle of round-base serves as concentric reference datum for vise centering. Mounting-hole array and locating-pin layout follow mainstream rotary-table specifications. It can be directly positioned onto rotary-table T-slot platforms, reducing demand for extra adapter plates and lowering accumulated assembly tolerance.

5. Fully-enclosed chip-proof & coolant-resistant sealing assembly

Sealing housings fully wrap synchronous-transmission chamber. They block metal chips, splashing coolant and workshop dust from entering rack-and-pinion mating surfaces, avoiding transmission jamming, premature part wear and centering-accuracy degradation caused by workshop contaminants.

Working-Mechanism Summary

After the Wide Clamping Range Round Base Self-Centering Vise is fastened onto rotary-table mounting plane via bolts and locating pins, place workpiece between two jaws. Activate internal synchronous-transmission unit; dual jaws move synchronously to finish automatic centering clamping. When rotary-table executes indexing and multi-angle turning for multi-face machining, reinforced round-base structure resists overturning moment. Full-enclosed sealing protects inner transmission parts. Modular jaws can be exchanged to match varying workpiece geometries.

Highlighted Functional Advantages

1. Broad usable clamping range without sacrificing anti-overturning rigidity

Optimized round-base reinforced-rib design delivers wide jaw travel. No frequent vise swapping when workpiece outer-diameter changes. Even with jaws fully opened, the base maintains strong anti-overturning performance under combined overturning and tangential cutting loads.

2. Consistent centering repeat-accuracy after repeated rotary indexing

Ultra-precision ground rotary-mating surfaces plus micrometer-level controlled synchronous-transmission clearance. Centering datum will not drift after multiple rotary-table indexing cycles; coaxiality and circular-runout quality of rotary-feature workpieces are guaranteed.

3. Datum-optimized round-base for faster rotary-table setup

Outer-circle concentric reference datum matches mainstream rotary-table mounting-hole layout. It cuts dial-indicator alignment workload during installation; after initial one-time calibration, subsequent batch-change-overs no longer require full re-centering operation.

4. Swap-able modular jaws for diverse workpiece contours & low-cost maintenance

 Multiple jaw profiles are interchangeable: straight-face, step-type, V-locating jaws. Worn jaws can be individually replaced. No need to discard the whole vise, reducing long-term spare-part expense for mass-production workshops.

5. Full-enclosed sealing for harsh multi-axis workshop conditions

Sealed transmission chamber keeps chips and coolant away from gear-rack pairs. It prevents jamming and progressive accuracy decay caused by workshop contaminants, extending fixture service-life under continuous indexing-production.

6. Application-Specific Custom-Design project adaptability

Standard versions satisfy most rotary-table processing requirements. Custom engineering modification is available for special rotary-table mounting dimensions, special jaw geometry and unique workpiece-diameter ranges for individual project demands.

Installation & Commissioning Process

1.Thoroughly clean rotary-table mounting plane and round-base bottom datum surface. Remove metal chips, coolant residues and oil contamination. Tiny foreign particles will create mounting offset and damage coaxiality performance after indexing.

2.Place vise onto rotary-table; align locating-pins and mounting holes. Tighten fixing bolts according to official manual torque-specification. Verify vise sits firmly without wobble.

3.Put workpiece between modular jaws. Activate self-centering clamping mechanism. Adjust clamping-force magnitude:

● Use moderate clamping-force for thin-wall circular blanks to prevent clamping-induced distortion

● Apply higher clamping-force for solid heavy-duty rotary-feature workpieces to resist cutting torque

4.Execute rotary-table idle-indexing test. Simulate real multi-angle indexing movements; check for no workpiece shift or vibration.

5.Complete trial-cut validation with test workpiece. Inspect coaxiality and circular-runout. Confirm centering-clamping performance meets engineering requirements before formal batch-production.

Maintenance Regimen

1. Daily maintenance After each production shift, clean jaw clamping faces and round-base bottom-datum surface. Remove chips and coolant residues to eliminate sources of positioning deviation.

2. Semi-monthly lubrication work Open sealing-assembly maintenance access. Inject special high-viscosity anti-wear lubricating grease into internal rack-and-pinion transmission pair. Keep jaw synchronous-movement smooth and stabilize transmission-gap status under continuous rotary-indexing production.

3. Regular wearable-part inspection Inspect jaw contact surfaces periodically. Replace modular jaws independently once scratches or wear degrade clamping quality. Do NOT keep running production with worn jaws; this will cause coaxiality errors for rotary-feature parts.

4. Quarterly datum-verification procedure Dismount vise from rotary-table every quarter. Inspect round-base bottom surface for bruising or indentation. Measure self-centering repeat-accuracy with gauges, detect subtle accuracy drift ahead of mass-production scrap incidents.

5. Long-term idle-storage protection Fully clean whole vise unit when kept out-of-service for long periods. Apply anti-rust protective coating on round-base datum and jaw working surfaces. Store in dry dust-proof environment.

6. Forbidden-operation rules Forbid over-stroke clamping and over-load workpiece holding. Never strike vise-body or jaws with heavy tools to avoid round-base deformation and inner-transmission component damage.

Packaging & Shipment

JWGRIP Wide Clamping Range Round Base Self-Centering Vise with Custom-Adaptable Jaw Design

1. Standard stocked models support fast global shipment.

2. Every unit completes full-item precision inspection before dispatch; inspection documents are enclosed inside each package.

3. Single-unit order: pearl-cotton buffer wrapping plus heavy-duty carton.

4. Bulk export orders: fumigation-free shock-resistant solid-wood crates with partition padding, protecting precision datum-surfaces against collision damage during long-distance sea-transport

5. Application-Specific Custom-Design modified orders follow mutually-negotiated lead-time.

Procurement & Selection Guidelines

Core value of JWGRIP Wide-Clamping-Range Round-Base Self-Centering Vise lies in wide jaw-travel on round-base platform, anti-overturning reinforced base, stable centering repeat-accuracy after multiple rotary indexing, interchangeable modular-jaw system and Application-Specific Custom-Design project adaptability.

 It solves multi-axis rotary-table pain-points: frequent vise-swap for varying-diameter workpieces, rotary-position drift under cutting torque, time-consuming rotary-table datum-alignment and fast jaw-wear under continuous mass-production.

Selection reminders:

1. Confirm maximum workpiece outer-diameter, reserve reasonable safety margin against vise effective clamping-range.

2. Check dimensional parameters of your existing rotary-table: mounting-hole layout, T-slot specification, to match vise round-base installation datum. Turn to custom-design service for non-standard rotary-tables.

3. Select proper jaw-profile (straight / step / V-type) according to actual workpiece outer contour; multiple-jaw-sets procurement is recommended for high-mix-part production.

4. Standard in-stock versions realize fast delivery; adopt Application-Specific Custom-Design for special mounting dimensions or special jaw-demands.

FAQ

Q1: Can this Wide Clamping Range Round Base Self-Centering Vise mount directly onto cradle-style 5-axis rotary tables?

Yes. Standard mounting-hole layout fits mainstream cradle-type rotary-table specifications. Application-Specific Custom-Design modification can be done for special non-standard cradle-table dimensions.

Q2: Do I have to replace the whole vise once jaws get worn?

No. Jaws adopt modular detachable construction. Only worn jaws require replacement. It reduces workshop overall maintenance-cost.

Q3: Does wide-clamping-range design weaken round-base anti-overturning rigidity?

No. Reinforced transition-rib structure plus multi-cycle stress-relieving treatment enhances round-base rigidity. It maintains sound anti-overturning performance even when jaws are opened to maximum stroke.

Q4: Is repeated dial-indicator centering required for every new workpiece batch?

After completing one-time datum-alignment in initial installation, relative positional relationship between vise and rotary-table stays unchanged. Subsequent batch-change-overs do NOT demand full dial-indicator re-centering; routine visual inspection is sufficient.

Q5: Is this vise fit for continuous medium-batch multi-axis automated-production?

Yes. Full-enclosed sealing plus modular replaceable-jaw design adapts to continuous multi-axis workshop operating conditions. It can cooperate with robot loading-unloading to build automated-production workflows.
